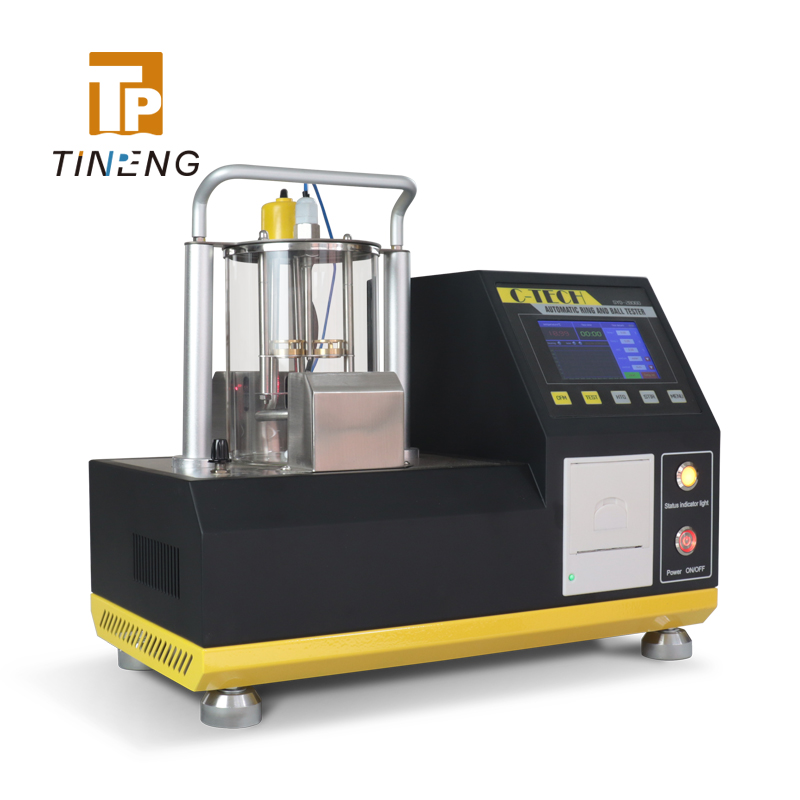

SYD-2806G
It is suitable for determining the softening point of road petroleum asphalt, polymer modified asphalt, liquid petroleum pitch, coal pitch distillation residue, emulsified pitch evaporation residue, marking coatings, and some resin products. It is the ideal instrument for asphalt manufacturing companies, highway and bridge construction companies, relative college and universities, and scientific research institutes.
Get Wholesale PriceIt is suitable for determining the softening point of road petroleum asphalt, polymer modified asphalt, liquid petroleum pitch, coal pitch distillation residue, emulsified pitch evaporation residue, marking coatings, and some resin products. It is the ideal instrument for asphalt manufacturing companies, highway and bridge construction companies, relative college and universities, and scientific research institutes.
FEATURES
· The water bath test at 5~90℃ can be selected, and the glycerol test at 35~+160℃ can also be performed;
· Adopt microcomputer control, automatic stirring, linear heating, and the heating rate maintains the standard requirement of 5℃/min;
· A laser beam sensor is used to automatically detect the softening point value of asphalt softening 25.4mm. After the test is completed, the test results are automatically displayed and printed;
· The heating rate is automatically recorded, and the heating record per minute can be queried through the query function;
· Adopt 7-inch LCD touch screen, Chinese and English bilingual operating system;
· The beaker is made of high temperature resistant glass, and the specifications and dimensions of the steel ball positioning ring and steel ball meet the standard requirements;
· Small desktop structure, the control system and the heating system are separated (one left and one right), which avoids the failure of the electronic components caused by the high temperature test of the heating system.
TECHNICAL PARAMETERS
Power supply: AC(220±10%)V, 50Hz
Temperature resolution: 0.1℃
Measuring range: When the sample softening point ≤80℃: 20℃~90℃, use distilled water for heating medium; When the sample softening point >80℃: 70℃~160℃, use glycerin as a heating medium
Heating rate: After three minutes of the beginning of the test, automatically adjust to 5 ± 0.5℃/min
Heating power: 650W
Medium stirring: Magnetic stirring, stirring speed 0-300 r/min, stepless speed adjustment
Effective volume of beaker: 1000ml
Display: LCD touch screen
Communication interface: RS-232C
Applicable ambient temperature: 15℃～35℃
Relative humidity: ≤85%
Power: <700W
Dimensions: 420mm×270mm×370mm
Weight: 12kg
