SP-6

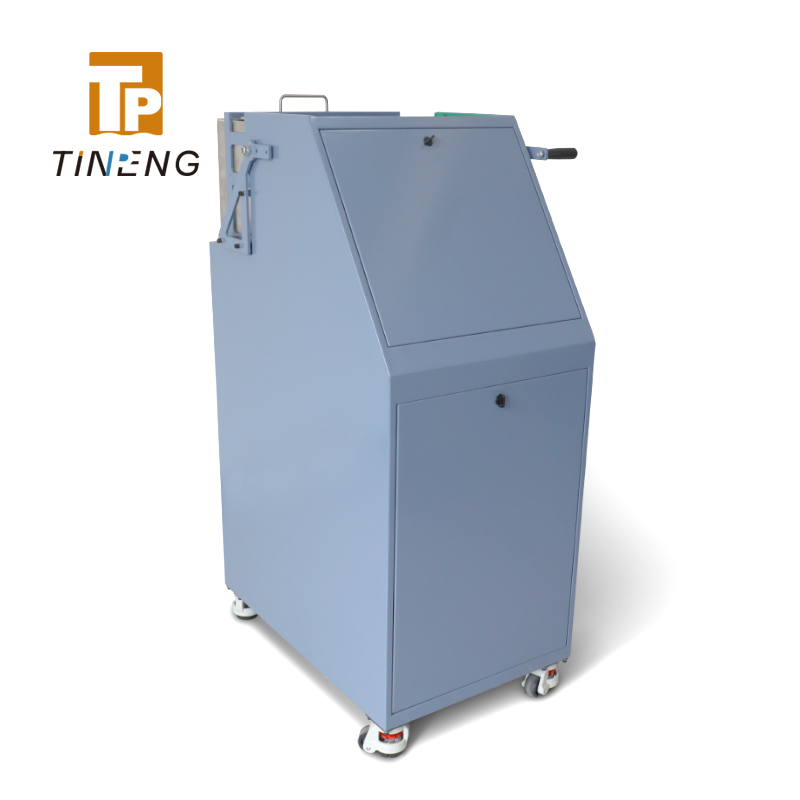

The Quadri‑Splitter efficiently divides free‑flowing materials into four representative samples in a single pass, minimizing sample loss by reducing the number of passes and manual handling.
One pass produces four 1/4 fractions.
If bulk samples need to be reduced to the quantities required for laboratory testing, each fraction can be split again:
   -Two passes yield 1/16 fractions
   -Three passes yield 1/64 fractions
A set of four representative samples is obtained at each stage.

Features:
   - Suitable for splitting coal, coke, and mineral aggregates
   - Each processing run generates four ¼ representative portions of the original sample
   - The fully enclosed structure avoids moisture loss and lowers airborne particles in the workers’ breathing area
   - Hinged access doors facilitate the inspection and cleaning of chutes
   - Complies with multiple ASTM standards


TECHNICAL PARAMETERS
   Maximum Particle Size:  0.5in (12.7mm)
   Hopper Capacity:  18.8L
   Chute Angle:  600

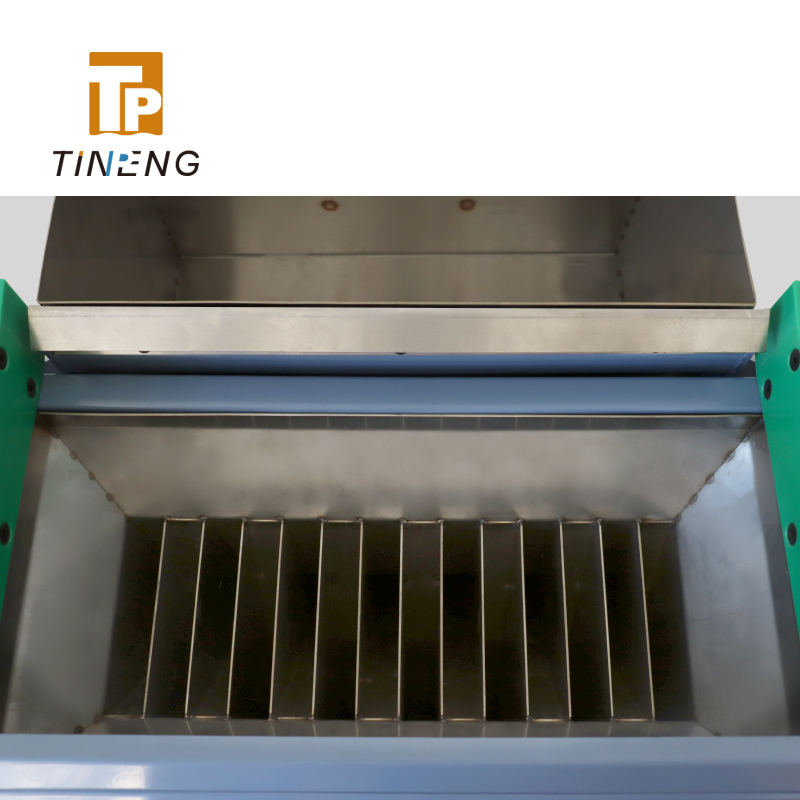

   Chute Width:    1in (25.4mm)
   Number of Chute Bars:    14
   Product Dimensions:   703mm x 520mm x 1225mm (WxDxH)
   Estimated Shipping Weight :   150kg


- One Feed Pan
- Four Sample Pans
