TPC-25X

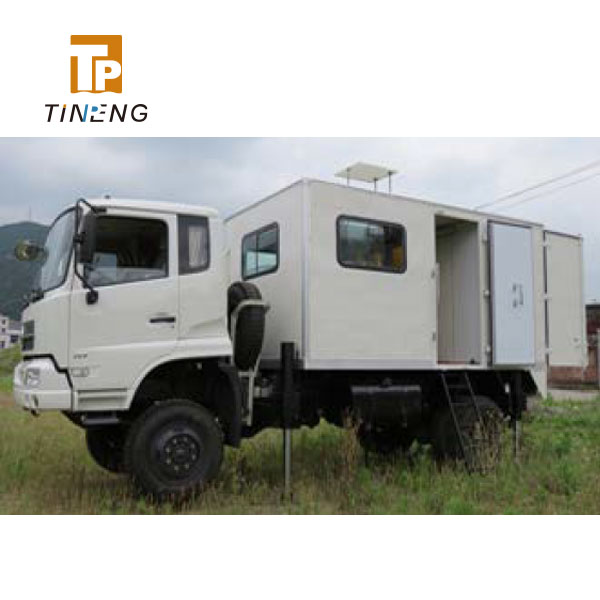

All axis 4WD chassis which is designed for off-road. Unique design of power room apart from work room. Work room equips office desk, cabinet and other facilities that make it more convenient to operate the test. Also, apart from oil tank, engine and radiating system, work room is less noisy, less vibration and less air-pollution.
Features
1. All axis 4WD chassis which is designed for off-road.
2. Unique design of power room apart from work room. Work room equips office desk, cabinet and other facilities that make it more convenient to operate the test. Also, apart from oil tank, engine and radiating system, work room is less noisy, less vibration and less air-pollution.
3. Drive power's supplied by hydraulic system to reduce oil wear and be friendly to environment.

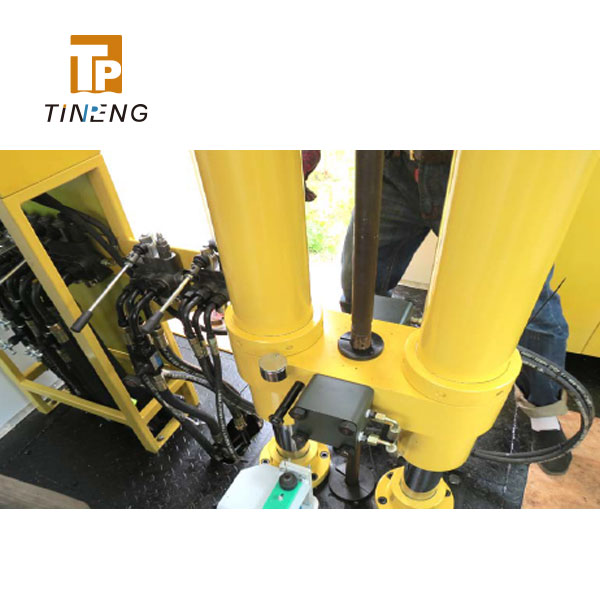

4. Inverted structure of penetration cylinder. Thus the quantity of hydraulic tube could greatly decrease and the penetration could be more stable.
5. Rods would be nipped by hydraulic penetration system. It will be a saver of time and strength while making the operation more safe and efficient.
6. Video unit mounted on rods helps you monitor the penetration process of rods.
7. With two air-condition – one in work room, one in drive room.
8. Also suitable for CPTu, Flat Dilate Test, VST(Vane Shear Test), etc.
TECHNICAL PARAMETERS
Truck: 4WD all axis chassis
Engine type: EQH16030 Dongfeng
Horse power 160
Max speed: 80KM/h
Max force: 250kN
Pull out force 280KN
Penetration stroke 1100mm
Penetration speed: 1.2±0.3m/min
Diameter of cylinder 125mm
Diameter of rod 90mm
Hydraulic power Japan engine 3TNV88-PFN
