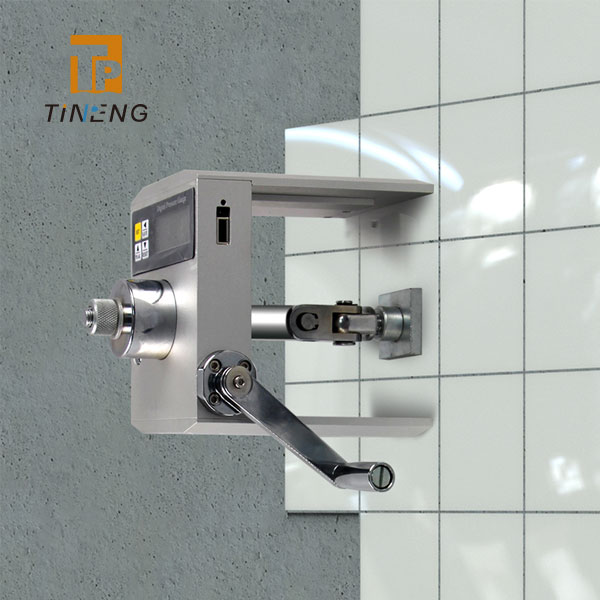

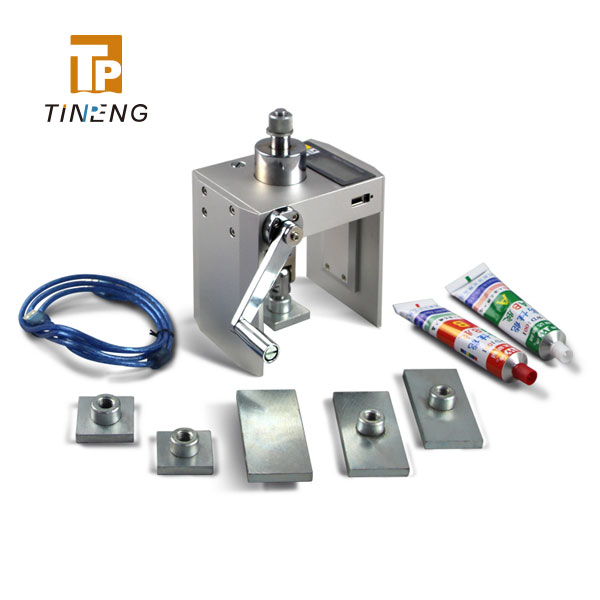

Used to test the bonding strength of decorative bricks, tiles, mosaics, vari-ous plates, paints, coatings, exterior wall insulation materials (EPS panels, SPS panels), and also be used to test the bonding strength of various exterior wall building materials and adhesives.
STANDARD
- EN 12004-2
Get Wholesale Price
Used to test the bonding strength of decorative bricks, tiles, mosaics, vari-ous plates, paints, coatings, exterior wall insulation materials (EPS panels, SPS panels), and also be used to test the bonding strength of various exterior wall building materials and adhesives.
Features
- Built-in micro hydraulic system;
- Equipped with an embedded digital pressure gauge;Peak hold, data can be recorded, queried, deleted;
- The value of the 10-segment line correction improves the accuracy of the instrument;
- Low-power consumption design, will automatic shutdown if no operation, continuous working time can exceed 200 hours;
- High-definition 40x30mm with 320x240 resolution and high brightness capacitive touchscreen.
- Adopts touch screen + button control, and can display curves and directly read tensile force (kN) and strength (MPa) values.
TECHNICAL PARAMETERS
Measuring range: 0～10KN
Display: Mpa and Kn
Resolution: 0.001kN/0.001MPa
Error: 1%
Main material: Alloy material
Hollow cylinder stroke: 10mm
Support span: 125mm
Body weight: 2.0kg
Data store: 1000 items
Data check and delete function: Yes
Peak holding function: Yes
LCD lighting function: Yes
Battery: Lithium battery
Polyline correction: 10-section
USB charging: Yes
