TP-U81/TP-U91

APPLICATIONS
· Ultrasonic and rebound comprehensive method for testing concrete strength
· Concrete internal defect detection and positioning
· Concrete crack depth detection
· Concrete crack width detection

FEATURES
· Large color LCD touch screen that is highly visible in all lighting conditions.
· Multifunctional equipment, which can perform detection of concrete strength, crack depth, crack width and defect.
· Advanced algorithm for automatic first arrival time and amplitude detection.
· First arrival time, wave-speed, amplitude displayed simultaneously in real-time.
· First arrival time can be manual corrected to avoid misjudgment.
· Easily review, retest, delete history data.
· Performs real-time analysis on site, as well as data transfer with PC reporting software for additional analysis.
· Meets or exceeds the specifications of JGJ and several other standards.

TECHNICAL PARAMETERS

TP-U81
Display: 8-inch LCD touch screen (1024*768)
Plane transducer: 2
Trigger: Automatic
Sampling interval: 0.025μs~2.0μs
Sampling length: 1024
Receiver sensitivity: <10μv
Acoustic time range: 0~99999μs
Acoustic time accuracy: 0.05μs
Amplitude range: 0~170dB
Emission voltage: 500V, 1000V
Emission pulse width: 20μs~20ms
Memory: 2G+4G (USB flash)
Battery: Working more than 8 hours
Size: 255*188*63mm
Weight: 2.8kg

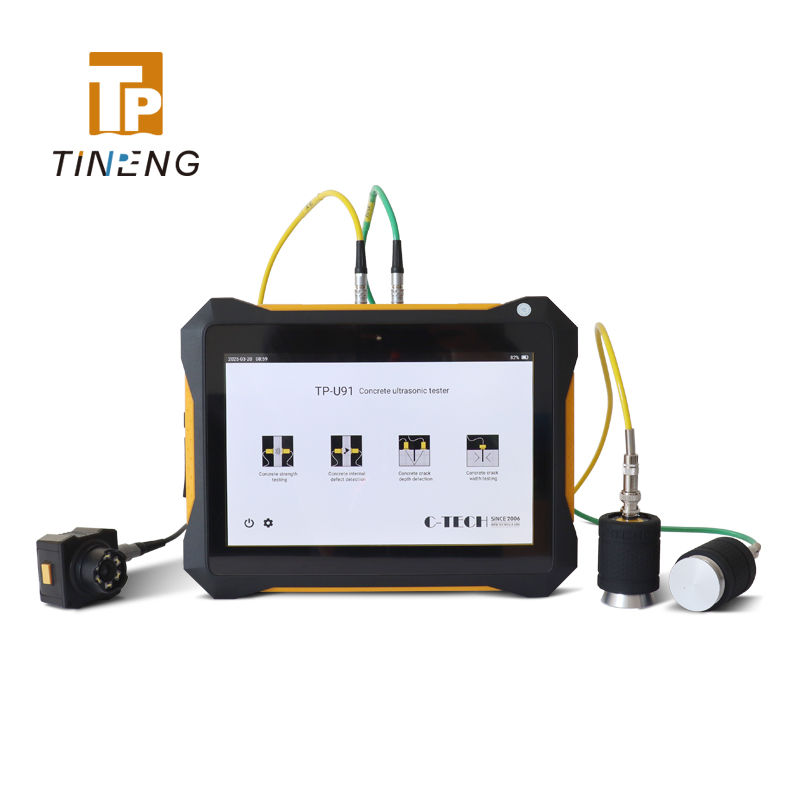

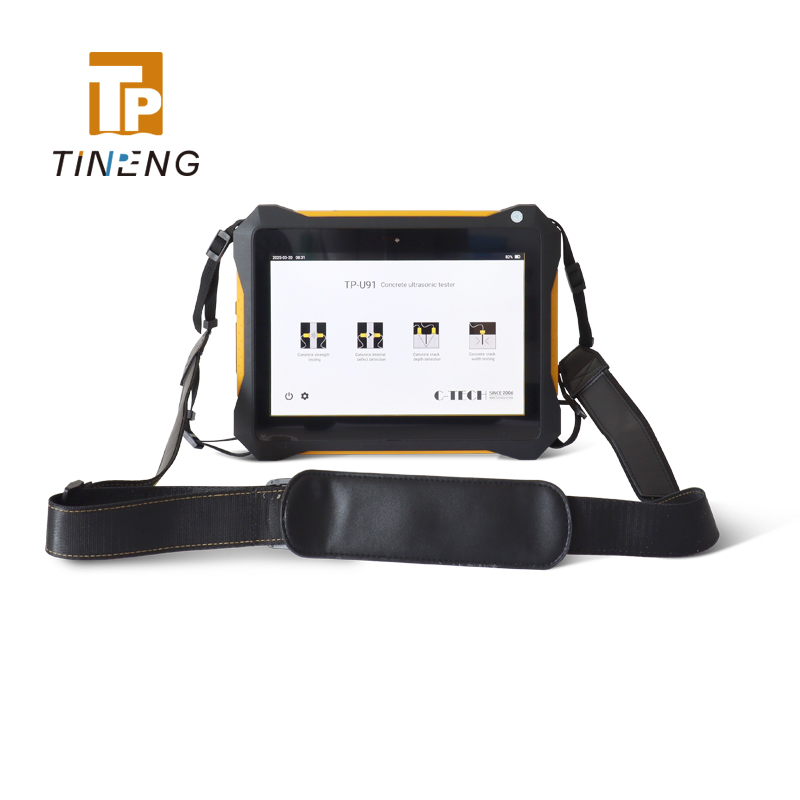

TP-U91
Display: 10.1-inch LCD touch screen (1024*768)
Plane transducer: 2
Trigger: Automatic
Sampling interval: 0.025μs~2000μs
Sampling length: 512~2048
Receiver sensitivity: ≤10μv
Acoustic time range: 0~4000000μs
Amplitude range: 0~170dB
Emission voltage: 125V, 250V, 500V, 1000V optional
Emission pulse width: 0.1μs~100μs
Depth measurement range: 5~500mm
Width measurement range: 0~10mm
Memory: 16G
Battery: Working more than 8 hours
Working temperature -20~+60℃
Size: 283×216×41 mm
Weight: 1.8kg

Brochure TP-U81.pdf

Brochure TP-U91.pdf

TRAINING

Training services are available for this equipement, including on-site training, training videos and training documents. Contact us for a quote.
Duration: 1 day
