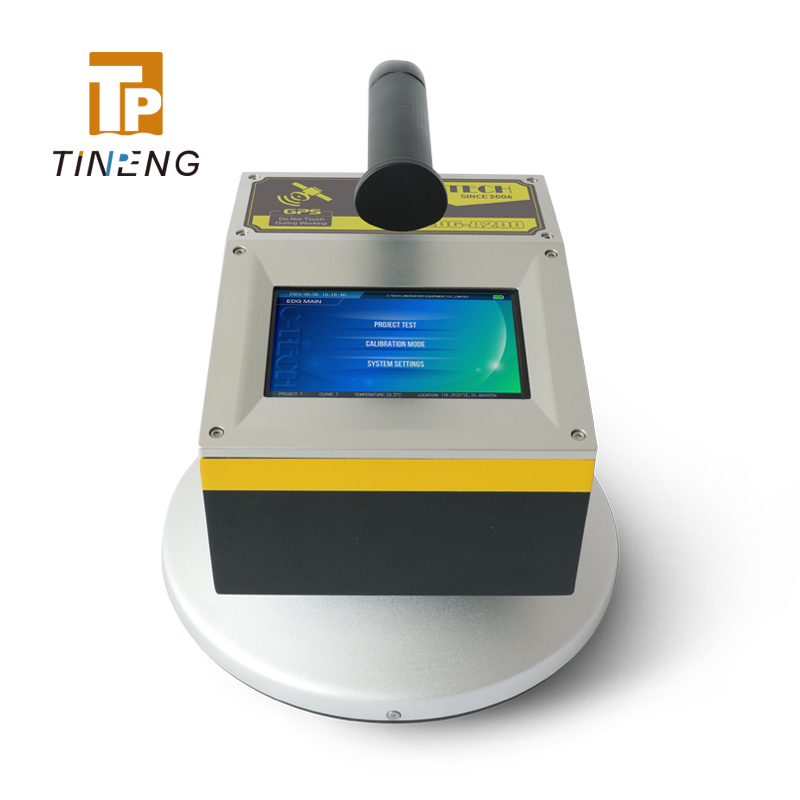

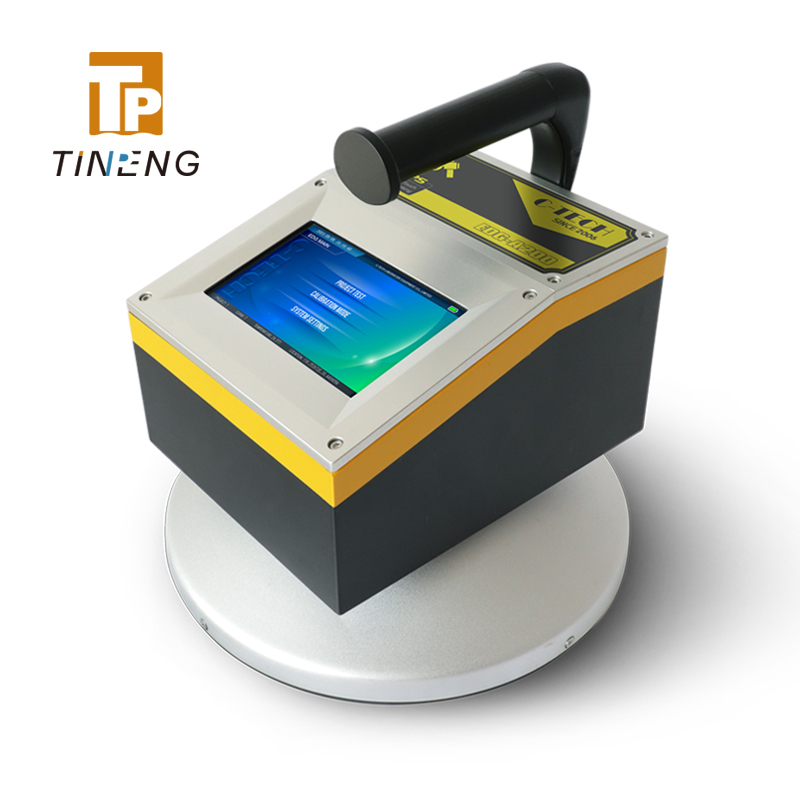

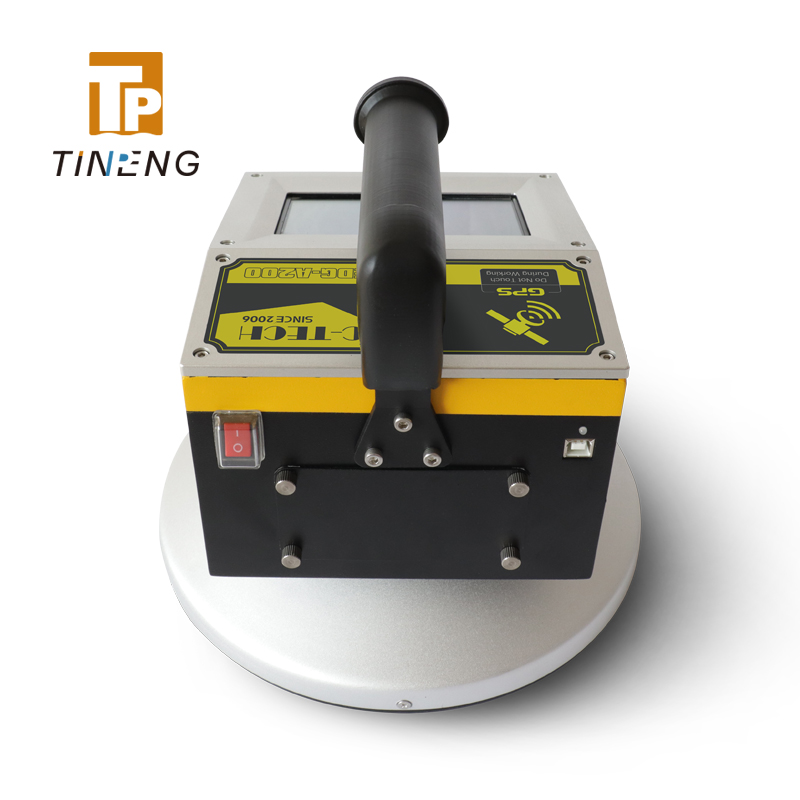

EDG-A200
Asphalt electric density gauge (EDG-A200) is capable of providing accurate readings of asphalt density, moisture content, and percent compaction on asphalt typically used for roads and foundations.adopting no-nuclear technology,low cost,high effeciency and good security.
STANDARD
- ASTM D7113-05
- AASHTO T343-12
Get Wholesale Price
· Full color graphics driven user interface, touch screen operation, easy to use.
· New status bar feature, displays GPS status, data save status, available battery voltage, low battery status and date and time
· New data management feature, quickly access, download or delete your project data Ability to download files from the EDG-A200 via USB drive
· Fast, reliable, accurate material density and compaction test, and repeatable readings in real time, user friendly, cost effective
· No other method of calibration is required, and on-site testing can be performed directly. You can read the data accurately in three seconds, with higher precision and better stability. Non-Nuclear means no badges, licenses or storage and transport concerns
TECHNICAL PARAMETERS
OPERATIONAL SPECIFICATIONS
MODES
Single: Reading time less than five (5) seconds. Stores Data. Average: Averages five (5) readings and stores data includ-ing date and time. Stores thousands of records.
Continuous: Instantaneous density readings.
FUNCTIONS
Density, % Compaction
Porosity %
Integrated Temperature Sensing: Real time temperature display 0℃ to 350℃
CALIBRATION MODES
Normal: Correlation offset to cores.
MEASUREMENT SPECIFICATIONS
Sensing Area: 11 in. (27.9cm) diameter base allows optimum measurement on fine and coarse material types.
Measurement Depth: 110mm
Measurement Display: Density, % Compaction, Surface Temperature，Mix Name & Project Name
MECHANICAL SPECIFICATIONS

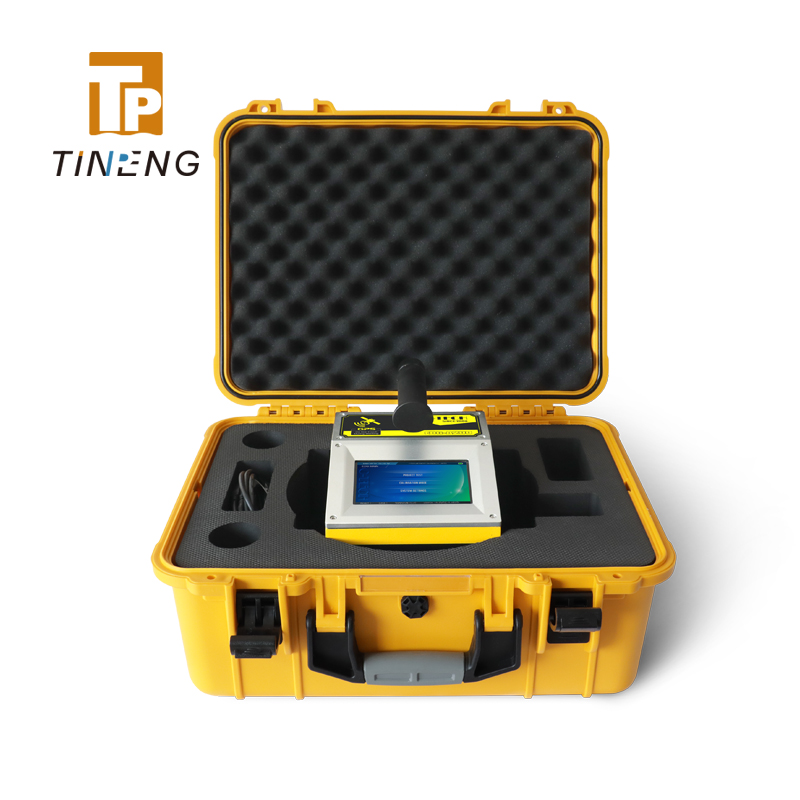

Shipping Weight w/Case: 9.00kg
Shipping Dimensions: 490×220×390mm
ELECTRICAL SPECIFICATIONS
MICROPROCESSOR CONTROLLED
Battery: 2.5 Amp-hr NiMH，12V
Recharge Time: 4 hours
Battery charger: 12V Universal AC charge
Computer Ports: 1 USB Port
