HTHY-0766

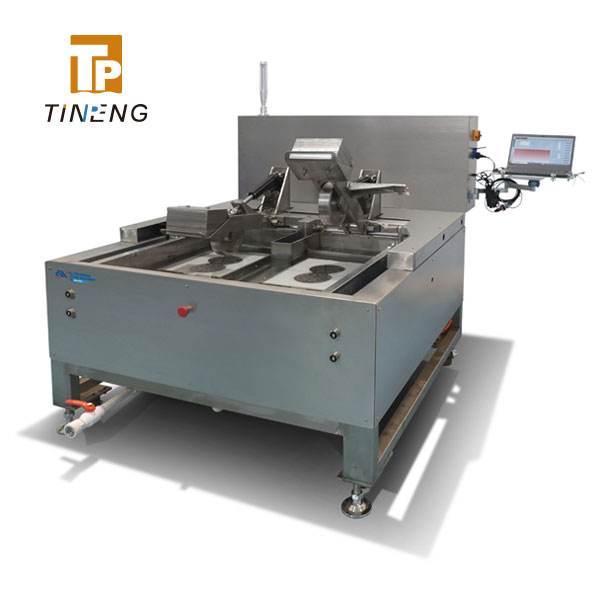

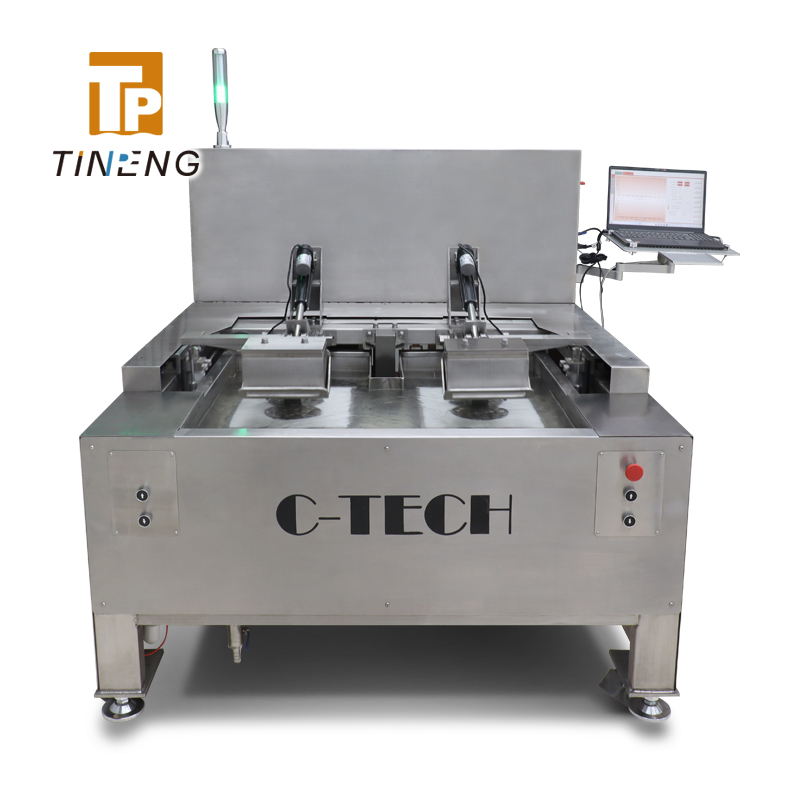

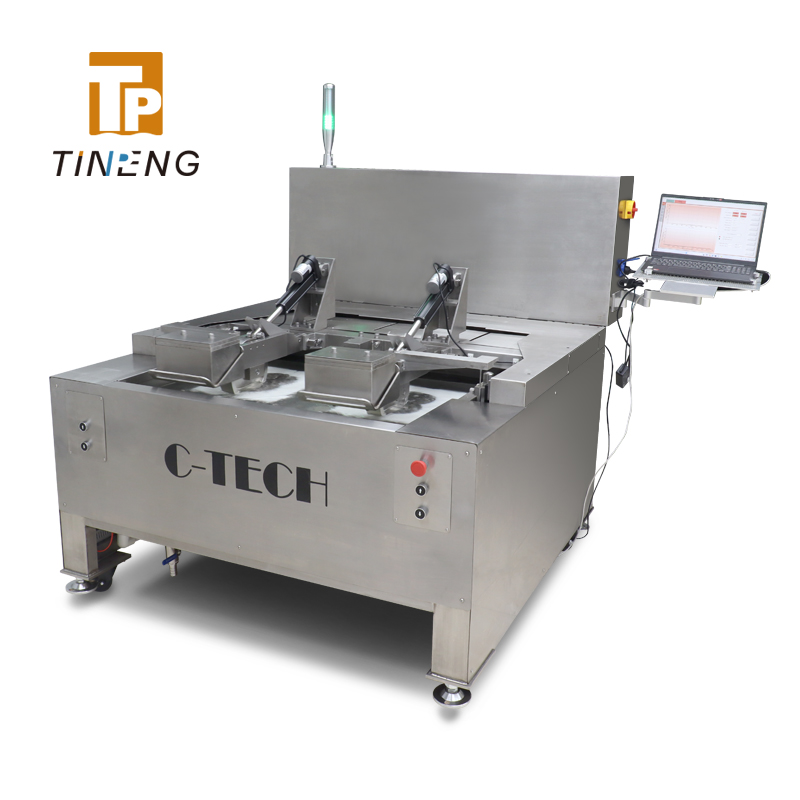

The Hamburg Wheel Tracking Machine HTHY-0766 is a lab testing equipment for the asphalt industry. It is used to test the wearability & water damage potential of asphalt mixes.

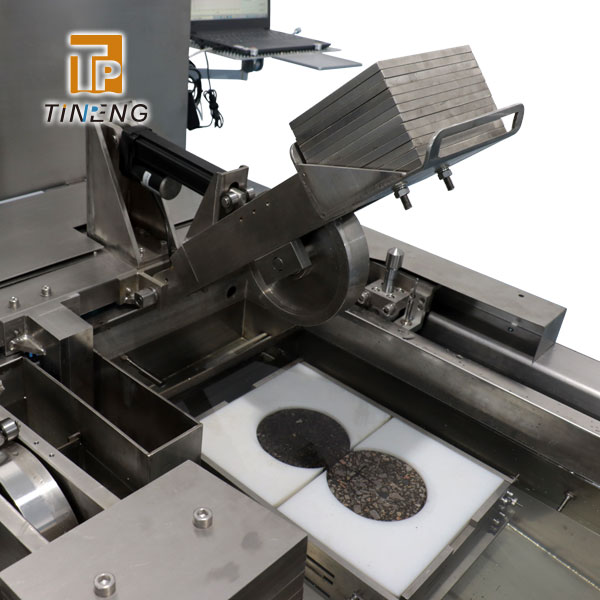

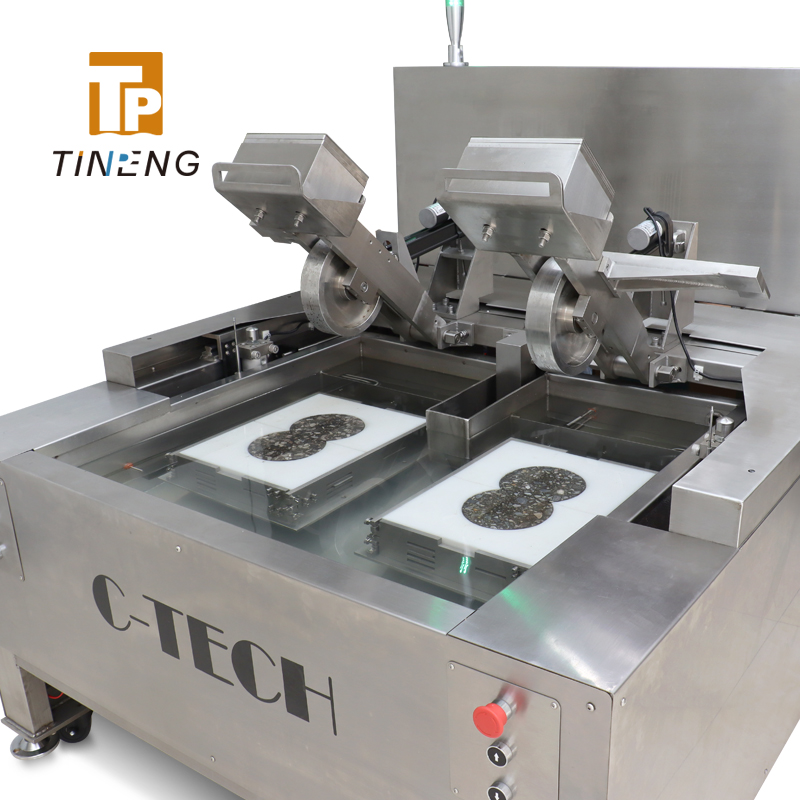

Constructed out of corrosion resistant architectural grade 304 and 316 stainless steel tubing, the rigid frame and components of the Wheel Tracking Machine HTHY-0766 provide incredible stiffness to the frame and loaded wheel assemblies, ensuring that rut depth measurements are not impacted by the stiffness of the machine. Electronics are isolated from the moving components of the machine and encased in a custom stainless steel cabinet to ensure protection from the elements, easy servicing, and plug-and-play replacement in the future.

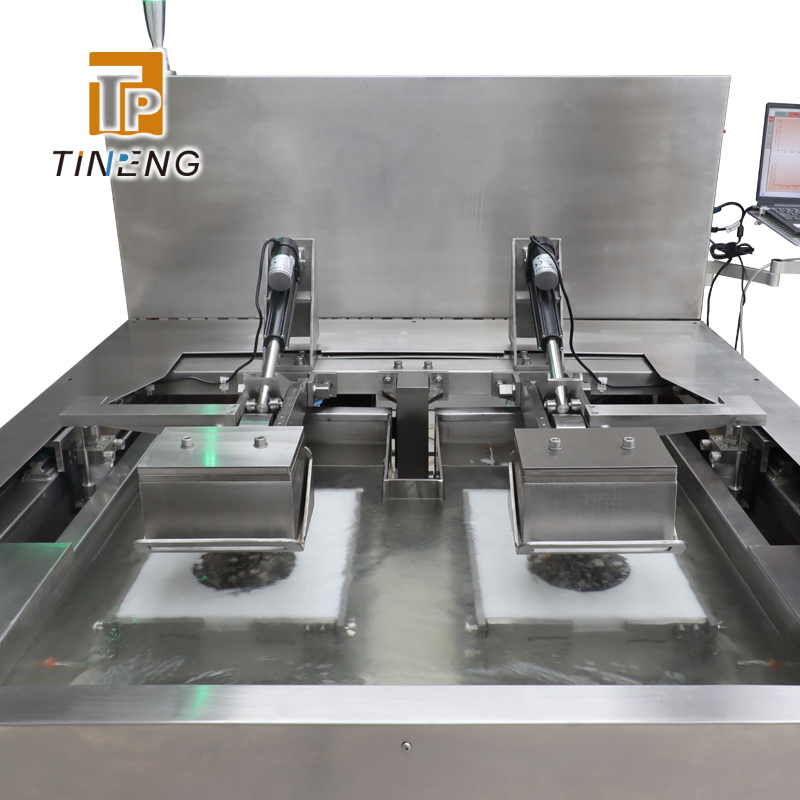

The Auto-Lift Feature allows for complete testing automation by protecting specimens from the effects of pre-loading during sample conditioning, and allows both samples to complete the entire testing procedure should one sample fail prematurely.

TECHNICAL PARAMETERS

Rut Depth Measurement: 0 to 50mm; 0.01mm
Water Temperature: 15℃ to 70℃ +/- 0.3℃
Wheel Speed: 36 to 80 Passes/Minute in 1 PPM Increments
Wheel Travel: 9.0”
Wheel Weight: 158 lbs +/- 1lb (adjustable)
Wheel Dimensions: 203mm diameter, 47mm wide
Measurement Frequency: > or = 20 passes
Real Time Display: Temperature, Rut Depth, Speed, and Test Duration
Data Output: Sample Inflection Point (SIP); Creep Slope/Stripping Slope; Rut Depth Profiles; Temperature; Export to Microsoft Excel
Software Compatibility: Microsoft Windows XP, Vista, 7, 8, and 10
Machine Construction: Stainless Steel, Copper, Brass, and Plastic
Motor: 2 HP Geared
Water Service: Cold Water, Hot Preferred, Drain Height 14” or Less
Water Service: 97-104 PSI
Power supply: 208-230VAC 50/60 Hz 3-Phase or Single Phase

Brochure.pdf

STANDARD ACCESSORIES

Stainless Steel Sample Trays– 40mm, 50mm, 60mm, 80mm, 100mm, and 120mm Sizes Available
Gyratory Sample Holders – 40mm, 50mm, 60mm, 80mm, 100mm, and 120mm Sizes Available

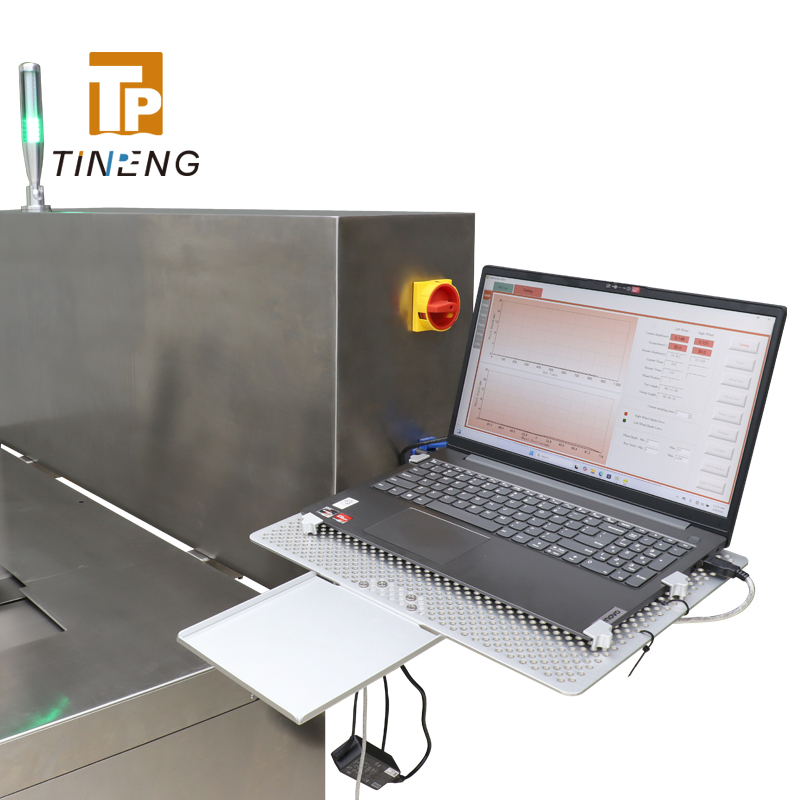

Computer with Pre-Loaded Software – All-In-One PC with Articulating Mounting Arm

OPTIONAL ACCESSORIES

Stainless Steel Overhead Crane
Standard Electric Chain Hoist and Trolly
