TPAT-001
It is used to break up and crumble asphalt samples to facilitate bulk density tests and laboratory testing purposes by reducing the granulating time in few minutes with high quality results.
It is used to break up and crumble asphalt samples to facilitate bulk density tests and laboratory testing purposes by reducing the granulating time in few minutes with high quality results.

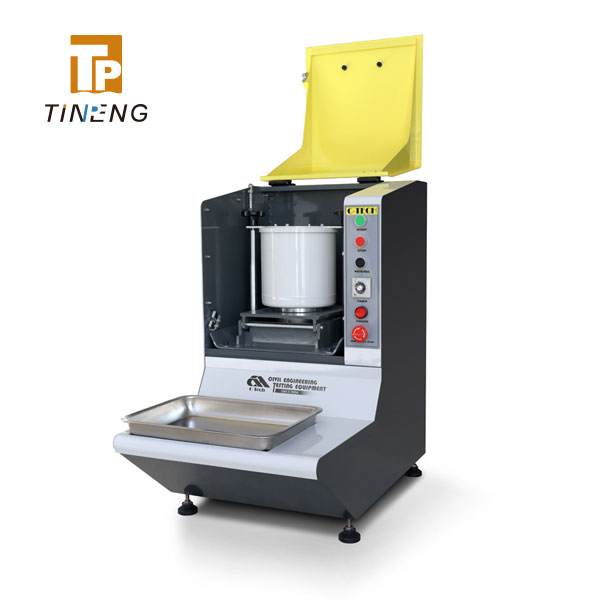

Pour a rough asphalt sample of approximately 1kg into the stainless steel bowl which has three rotating paddles at the bottom. The splitter can break up and crumble the asphalt sample into a granular form within 1~3 minutes. A hinged cabinet reducing noise protects the stainless steel bowl. When opening the cover while the splitter is working, a microswitch automatically stops the machine.
TECHNICAL PARAMETERS
Power: 1.5kW
Speed: 1400rpm
Power supply: 380V 50Hz (220V 50Hz optional)
Weight: 88kg
Dimensions: 750*500*900 mm
Stainless steel bowl capacity: 6L
Asphalt sample weight for single grinding: Recommended 1kg
Grinding time: Recommended 3min
