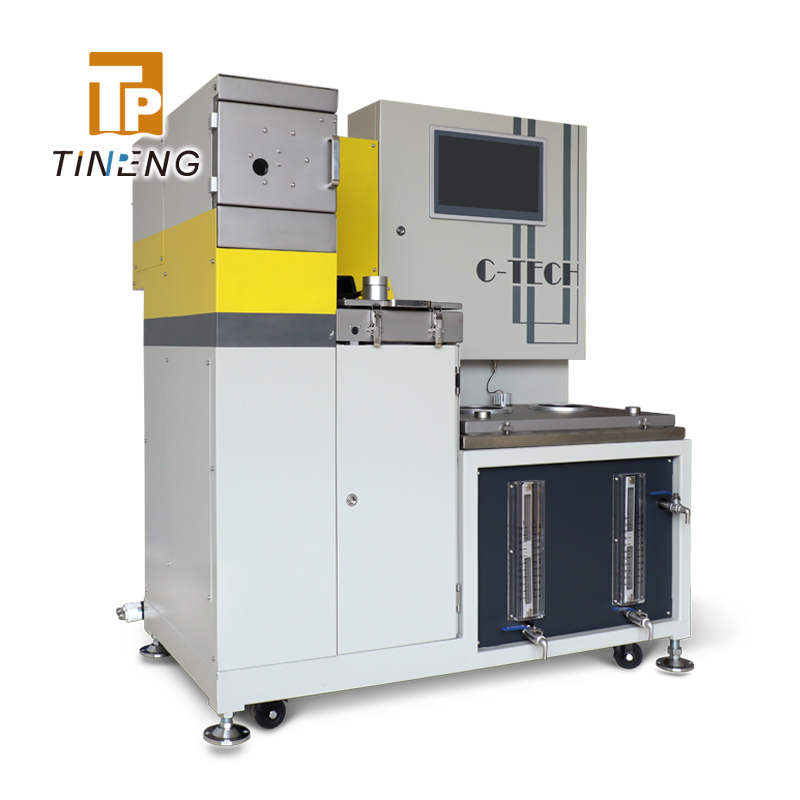

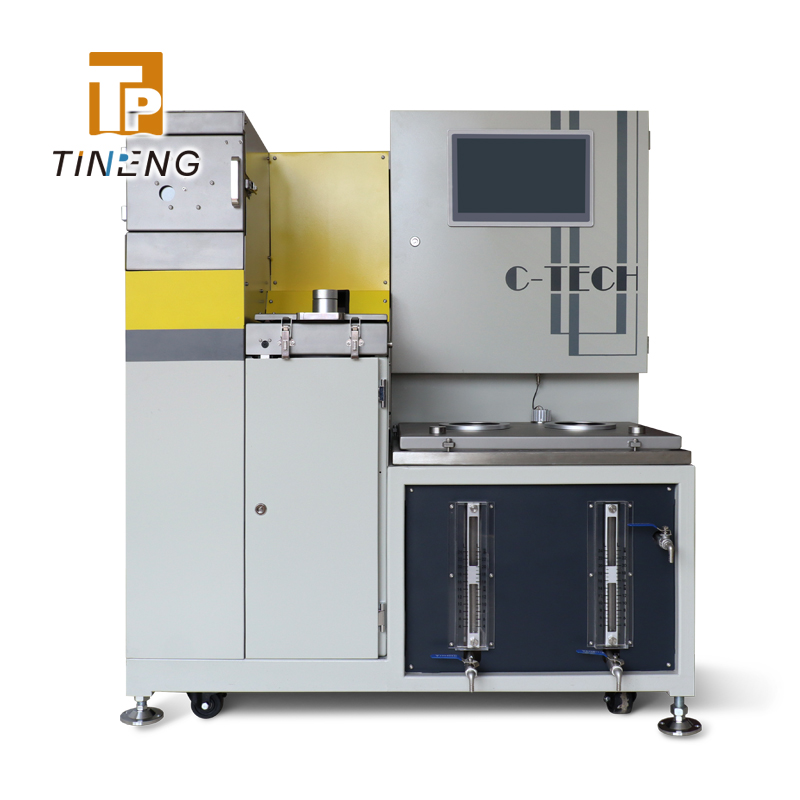

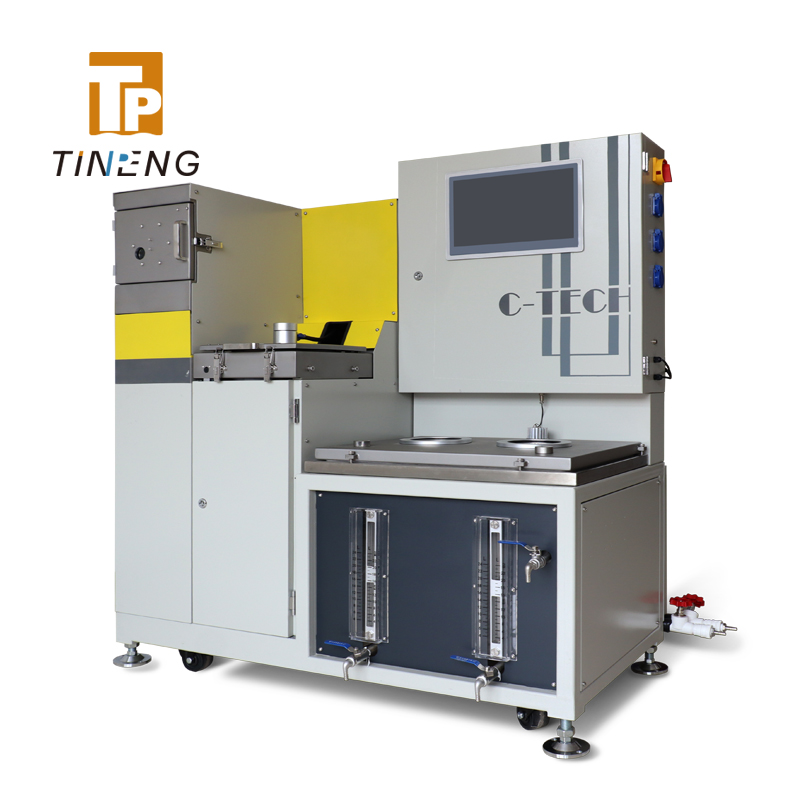

HTHY-8159/8159A

The Asphalt mix analyzer is mainly used for extracting and separating asphalt, mineral powder from asphalt mixtures, and rubber particles in rubber asphalt(HTHY-8159A only). Asphalt can be recovered while calculating the asphalt content. The performance of recover asphalt is evaluated by subsequent relevant tests, so as to provide data support for the recovering of asphalt mixtures.

The equipment consists of cleaning system, centrifugal system, drying system and extraction system. The entire extraction and separation process is completed in a closed system, which is environmentally friendly and avoids direct contact between the operator and the solvent.

FEATURES
·Computer control and display, users can choose soaking time, cleaning and drying cycle according to their needs.
·Real-time display of ongoing process and time.
·High extraction efficiency, the entire extraction process can be completed within 1 hour.
·Can be used for the extraction of rubber-asphalt mixtures.( HTHY-8159A only)
·The extraction process is completed in a closed system, and the solvent loss is small.
·The cleaning chamber has a heating function and is equipped with an ultrasonic device to accelerate the dissolution of asphalt, making the cleaning process more efficient.
·An observation window is installed at the inlet of the centrifuge, which can check the color of the mixture in real time.
·The rotation speed of the centrifuge is not less than 8000r/min, and the separation of mineral powder is more thorough.
·The drying system can dry the aggregate and mineral powder, which is convenient for calculating the asphalt content.
·The collected aggregate can be further sieved.
·The distillation system consists of a mixed liquid silo, a solvent silo and a cooling device.
·The Asphalt Vacuum Rotary Evaporation Test Sampling System can be set to soak for 3-30 minutes before the start of the cleaning cycle and directly extract the asphalt mixture sample.
·Equipped with cooling equipment, the cooling effect is better than the traditional tap water cooling method, and water resources are saved.

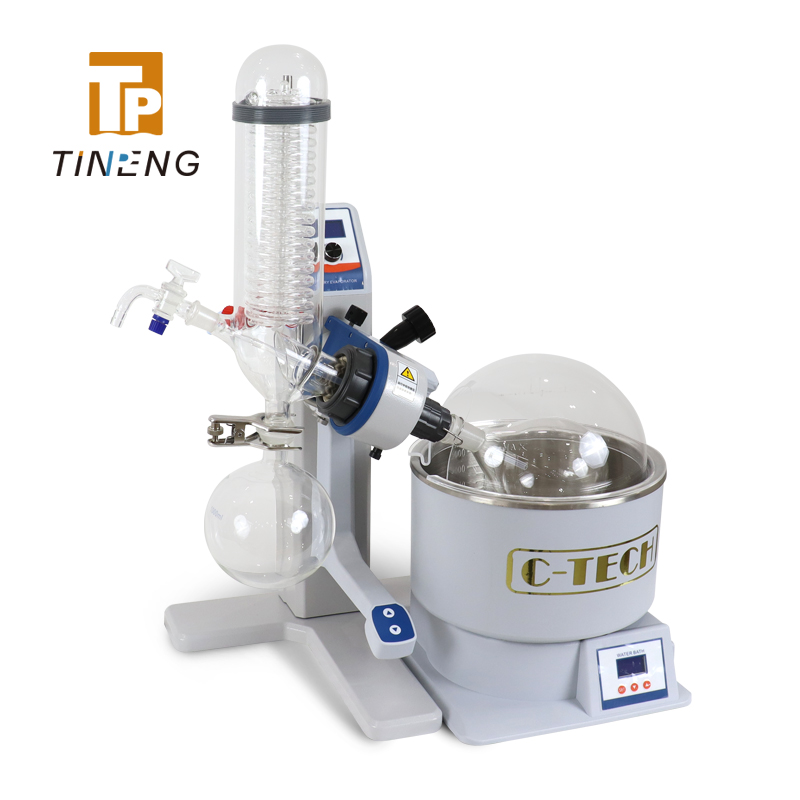

·Can be equipped with electric rotary evaporator (optional).
·Part of the asphalt experiment utensils can be cleaned, and the cleaning fixture needs to be customized (optional).

TECHNICAL PARAMETERS

HTHY-8159A
Maximum sample weight: Conventional Asphalt Mixture 3.5Kg; Rubber Asphalt Mixture 1.5Kg
Centrifuge speed: Not less than 8000r/min
Centrifuge cup capacity: Less than 300g
Distillation capacity: Main heater 10L/h; Main heater + auxiliary heater: 35L/h
Power supply: 380V 50HZ, 5.5KW
Dimensions: 1300 x 800 x 1700 mm
Weight: 200kg

HTHY-8159
Maximum sample weight: Conventional Asphalt Mixture 3.5Kg
Centrifuge speed: Not less than 8000r/min
Centrifuge cup capacity: Less than 300g
Distillation capacity: Main heater 10L/h; Main heater + auxiliary heater: 35L/h
Power supply: 380V 50HZ, 5.5KW
Dimensions: 1300 x 800 x 1700 mm
Weight: 200kg
