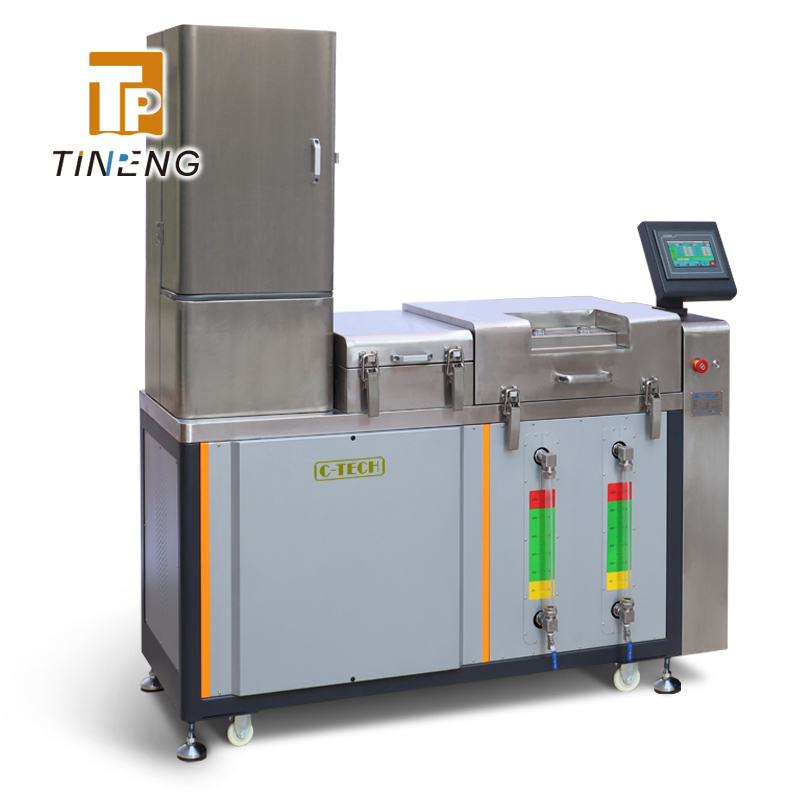

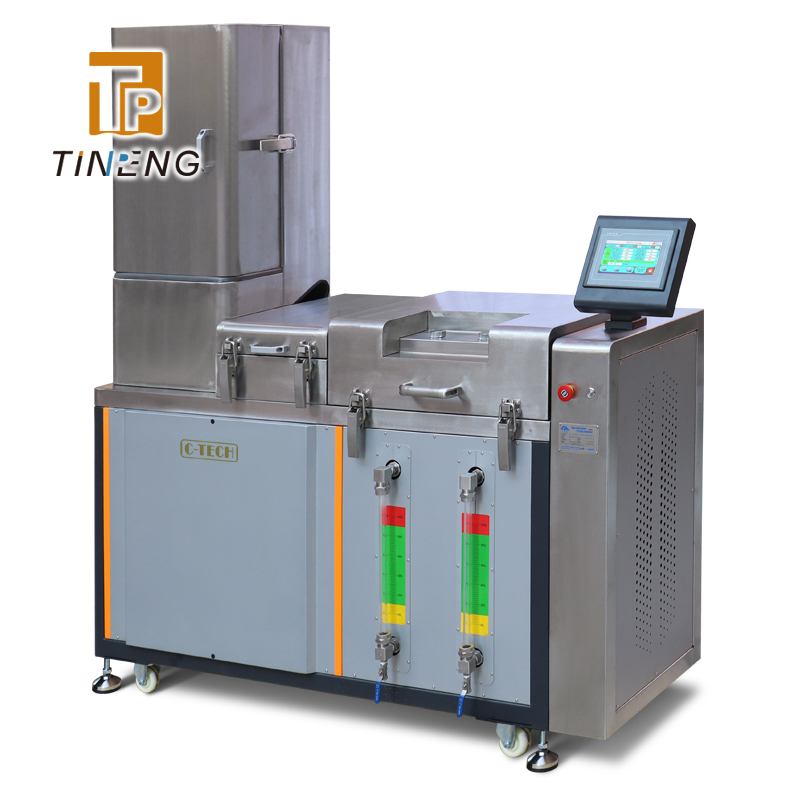

AE-CT5

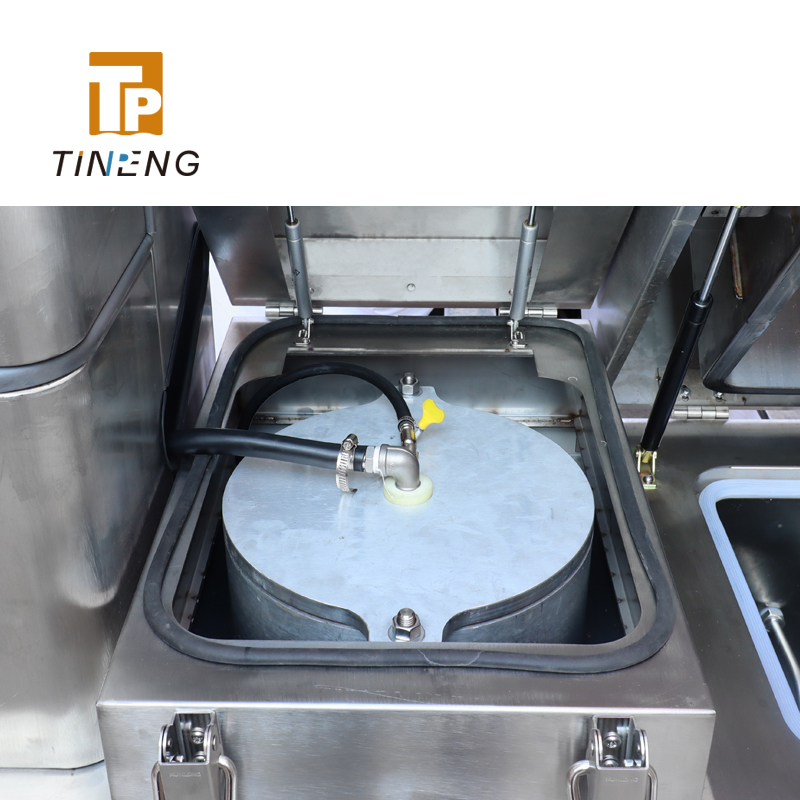

The automatic extraction apparatus is used for the separation and extraction of bitumen by use of solvent and sieving, for the separation of filler by centrifuge action and for the recovery of solvent material. The complete cycle is carried out automatically.

FEATURES

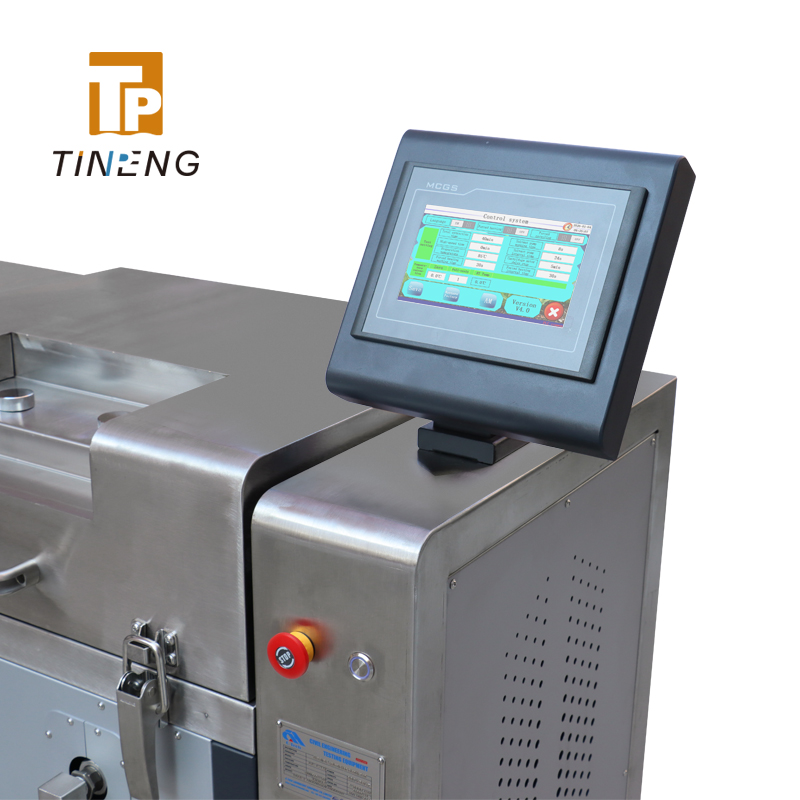

l  The machine adopts touch screen control, which has the advantages of sensitive response speed, easy observation and easy operation.
l  The control system is simple and easy to operate. Users only need to start with one tap through the touch screen to automatically complete the extraction.
l  The equipment has complete safety protection, such as communication protection, limit switch, etc., which can effectively avoid accidents.
l  The equipment adopts industrial PLC, which has high reliability and stability. It is suitable for various harsh industrial environments and can run stably for a long time.
l  The screening system is equipped with stainless steel sieves (dia.200*6.5cm height, mesh size 0.075/0.15/0.6/2.36mm) and a test sieve frame.

TECHNICAL PARAMETERS

Capacity: 1000g-3000g
Extraction accuracy: Error about 0.1%
Extraction time: 20~40min/time
Speed: >8000rpm
Extraction mode: Automatic/manual
Equipment dimensions: 1800×650×1800mm
Package dimensions: 1900×750×1900mm
Power supply: Three-phase four-wire 380V,50Hz
Total power: 4KW
Net weight: 280kg
Gross weight: 300kg
