R-1001VN/R-3001

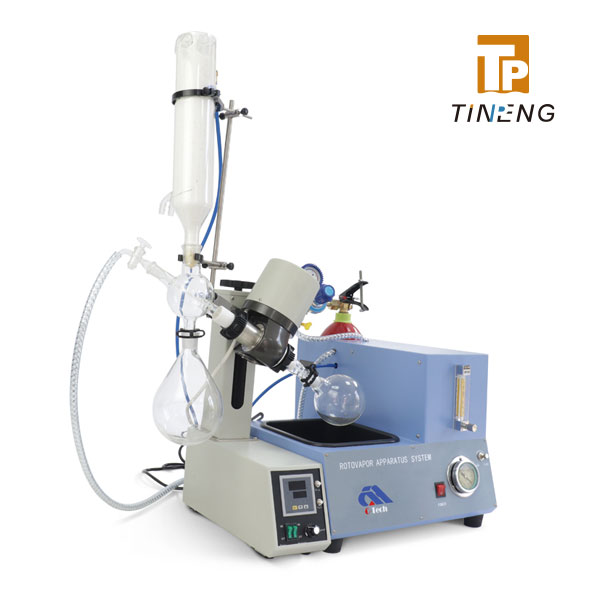

The rotary evaporator is used for the recovery of soluble bitumen from bituminous pavement materials in a form suitable for further testing. The properties of the asphalt in the mixture are not changed during operation.

FEATURES
-R-3001 Glass components are all 3.3 borosilicate glass, with excellent physical and chemical performance.
-Adopt PID temperature control with high precision.
-High-efficiency double reflux condenser, large condensation area, high recovery rate.
-PTFE+fluororubber double sealing ring ensures the sealing of the system.
-The bath is separated from the main unit for flexible configuration.
-The bath is equipped with a protective cover to prevent liquid splashing and improve evaporation efficiency. (R-3001 only）

TECHNICAL SPECIFICATIONS
R-1001VN
Model:R-1001VN
Speed range:20~180
Speed regulation:Stepless speed regulation
Bath temperature control range (ºC):Room temperature +5 ~ 95, accuracy ±1.5
Maximum evaporation capacity (water)(L/h):0.9
Rotary flask tilt angle:15°~45°
Condensing area (m²):About 0.126

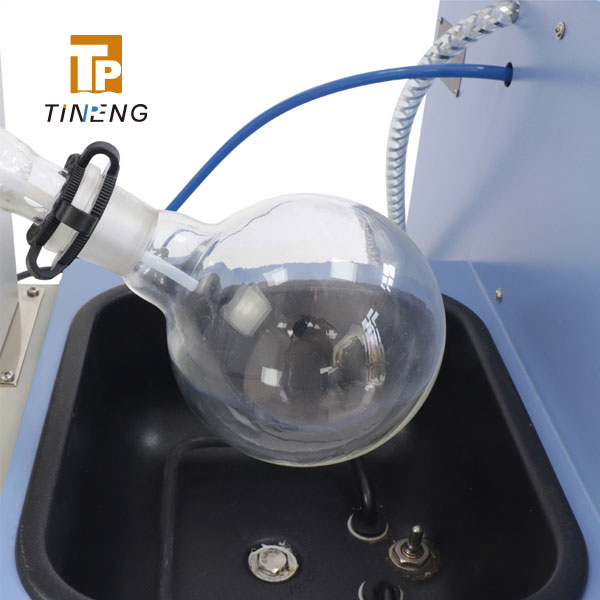

Rotary flask         Volume (mL):500/1000
                            Opening diameter (mm):24/40 standard frosted mouth
Recovery flask    Volume (mL):1000
                            Opening diameter (mm) :S35 Ball milling mouth
Bath Size:Φ254mm×130mm
Bath cover:Optional
IP Grade:IP 20
Power supply :110V ~, 60Hz or 220-240V ~, 50/60Hz
Rotary motor power (W): 25
Heating power (W):1050
Total power (W):1080
Dimensions (mm):640W×400D×670(920)H
Minimum installation space (mm):740W×500D×970H
Weight (kg):13
R-3001
Model:R-3001
Speed range:10~280
Maximum evaporation capacity (water)(L/h):1.38
Bath cover:Standard
Rotary motor power (W): 40
Heating power (W):1300
Total power (W):1390
Dimensions (mm):620W×400D×700(850)H
Minimum installation space (mm):740W×500D×970H
Weight (kg):13.5
