TPVN-8

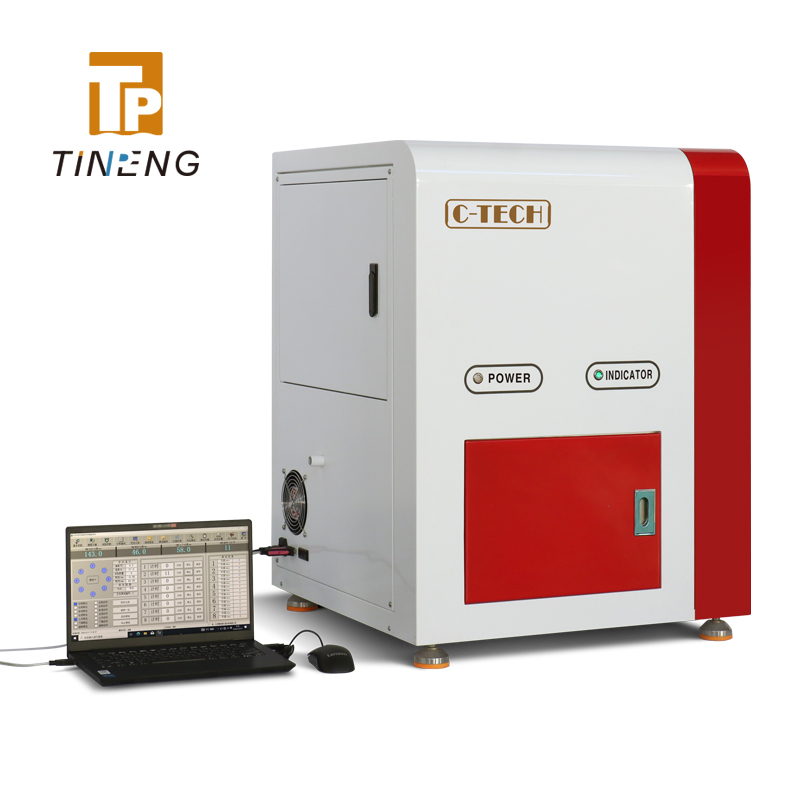

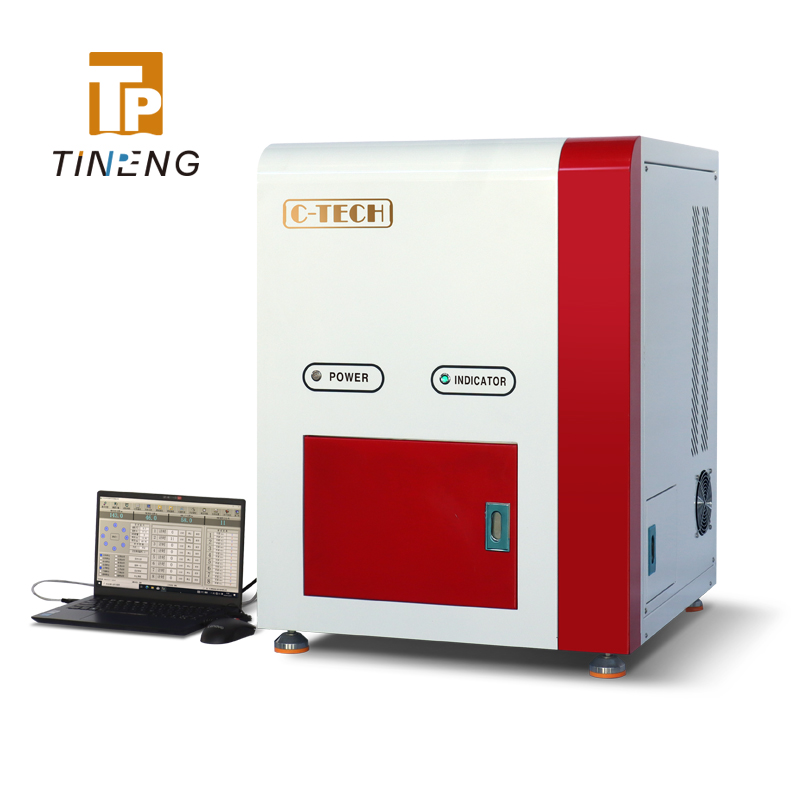

The automatic Vicat needle apparatus TPVN-8 is an automatic testing equipment for determination of the setting time of cement. It has 8 measuring positions, automatically tests the cement setting by imitating manual testing, without manual intervention during the testing process. It can completely replace the manual test process and the functions of constant temperature and humidity chamber.
STANDARD
- ISO 9597
Get Wholesale Price
The automatic Vicat needle apparatus TPVN-8 is an automatic testing equipment for determination of the setting time of cement. It has 8 measuring positions, automatically tests the cement setting by imitating manual testing, without manual intervention during the testing process. It can completely replace the manual test process and the functions of constant temperature and humidity chamber.
FEATURES
◎ Fully automatic measurement, no manual intervention required.
◎ Multiple reliability designs provide all-round protection for the needle and automatic cleaning.
◎ Adopt new technology to measure the needle displacement with an accuracy of ≤50μm, avoiding manual reading errors, and automatically measure the cement end face to reduce measurement errors.
◎ Up to 8 samples can be tested in parallel, each sample is independent of each other, and samples can be added at any time.
◎ The software displays the status and the measurement hole position of each sample in real time.
◎ It comes with a constant temperature and humidity curing chamber to achieve humidity ≥90% and temperature 20±1℃ curing conditions.
TECHNICAL PARAMETERS
Linear displacement measurement accuracy: ≤50μm
Initial setting time accuracy: ±15 minutes
Final setting time accuracy: ±45 minutes
Measuring position: 8
Slide assembly weight: 300g±1g, including test rod and needle
Effective length of test needle: 70±1mm, diameter: 1.13±0.05mm

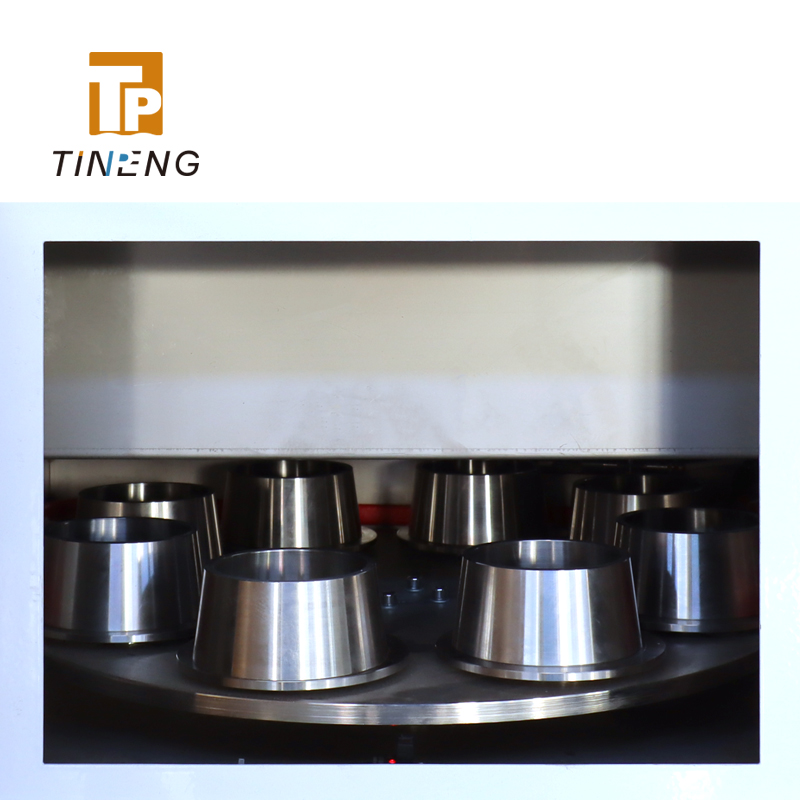

Vicat mould: Φ65±0.5mm×Φ75±0.5mm×40±0.2mm
Ambient temperature: 20±1℃
Test chamber humidity: ≥90%
Power: Motor: DC24V, 30W; Cooling: DC frequency conversion 24V/120W; Heating: 100W; Humidifying: 25W; Water pump: 220V, 15W
Power supply: 220V 50Hz
