TPCM-500

It uses diamond disc blades to cut and sample various non-metallic solids, and is particularly suitable for cutting and sampling various types of rocks and ores, building concrete, and refractory bricks. It is an essential equipment for sample preparation in the petroleum, geology, coal, metallurgy, construction, transportation and other departments. It has a compact structure, a high degree of automation, and is fully enclosed and low noise.



Get Wholesale Price
Share:

It uses diamond disc blades to cut and sample various non-metallic solids, and is particularly suitable for cutting and sampling various types of rocks and ores, building concrete, and refractory bricks. It is an essential equipment for sample preparation in the petroleum, geology, coal, metallurgy, construction, transportation and other departments. It has a compact structure, a high degree of automation, and is fully enclosed and low noise.

-

TECHNICAL PARAMETERS

Maximum cuttable sample size: Dia.150X450mm, 150X150X450mm

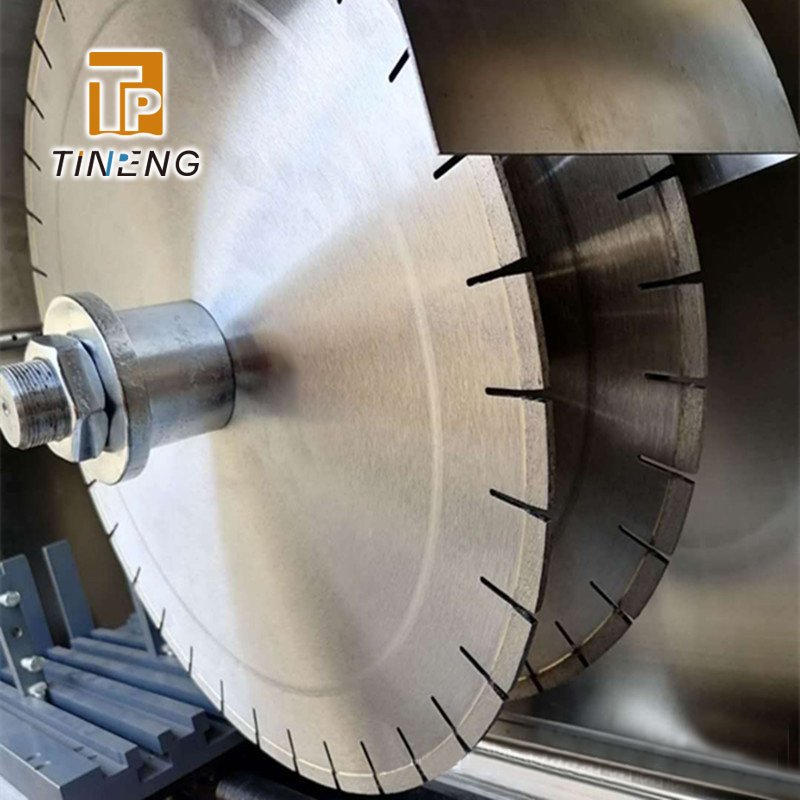

Diamond blade: 500 * 50 * 2 mm X2
Distance of two blade: 54 / 50 / 30 / 20 mm (adjustable)
Working mode: Two blades cut two planes
Main motor: 4KW
Working motor: 0.75KW
Line speed of cutter: 33-45m/s
Working time: Continuous
Ambient temperature: 0-40℃
Noise: Less than 80db
Dimensions: 1660mm X 550mm X 1160mm
Weight: 400kg


-
