XUE series

Used for drying, heating, hot preservation, ageing of components, thermal tests in laboratories and industries.

All ovens are fan circulated models. The air flow speeds up the drying process and also evens the temperature distribution within the oven.
The fan and heaters are in the rear of the oven, shielded from the workspace by a stainless steel baffle.
Air is drawn into the fan from the center of the oven and passes over the temperature sensor and the sheathed heater elements. The heated air is distributed around the baffle to both left and right and then re-circulated by the fan.

Temperature range: 300°C maximum
Volumes: 32, 58, 112, 225, 343, 490, 686, 980 litres.

TECHNICAL PARAMETERS

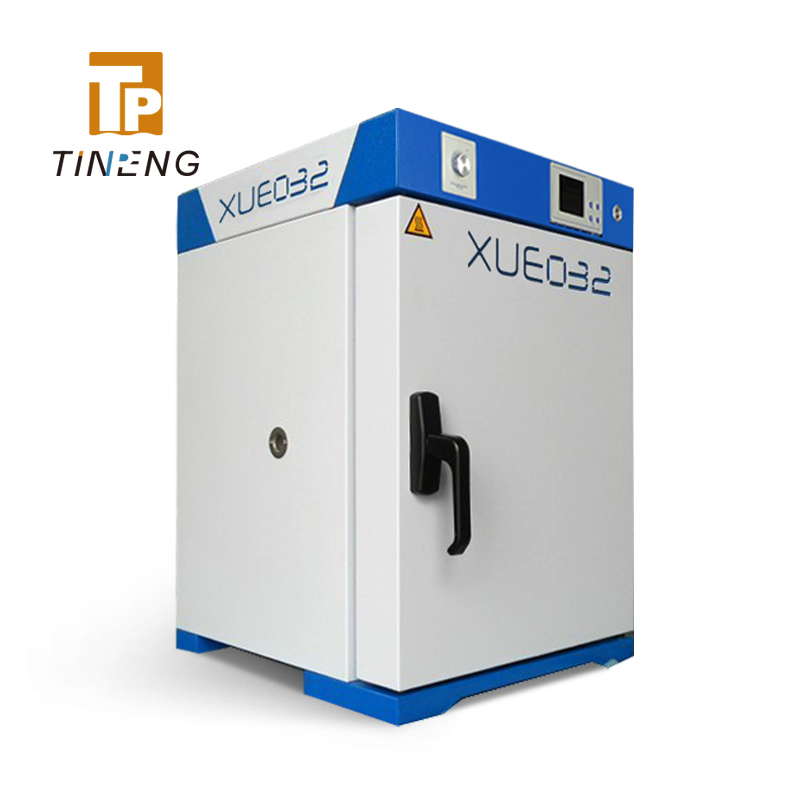

XUE032
Performance
Temperature range: Ambient + 10°C to 300°C
Temp spatial variation 105°C±°C: < 1.2
Temperature fluctuation ±°C: < 0.2
Dimensions
Work chamber volume L: 32
Internal width mm: 300
Internal depth mm: 270
Internal height mm: 400
External width mm: 464
External depth mm: 566
External height mm: 694
Shelves in stainless steel
Number standard / max: 2/6
Shelves dimensions (w x d) mm: 270x240
Max load shelf / oven kg: 30/60
Number of door (s): 1
Weight (empty) Kg: 35
Power supply 50 Hz 230 Volts single-phase, 400 Vtri+T+N/power>4000 Watts: 400 V 3-phase five wires
Max rating 300°C Watts: 1000

XUE058
Performance
Temperature range: Ambient + 10°C to 300°C
Temp spatial variation 105°C±°C: < 1.2
Temperature fluctuation ±°C: < 0.2
Dimensions
Work chamber volume L: 58
Internal width mm: 400
Internal depth mm: 360
Internal height mm: 400
External width mm: 565
External depth mm: 602
External height mm: 694
Shelves in stainless steel
Number standard / max: 2/6
Shelves dimensions (w x d) mm: 370x330
Max load shelf / oven kg: 30/60
Number of door (s): 1
Weight (empty) Kg: 47
Power supply 50 Hz 230 Volts single-phase, 400 Vtri+T+N/power>4000 Watts: 400 V 3-phase five wires
Max rating 300°C Watts: 2000

XUE112
Performance
Temperature range: Ambient + 10°C to 300°C
Temp spatial variation 105°C±°C: < 1.2
Temperature fluctuation ±°C: < 0.2
Dimensions
Work chamber volume L: 112
Internal width mm: 500
Internal depth mm: 450
Internal height mm: 500
External width mm: 664
External depth mm: 692
External height mm: 794
Shelves in stainless steel
Number standard / max: 2/8
Shelves dimensions (w x d) mm: 470x420
Max load shelf / oven kg: 30/60
Number of door (s): 1
Weight (empty) Kg: 54
Power supply 50 Hz 230 Volts single-phase, 400 Vtri+T+N/power>4000 Watts: 400 V 3-phase five wires
Max rating 300°C Watts: 2000

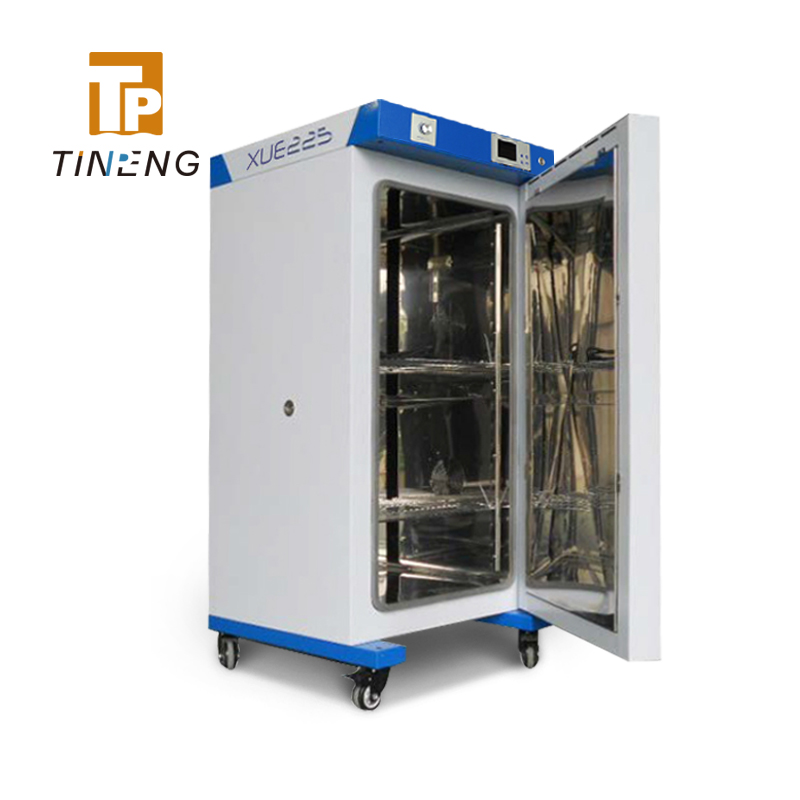

XUE225
Performance
Temperature range: Ambient + 10°C to 300°C
Temp spatial variation 105°C±°C: < 1.2
Temperature fluctuation ±°C: < 0.2
Dimensions
Work chamber volume L: 225
Internal width mm: 500
Internal depth mm: 450
Internal height mm: 1000
External width mm: 668
External depth mm: 710
External height mm: 1294
Shelves in stainless steel
Number standard / max: 2/17
Shelves dimensions (w x d) mm: 500x450
Max load shelf / oven kg: 30/120
Number of door (s): 1
Weight (empty) Kg: 120
Power supply 50 Hz 230 Volts single-phase, 400 Vtri+T+N/power>4000 Watts: 400 V 3-phase five wires
Max rating 300°C Watts: 3000

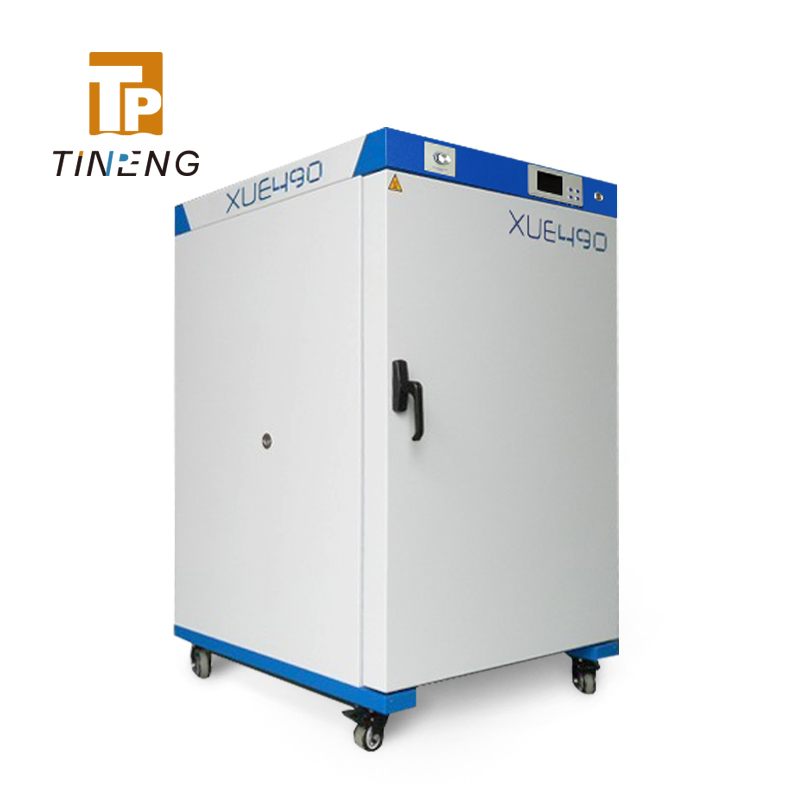

XUE490
Performance
Temperature range: Ambient + 10°C to 300°C
Temp spatial variation 105°C±°C: < 1.2
Temperature fluctuation ±°C: < 0.2
Dimensions
Work chamber volume L: 490
Internal width mm: 700
Internal depth mm: 700
Internal height mm: 1000
External width mm: 840
External depth mm: 910
External height mm: 1270
Shelves in stainless steel
Number standard / max: 2/17
Shelves dimensions (w x d) mm: 670x670
Max load shelf / oven kg: 30/240
Number of door (s): 1
Weight (empty) Kg: 205
Power supply 50 Hz 230 Volts single-phase, 400 Vtri+T+N/power>4000 Watts: 400 V 3-phase five wires
Max rating 300°C Watts: 4000

XUE686
Performance
Temperature range: Ambient + 10°C to 300°C
Temp spatial variation 105°C±°C: < 1.2
Temperature fluctuation ±°C: < 0.2
Dimensions
Work chamber volume L: 686
Internal width mm: 700
Internal depth mm: 700
Internal height mm: 1400
External width mm: 840
External depth mm: 910
External height mm: 1670
Shelves in stainless steel
Number standard / max: 2/24
Shelves dimensions (w x d) mm: 670x670
Max load shelf / oven kg: 30/240
Number of door (s): 1
Weight (empty) Kg: 235
Power supply 50 Hz 230 Volts single-phase, 400 Vtri+T+N/power>4000 Watts: 400 V 3-phase five wires
Max rating 300°C Watts: 6000

Brochure.pdf

FACTORY OPTIONS (must be specified at the time of ordering the main unit)
OG9001 Extension of max temperature up to 300°C
OG9002 Outside casing also made of 304 stainless steel
OG9003 Inner case in 316L stainless steel
OG9004 Special colour for external casing (indicate RAL)
OP0038 Digital timer 0/99 hours with auto/manu selection
OG9008 Weekly automation with digital program timer
OP0049 Temperature profiler (4 programs of 16 segments each
OP0026 Air extractor 60 m3/hour
OP0024 Air extractor 200 m3/hour
OG9014 Temperature paper recorder 1 probe
OG9015 Temperature paper recorder 2 probes
OP0014 Work chamber lighting 40 watts
OG9006 Door window
OG9005 Air circulation variator
OP0057 Additional thermocouple and connector
OG9007 Additional safety thermostat class 2
OP0001 Sound alarm
OP0041 Additional access port diameter 40 mm & silicone cork
OP0042 Additional access port diameter 60 mm & silicone cork
OP0079 Air extractor 60 m3/hour with variator
OP0080 Air extractor 200 m3/hour with variator
OP0010 Calibration certificate 1 temperature 1 point
OP0012 Calibration certificate 1 temperature 9 points

ACCESSORIES (can be ordered separately)
GA9001 Extra shelf 30 kg and supports
GA9002 Reinforced extra shelf 60 kg and supports
GA9003 Stainless steel tray (20 mm depth)
GA9004 Stacking kit
GA9005 Sub-frame
GA9006 Sub-frame with castors
AC0011 Silicone cork for access port diameter 40 mm
AC0012 Silicone cork for access port diameter 60 mm
