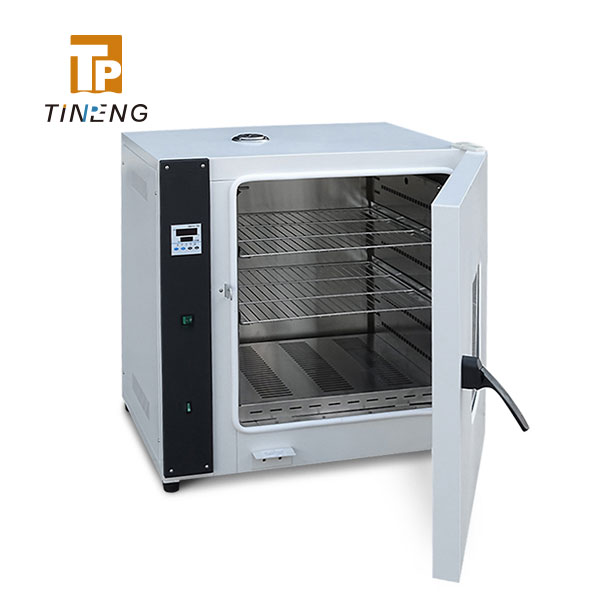

101 series

The exterior is made of cold-rolled steel sheet, and the working chamber is made of galvanized plate or stainless steel. Aluminum silicate fiber wool and asbestos board are filled between the exterior and the working chamber as the thermal insulation layer. Using far-infrared heating radiator, internal circulation blower, to make the air convection more balanced.

Features
· The 304 stainless steel liner is thick enough and easy to clean.
· Adopting PT100 sensor, three-core high temperature multi-strand shielded wire, strong anti-interference and high precision.
· Using solid state relay, no spark, stable voltage and current.
· Bold high-quality alloy electric furnace wire is used, which has a long service life.
· The hinge is thickened to prevent the door leaf from sagging, making it durable.
· Automatic constant temperature, automatic timing, support temperature proofreading.

TECHNICAL PARAMETERS

101-1A
Standard drying temperature: 105℃
Temperature control accuracy: ≤2℃
Maximum working temperature: 250℃
Power supply: AC220V/50Hz
Working chamber size: 350*450*450mm
Working chamber material: Galvanized plate
Heating power: 2.0KW
Dimensions: 710*550*710mm
Weight: 45kg

101-1B
Standard drying temperature: 105℃
Temperature control accuracy: ≤2℃
Maximum working temperature: 250℃
Power supply: AC220V/50Hz
Working chamber size: 350*450*450mm
Working chamber material: Stainless steel
Heating power: 2.0KW
Dimensions: 710*550*710mm
Weight: 45kg

101-2A
Standard drying temperature: 105℃
Temperature control accuracy: ≤2℃
Maximum working temperature: 250℃
Power supply: AC220V/50Hz
Working chamber size: 450*550*550mm
Working chamber material: Galvanized plate
Heating power: 3.0KW
Dimensions: 810*650*810mm
Weight: 62kg

101-2B
Standard drying temperature: 105℃
Temperature control accuracy: ≤2℃
Maximum working temperature: 250℃
Power supply: AC220V/50Hz
Working chamber size: 450*550*550mm
Working chamber material: Stainless steel
Heating power: 3.0KW
Dimensions: 810*650*810mm
Weight: 62kg

101-3A
Standard drying temperature: 105℃
Temperature control accuracy: ≤2℃
Maximum working temperature: 250℃
Power supply: AC220V/50Hz
Working chamber size: 500*600*750mm
Working chamber material: Galvanized plate
Heating power: 4.0KW
Dimensions: 860*700*1000mm
Weight: 70kg

101-3B
Standard drying temperature: 105℃
Temperature control accuracy: ≤2℃
Maximum working temperature: 250℃
Power supply: AC220V/50Hz
Working chamber size: 500*600*750mm
Working chamber material: Stainless steel
Heating power: 4.0KW
Dimensions: 860*700*1000mm
Weight: 70kg

101-4
Standard drying temperature: 105℃
Temperature control accuracy: ≤2℃
Maximum working temperature: 250℃
Power supply: AC220V/50Hz
Working chamber size: 800*800*1000mm
Working chamber material: Stainless steel
Heating power: 6.0KW
Dimensions: 1130*990*1300mm
Weight: 126kg
