TPES-2

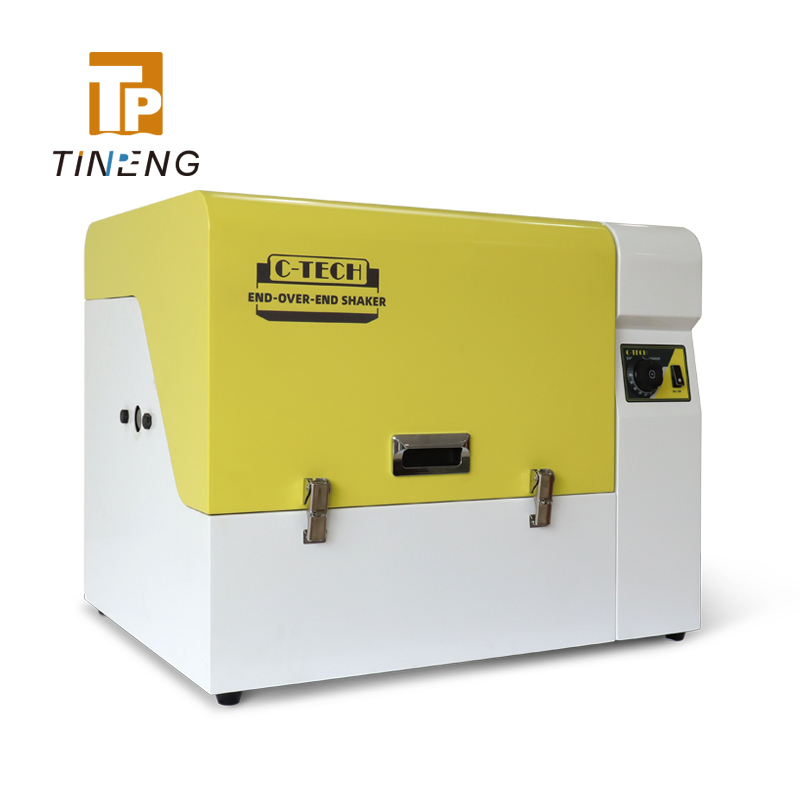

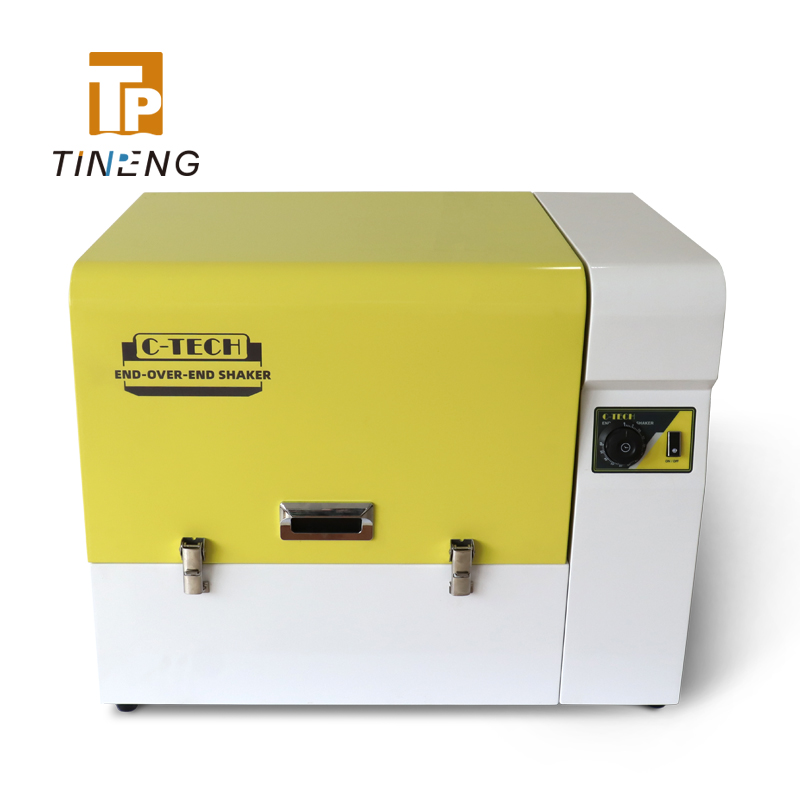

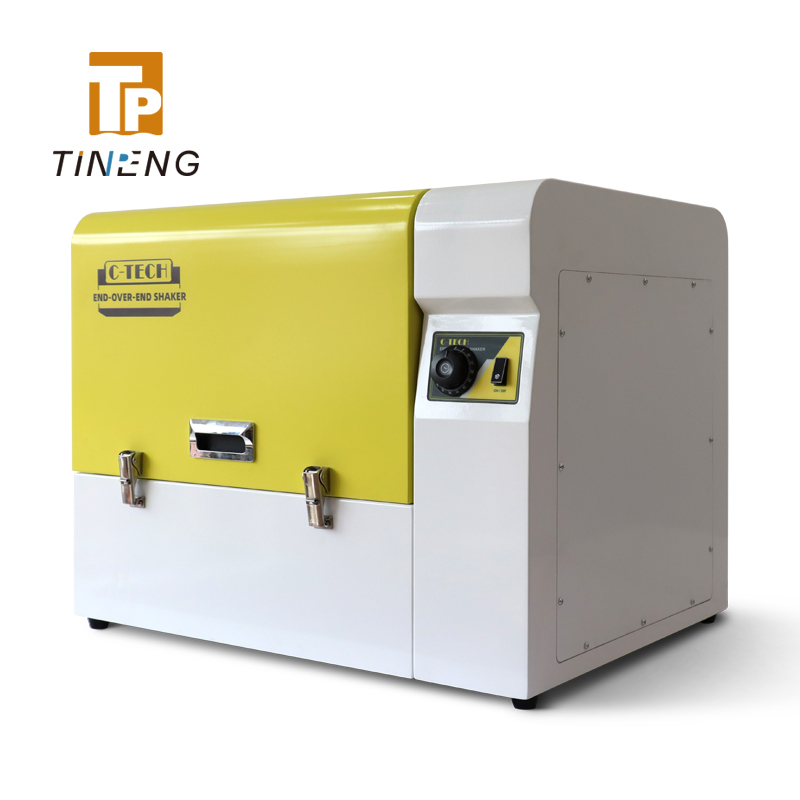

The End-Over-End Shaker TPES-2 is used for the determination of the particle density of soils by the gas jar method. This method applies for soils containing up to 10% of particles retained on a 37.5 mm sieve.

STANDARD

  • BS1377-2


Get Wholesale Price
Category:
Share:

The End-Over-End Shaker TPES-2 is used for the determination of the particle density of soils by the gas jar method. This method applies for soils containing up to 10% of particles retained on a 37.5 mm sieve.

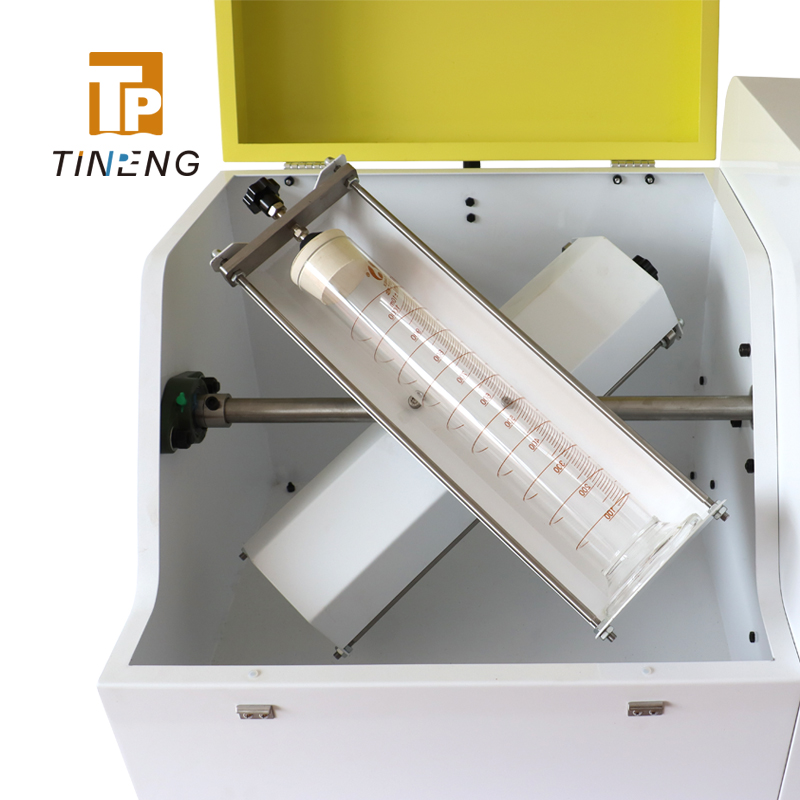

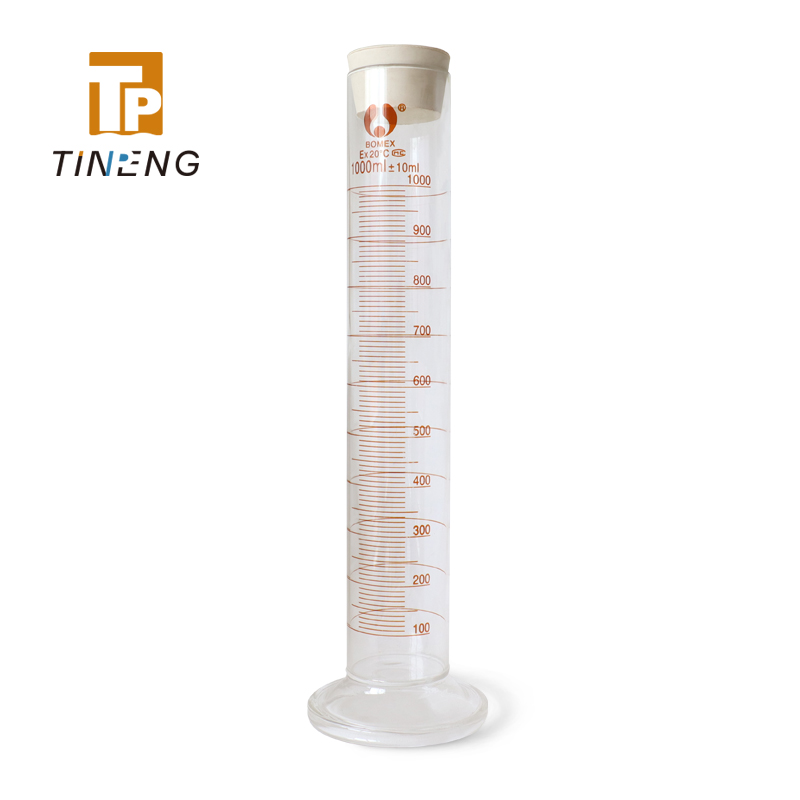

It mainly consists of a motor reducer, rotates two 1L capacity gas jars with rubber covers at about 50 rpm. For quiet operation it integrates a soundproof cabinet.


TECHNICAL PARAMETERS

Speed: 50rpm
Gas jar: 1L*2
Power: 370W
Power supply: 220V
Dimensions: 760*640*600mm
Weight: 58kg

-
