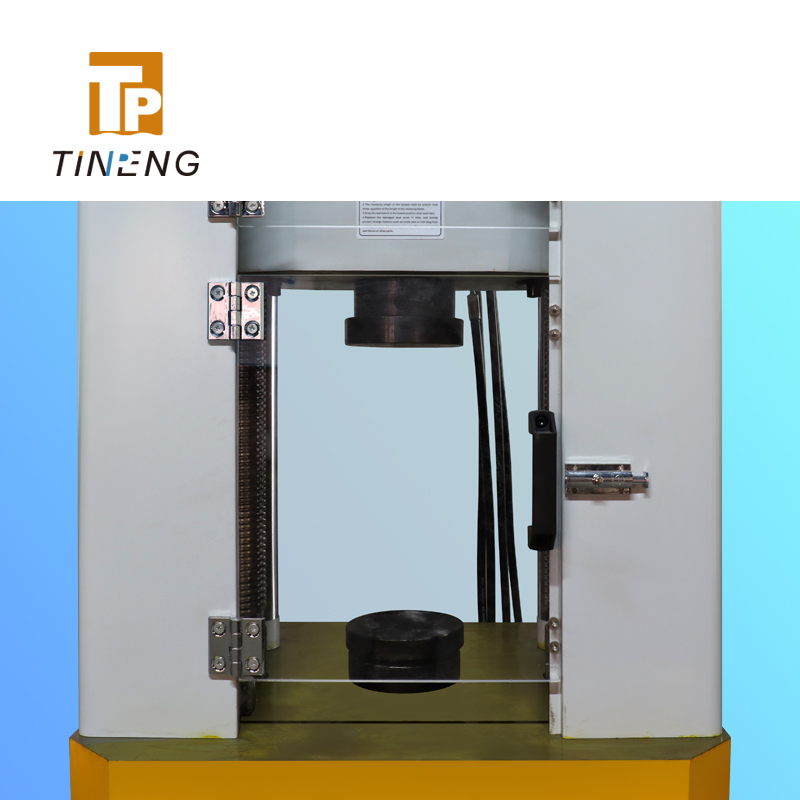

WES series
The electro-hydraulic servo universal testing machine WES series adopts hydraulic power as driving system, electro-hydraulic servo control, computer data acquisition and processing, which can realize closed-loop control and automatic detection. It satisfies the standard test of mechanical properties of metals, nonmetallic test regulations, the test is according to other standards of different materials or products, such as tensile, compression, bending, shear type test, can calculate the tensile strength, yield strength and extension strength, modulus of elasticity and other performance indicators of measured material. It can achieve closed-loop control such as equal rate loading, equal rate deformation, equal rate displacement, equal rate strain, etc.
STANDARD
- ISO 6892-1
- ISO 7500-1
Get Wholesale Price
The electro-hydraulic servo universal testing machine WES series adopts hydraulic power as driving system, electro-hydraulic servo control, computer data acquisition and processing, which can realize closed-loop control and automatic detection. It satisfies the standard test of mechanical properties of metals, nonmetallic test regulations, the test is according to other standards of different materials or products, such as tensile, compression, bending, shear type test, can calculate the tensile strength, yield strength and extension strength, modulus of elasticity and other performance indicators of measured material. It can achieve closed-loop control such as equal rate loading, equal rate deformation, equal rate displacement, equal rate strain, etc.
The testing machine can be equipped with other fixtures to complete more tests. For example, equipped with bolt fixture to perform bolt tension and load retention, equipped with bending fixture to perform bar or plate bending tests, equipped with shear fixture to perform bar shear strength tests, and the bending, shearing, splitting, and elastic modulus instruments can be added to the compression space to perform concrete and cement sample tests. In addition, the steel ball, anchor chain, fastener and other fixtures can be equipped to complete various tests.
TECHNICAL PARAMETERS
WES-100B
Max load capacity: 100kN
Load measurement range: 10-100%
Accuracy class: 0.5
Resolution: 0.01kN
Maximum tensile/compression space: Tensile ≤650mm, Compression ≤550mm
Thickness of flat specimen: 0-15mm
Diameter of round specimen: 6-20mm
Cylinder diameter: 80mm
Piston stroke: 200mm
Compression plate size: Φ148mm
Lifting speed of middle beam (mm/min): ≤300mm/min
Power supply: AC380V±10V/50Hz
Total power: 1.5kW(Oil pump motor 0.75kW)
Host dimensions: 610×520×1650mm
Control console dimensions: 1100×630×940mm
Host weight: 1200kg
WES-300B
Max load capacity: 300kN
Load measurement range: 10-100%
Accuracy class: 1
Resolution: 0.01kN
Maximum tensile/compression space: Tensile ≤650mm, Compression ≤550mm
Thickness of flat specimen: 0-15mm
Diameter of round specimen: 10-32mm
Cylinder diameter: 125mm
Piston stroke: 200mm
Compression plate size: Φ148mm
Lifting speed of middle beam (mm/min): ≤300mm/min
Power supply: AC380V±10V/50Hz
Total power: 2.5kW(Oil pump motor 1.5kW)
Host dimensions: 710×610×1900mm
Control console dimensions: 1100×630×940mm
Host weight: 1400kg
WES-600B
Max load capacity: 600kN
Load measurement range: 10-100%
Accuracy class: 1
Resolution: 0.01kN
Maximum tensile/compression space: Tensile ≤700mm, Compression ≤600mm
Thickness of flat specimen: 0-15mm
Diameter of round specimen: 13-32mm
Cylinder diameter: 170mm
Piston stroke: 200mm
Compression plate size: Φ225mm
Lifting speed of middle beam (mm/min): ≤300mm/min
Power supply: AC380V±10V/50Hz
Total power: 2.5kW(Oil pump motor 1.5kW)
Host dimensions: 750×645×2020mm
Control console dimensions: 1100×630×940mm
Host weight: 1800kg
WES-1000B
Max load capacity: 1000kN
Load measurement range: 10-100%
Accuracy class: 1
Resolution: 0.01kN
Maximum tensile/compression space: Tensile ≤700mm, Compression ≤600mm
Thickness of flat specimen: 0-40mm
Diameter of round specimen: 13-40mm
Cylinder diameter: 220mm
Piston stroke: 200mm
Compression plate size: Φ225mm
Lifting speed of middle beam (mm/min): ≤300mm/min
Power supply: AC380V±10V/50Hz
Total power: 2.5kW(Oil pump motor 1.5kW)
Host dimensions: 800×745×2150mm
Control console dimensions: 1100×630×940mm
Host weight: 2350kg
WES-1500B
Max load capacity: 1500kN
Load measurement range: 10-100%
Accuracy class: 1
Resolution: 0.01kN
Maximum tensile/compression space: Tensile ≤700mm, Compression ≤600mm
Thickness of flat specimen: 0-40mm
Diameter of round specimen: 16-50mm
Cylinder diameter: 290mm
Piston stroke: 200mm
Compression plate size: Φ220mm
Lifting speed of middle beam (mm/min): ≤240mm/min
Power supply: AC380V±10V/50Hz
Total power: 2.2kW
Host dimensions: 1150×1000×2750mm
Control console dimensions: 1100×630×940mm
Host weight: 4800kg
WES-2000B
Max load capacity: 2000kN
Load measurement range: 10-100%
Accuracy class: 1
Resolution: 0.01kN
Maximum tensile/compression space: Tensile ≤800mm, Compression ≤650mm
Thickness of flat specimen: 0-50mm
Diameter of round specimen: 20-70mm
Cylinder diameter: 300mm
Piston stroke: 250mm
Compression plate size: Φ220mm
Lifting speed of middle beam (mm/min): ≤300mm/min
Power supply: AC380V±10V/50Hz
Total power: 3kW
Host dimensions: 1200×1050×2923mm
Control console dimensions: 1100×630×940mm
Host weight: 6800kg
