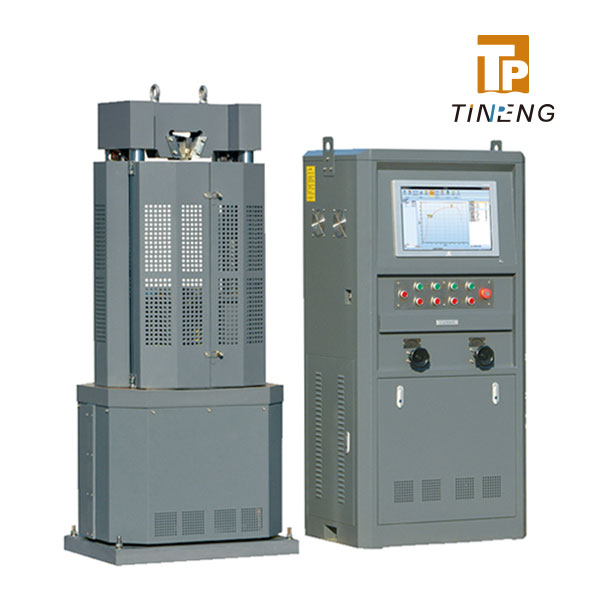

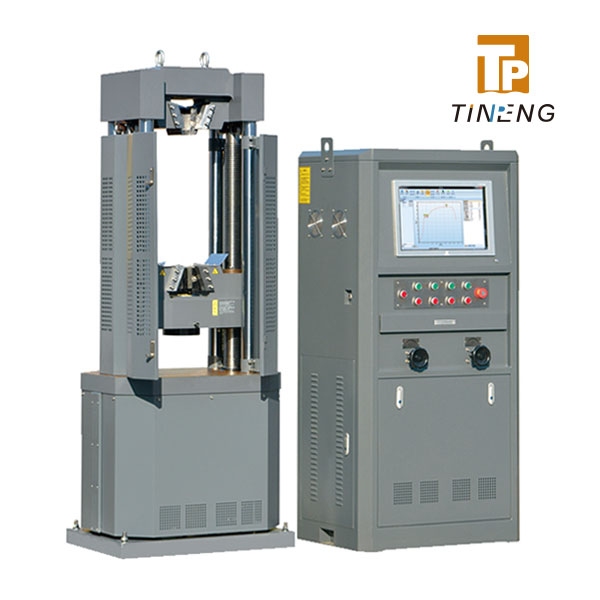

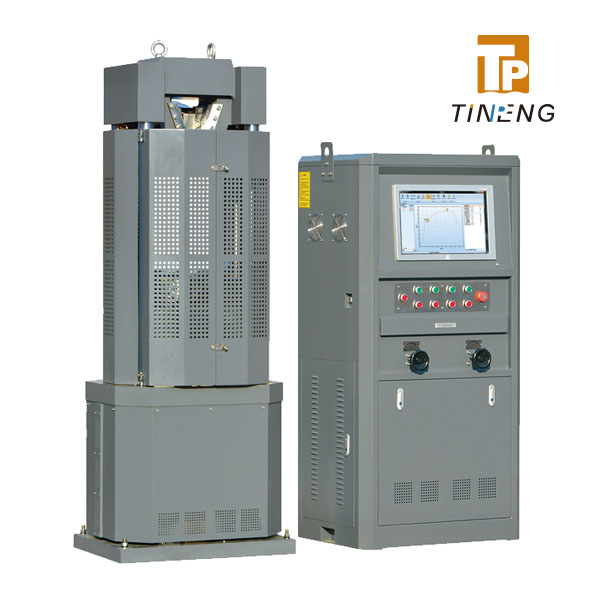

WEW series
Universal Testing Machine have a wide range of applications. A number of materials, metals in different form and shapes can be tested for variety of tests like Tension, Compression, Transverse, Bend, Shear, Brine Hardness etc. Special attachments are also available for testing of Flat Belts, Chain Links, Wire Ropes etc.
Universal Testing Machine have a wide range of applications. A number of materials, metals in different form and shapes can be tested for variety of tests like Tension, Compression, Transverse, Bend, Shear, Brine Hardness etc. Special attachments are also available for testing of Flat Belts, Chain Links, Wire Ropes etc.
TECHNICAL PARAMETERS
WEW-100B
Max load capacity(kN): 100
Structure type: Underneath oil cylinder, Six stand column, double screw, Protect cover, Coil spring buffer device, Hydraulic automatic clamping
Maximum speed of sentre sill (mm/min): 320
Compression space (mm): 500
Tensile space (mm): 600
Piston stroke (mm): 200
Diameter of round specimen (mm): Dia. 6-22
Thickness of flat specimen (mm): 0-15
Maximum distance of bending test (mm): 300
Size of compression plates (mm): Dia.110
Dimension (load frame mm): 800×620×1850
Dimension (control console mm): 800×600×1600
Power: 380V(220V optional), 50Hz(60Hz optional), 2.2kW
Weight (load frame kg): 300
Weight (control console kg): 1450
WEW-300B
Max load capacity(kN): 300
Structure type: Underneath oil cylinder, Six stand column, double screw, Protect cover, Coil spring buffer device, Hydraulic automatic clamping
Maximum speed of sentre sill (mm/min): 320
Compression space (mm): 600
Tensile space (mm): 700
Piston stroke (mm): 200
Diameter of round specimen (mm): Dia. 10-32
Thickness of flat specimen (mm): 0-20
Maximum distance of bending test (mm): 300
Size of compression plates (mm): Dia.150
Dimension (load frame mm): 800×620×1870
Dimension (control console mm): 800×600×1600
Power: 380V(220V optional), 50Hz(60Hz optional), 2.2kW
Weight (load frame kg): 300
Weight (control console kg): 1600
WEW-600B
Max load capacity(kN): 600
Structure type: Underneath oil cylinder, Six stand column, double screw, Protect cover, Coil spring buffer device, Hydraulic automatic clamping
Maximum speed of sentre sill (mm/min): 320
Compression space (mm): 600
Tensile space (mm): 700
Piston stroke (mm): 200
Diameter of round specimen (mm): Dia. 13-40
Thickness of flat specimen (mm): 0-20
Maximum distance of bending test (mm): 300
Size of compression plates (mm): Dia.200
Dimension (load frame mm): 800×620×1900
Dimension (control console mm): 800×600×1600
Power: 380V(220V optional), 50Hz(60Hz optional), 2.2kW
Weight (load frame kg): 300
Weight (control console kg): 1900
WEW-1000B
Max load capacity(kN): 1000
Structure type: Underneath oil cylinder, Six stand column, double screw, Protect cover, Coil spring buffer device, Hydraulic automatic clamping
Maximum speed of sentre sill (mm/min): 320
Compression space (mm): 600
Tensile space (mm): 700
Piston stroke (mm): 200
Diameter of round specimen (mm): Dia. 14-45
Thickness of flat specimen (mm): 0-40
Maximum distance of bending test (mm): 300
Size of compression plates (mm): Dia.225
Dimension (load frame mm): 900×700×2250
Dimension (control console mm): 800×600×1600
Power: 380V(220V optional), 50Hz(60Hz optional), 2.2kW
Weight (load frame kg): 300
Weight (control console kg): 2600
