WAW series

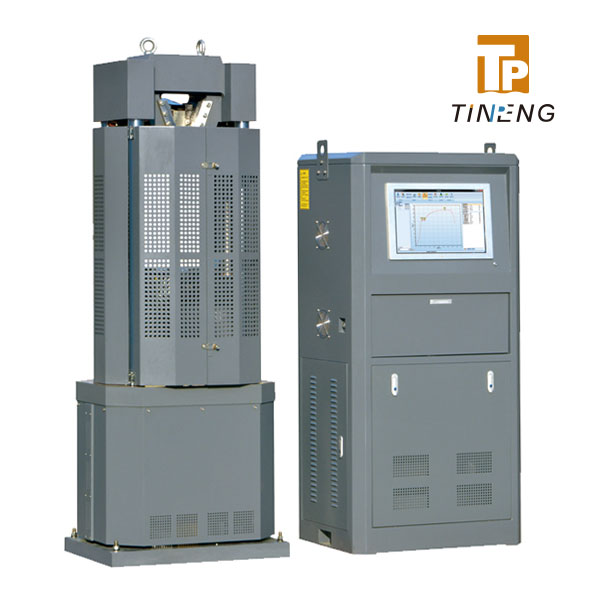

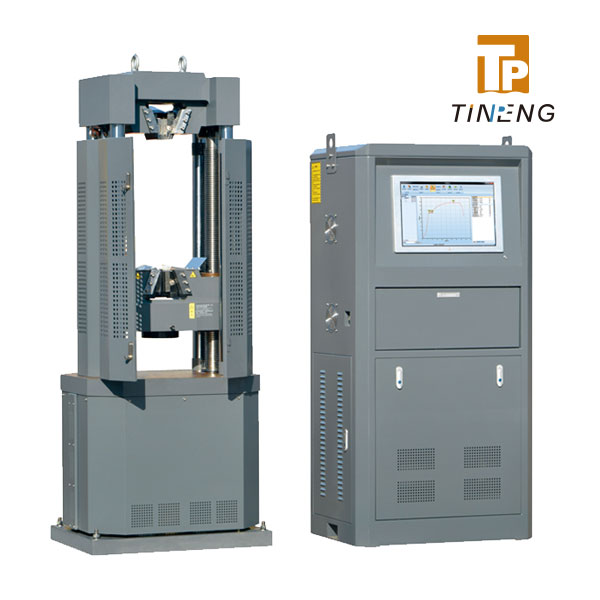

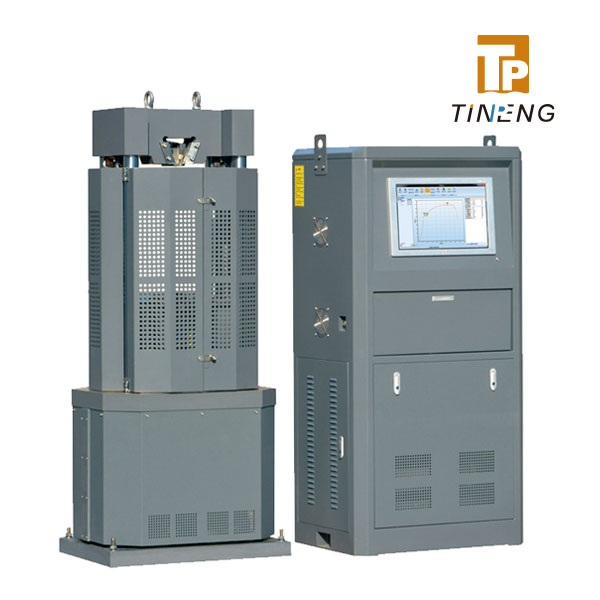

Universal Testing Machine have a wide range of applications. A number of materials, metals in different form and shapes can be tested for variety of tests like Tension, Compression, Transverse, Bend, Shear, Brine Hardness etc. Special attachments are also available for testing of Flat Belts, Chain Links, Wire Ropes etc.

Features
· Dual-test space design, under-cylinder, four-column-double-screw frame structure, compact structure;
· Hydraulic clamping, don't skip, and can be increased special fixture with the shoulder, thread, strand;
· Durable chrome-plated column for easy cleaning and a long-lasting-life;
· 12v Hand operation box makes the operation more convenient and flexible;
· High-precision load cell directly measures force, strong resistance to lateral and impact;
· By using high pressure internal gear pump, the noise is less than 60 db under full load;
· The hydraulic system uses pressure servo technology, the system pressure always follow up with the working pressure, and thus more energy saving;
· While computer-controlled, with manual operation so that customers have more choices to use;
· With hardware and software overload protection;
· Advanced and reliable PCI bus technology to improve the speed of data acquisition, control signal response and control accuracy.

TECHNICAL PARAMETERS

WAW-100B
Max load capacity(kN): 100
Structure type: Underneath oil cylinder, Four stand column, double screw, Protect cover, Coil spring buffer device
Accuracy class: Class one(Class 0.5)
Test force range: 1%-100% F.S
Test force accuracy: ±1%(±0.5%)
Measuring range of deformation: 1%-100% F.S
Deformation accuracy: ±1%(±0.5%)
Displacement accuracy: ±1%
Displacement resolution: 0.001mm
Relative error of stress-controlled velocity: ±2%(±1%)
Speed setting accuracy: ±1%(±0.5%)
Adjusting range of strain-controlled velocity: 0.00025/s-0.0025/s
Relative of force/extension/displacement-control: ±2%(±1%)
Range of force/extension/displacement-control: 0.3%-100% F.S
Relative error of force/extension/displacement-control: ≤1%
Lifting speed of middle beam (mm/min): 320
Compression space (mm): 500
Tensile space (mm): 600
Piston stroke (mm): 200
Diameter of round specimen (mm): Dia. 6-22
Thickness of flat specimen (mm): 0-15
Maximum distance of bending test (mm): 300
Size of compression plates (mm): Dia.110
Dimension (load frame mm): 800×620×1850
Dimension (control console mm): 800×600×1600
Weight (load frame kg): 300
Weight (control console kg): 1450

WAW-300B
Max load capacity(kN): 300
Structure type: Underneath oil cylinder, Four stand column, double screw, Protect cover, Coil spring buffer device
Accuracy class: Class one(Class 0.5)
Test force range: 1%-100% F.S
Test force accuracy: ±1%(±0.5%)
Measuring range of deformation: 1%-100% F.S
Deformation accuracy: ±1%(±0.5%)
Displacement accuracy: ±1%
Displacement resolution: 0.001mm
Relative error of stress-controlled velocity: ±2%(±1%)
Speed setting accuracy: ±1%(±0.5%)
Adjusting range of strain-controlled velocity: 0.00025/s-0.0025/s
Relative of force/extension/displacement-control: ±2%(±1%)
Range of force/extension/displacement-control: 0.3%-100% F.S
Relative error of force/extension/displacement-control: ≤1%
Lifting speed of middle beam (mm/min): 320
Compression space (mm): 600
Tensile space (mm): 700
Piston stroke (mm): 200
Diameter of round specimen (mm): Dia. 10-32
Thickness of flat specimen (mm): 0-20
Maximum distance of bending test (mm): 300
Size of compression plates (mm): Dia.150
Dimension (load frame mm): 800×620×1900
Dimension (control console mm): 800×600×1600
Weight (load frame kg): 300
Weight (control console kg): 1600

WAW-600B
Max load capacity(kN): 600
Structure type: Underneath oil cylinder, Four stand column, double screw, Protect cover, Coil spring buffer device
Accuracy class: Class one(Class 0.5)
Test force range: 1%-100% F.S
Test force accuracy: ±1%(±0.5%)
Measuring range of deformation: 1%-100% F.S
Deformation accuracy: ±1%(±0.5%)
Displacement accuracy: ±1%
Displacement resolution: 0.001mm
Relative error of stress-controlled velocity: ±2%(±1%)
Speed setting accuracy: ±1%(±0.5%)
Adjusting range of strain-controlled velocity: 0.00025/s-0.0025/s
Relative of force/extension/displacement-control: ±2%(±1%)
Range of force/extension/displacement-control: 0.3%-100% F.S
Relative error of force/extension/displacement-control: ≤1%
Lifting speed of middle beam (mm/min): 320
Compression space (mm): 600
Tensile space (mm): 700
Piston stroke (mm): 200
Diameter of round specimen (mm): Dia. 13-40
Thickness of flat specimen (mm): 0-20
Maximum distance of bending test (mm): 300
Size of compression plates (mm): Dia.200
Dimension (load frame mm): 800×620×2000
Dimension (control console mm): 800×600×1600
Weight (load frame kg): 300
Weight (control console kg): 1900

WAW-1000B
Max load capacity(kN): 1000
Structure type: Underneath oil cylinder, Four stand column, double screw, Protect cover, Coil spring buffer device
Accuracy class: Class one(Class 0.5)
Test force range: 1%-100% F.S
Test force accuracy: ±1%(±0.5%)
Measuring range of deformation: 1%-100% F.S
Deformation accuracy: ±1%(±0.5%)
Displacement accuracy: ±1%
Displacement resolution: 0.001mm
Relative error of stress-controlled velocity: ±2%(±1%)
Speed setting accuracy: ±1%(±0.5%)
Adjusting range of strain-controlled velocity: 0.00025/s-0.0025/s
Relative of force/extension/displacement-control: ±2%(±1%)
Range of force/extension/displacement-control: 0.3%-100% F.S
Relative error of force/extension/displacement-control: ≤1%
Lifting speed of middle beam (mm/min): 320
Compression space (mm): 600
Tensile space (mm): 700
Piston stroke (mm): 200
Diameter of round specimen (mm): Dia. 14-45
Thickness of flat specimen (mm): 0-40
Maximum distance of bending test (mm): 300
Size of compression plates (mm): Dia.225
Dimension (load frame mm): 900×700×2300
Dimension (control console mm): 800×600×1600
Weight (load frame kg): 300
Weight (control console kg): 2600
