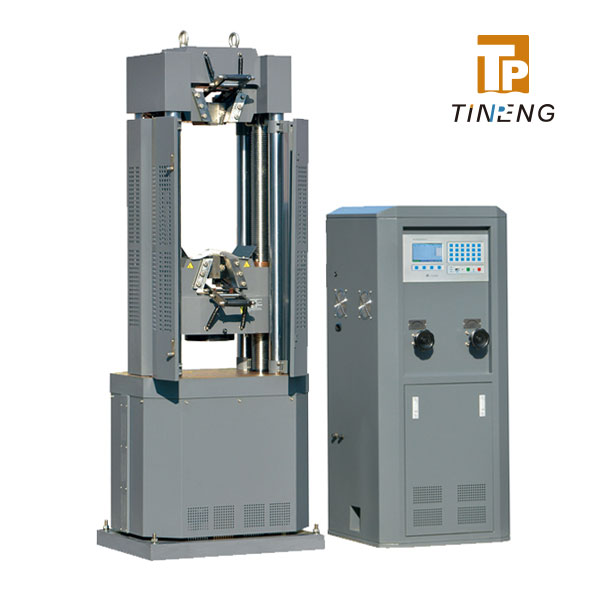

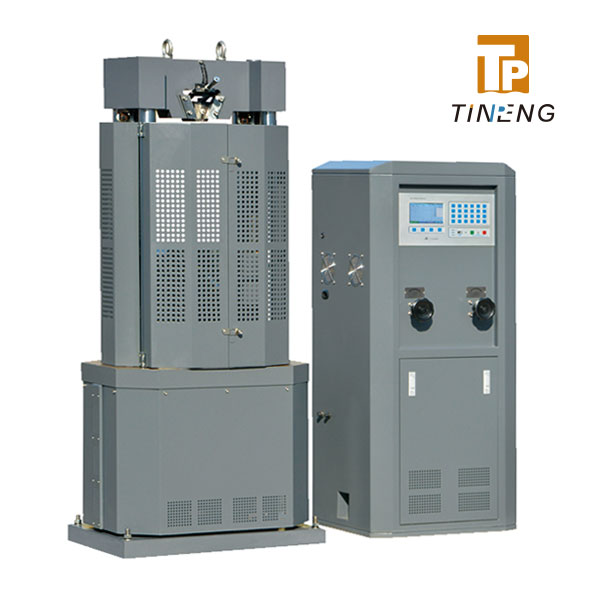

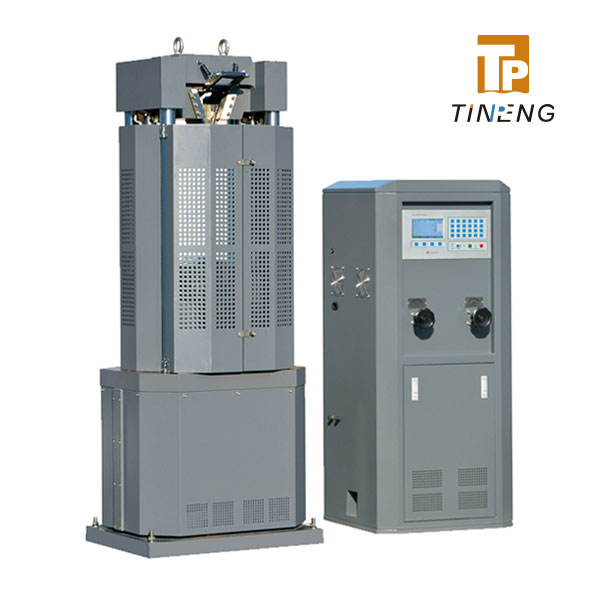

WE series
Universal Testing Machine have a wide range of applications. A number of materials, metals in different form and shapes can be tested for variety of tests like Tension, Compression, Transverse, Bend, Shear, Brine Hardness etc. Special attachments are also available for testing of Flat Belts, Chain Links, Wire Ropes etc.
Universal Testing Machine have a wide range of applications. A number of materials, metals in different form and shapes can be tested for variety of tests like Tension, Compression, Transverse, Bend, Shear, Brine Hardness etc. Special attachments are also available for testing of Flat Belts, Chain Links, Wire Ropes etc.
Aviation aluminum color screen, digital display test force, deformation and load curve, automatic record test data, print the test results. It also can connect with computer to display and process the test date.
TECHNICAL PARAMETERS
WE-100B
Max load capacity(kN): 100
Structure type: Underneath oil cylinder, Six stand column, double screw, Protect cover, Coil spring buffer device
Accuracy class: Class one(Class 0.5)
Sensor type: Load sensor
Maximum speed of sentre sill (mm/min): 320
Compression space (mm): 500
Tensile space (mm): 600
Piston stroke (mm): 200
Diameter of round specimen (mm): Dia. 6-22
Thickness of flat specimen (mm): 0-15
Maximum distance of bending test (mm): 300
Size of compression plates (mm): Dia.110
Dimension (load frame mm): 800×620×1850
Dimension (control console mm): 550×500×1200
Power: 380V(220V optional), 50Hz(60Hz optional), 1.1kW
Weight (load frame kg): 160
Weight (control console kg): 1400
WE-300B
Max load capacity(kN): 300
Structure type: Underneath oil cylinder, Six stand column, double screw, Protect cover, Coil spring buffer device
Accuracy class: Class one(Class 0.5)
Sensor type: Load sensor
Maximum speed of sentre sill (mm/min): 320
Compression space (mm): 600
Tensile space (mm): 700
Piston stroke (mm): 200
Diameter of round specimen (mm): Dia. 10-32
Thickness of flat specimen (mm): 0-20
Maximum distance of bending test (mm): 300
Size of compression plates (mm): Dia.150
Dimension (load frame mm): 800×620×1870
Dimension (control console mm): 550×500×1200
Power: 380V(220V optional), 50Hz(60Hz optional), 1.8kW
Weight (load frame kg): 160
Weight (control console kg): 1500
WE-600B
Max load capacity(kN): 600
Structure type: Underneath oil cylinder, Six stand column, double screw, Protect cover, Coil spring buffer device
Accuracy class: Class one(Class 0.5)
Sensor type: Pressure sensor
Maximum speed of sentre sill (mm/min): 320
Compression space (mm): 600
Tensile space (mm): 700
Piston stroke (mm): 200
Diameter of round specimen (mm): Dia. 13-40
Thickness of flat specimen (mm): 0-20
Maximum distance of bending test (mm): 300
Size of compression plates (mm): Dia.200
Dimension (load frame mm): 800×620×1900
Dimension (control console mm): 550×500×1200
Power: 380V(220V optional), 50Hz(60Hz optional), 2.2kW
Weight (load frame kg): 160
Weight (control console kg): 1800
WE-1000B
Max load capacity(kN): 600
Structure type: Underneath oil cylinder, Six stand column, double screw, Protect cover, Coil spring buffer device
Accuracy class: Class one(Class 0.5)
Sensor type: Pressure sensor
Maximum speed of sentre sill (mm/min): 320
Compression space (mm): 600
Tensile space (mm): 700
Piston stroke (mm): 200
Diameter of round specimen (mm): Dia. 14-45
Thickness of flat specimen (mm): 0-40
Maximum distance of bending test (mm): 300
Size of compression plates (mm): Dia.225
Dimension (load frame mm): 900×700×2250
Dimension (control console mm): 550×500×1200
Power: 380V(220V optional), 50Hz(60Hz optional), 2.2kW
Weight (load frame kg): 160
Weight (control console kg): 2500
