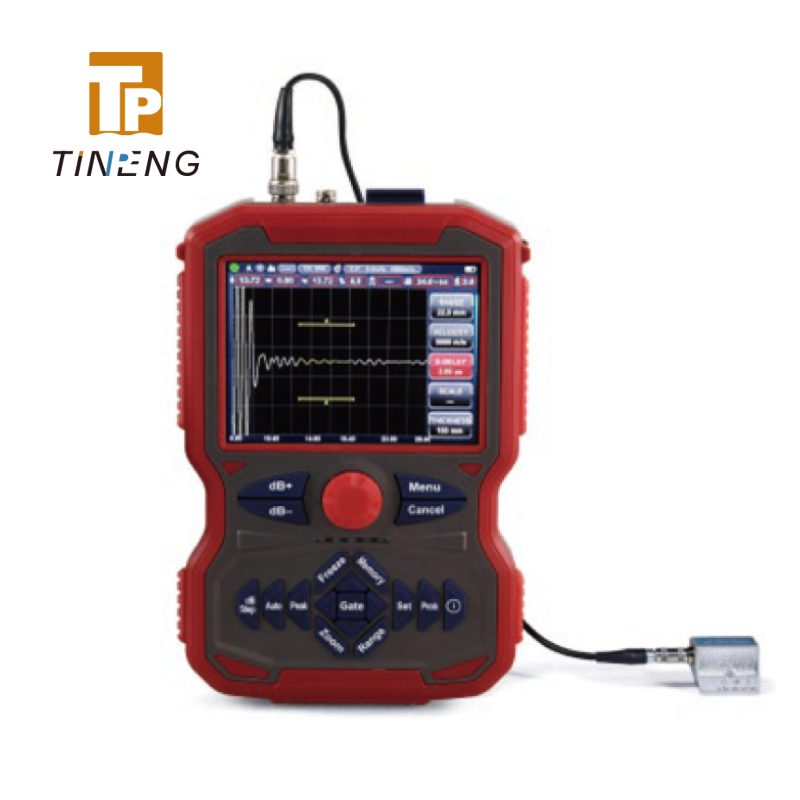

UEE981 SERIES

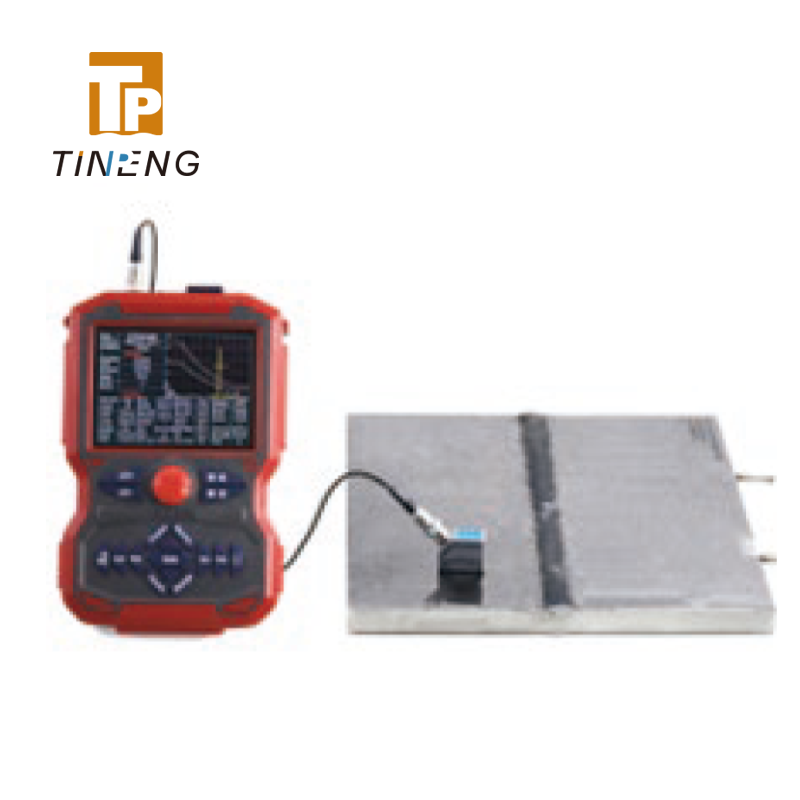

Quickly and accurately detection, positioning, evaluation and diagnosis of various flaws in the work-piece, such as welding cracks,defects and etc.It Widely used in Steel Structure Industry,electric power,petrochemical, boiler and pressure vessel, railway transportation, automobiles, machinery, and other fields.
Quickly and accurately detection, positioning, evaluation and diagnosis of various flaws in the work-piece, such as welding cracks,defects and etc.It Widely used in Steel Structure Industry,electric power,petrochemical, boiler and pressure vessel, railway transportation, automobiles, machinery, and other fields.
Features
-IP65, portable and ultra-thin design
-Square wave pulser, PRF up to 3 kHz for fast scanning / detecting
-High numbers of digital filters, suitable for nearly any application
-With standard DAC/ TCG /DGS / AVG function, Color B-Scan, C-Scan
-Reports can be automatically formed and viewed on the equipment,and export to USB directly
-Stograge: 1000 groups of data (expandable); External USB for directly storage (unlimited memory)
-Language: English /German / Turkish /Italian（expandable)
TECHNICALSPECIFICATIONS
Uee981Smart
Uee981Smart
Model:Uee981Smart
Scan Range(mm):0~10000mm
Velocity Range (m/s):1000~15000
Gain Range(dB):110dB
Operating Frequency:0.2~20MHz
Pulse Repetition Frequency:10~1500Hz
Vertical linearity error:≤2.0%
Horizontal linearity error:≤0.2%
Sampling Frequency:150Mhz
Transducer Frequency Max:15MHz
Dynamic Range:≥38dB
Resolution:≥40dB
Testing sensitivity:≥65dB
Pulse amplitude:100V~500V
Pulse Width:0.03~0.51μs
Transducer Damping:50Ω~400Ω
Interface for Probe cable:BNC (Optional LEMO)
Working mode:7 modes: Straight / Angle/ Dual crystal probe, Penetrating detection and etc.
Power Supply:100-240V 50-60Hz;DC 9V Rechargeable Li-ion battery, 10+ hours life
Dimension & Weight:Dimension 240× 153x38mm; Net weight 0.98kg (with Li-ion battery)
Environment:Temperature -10~50 C,Humidity 20~95%RH
Uee981Optimum
Model:Uee981Optimum
Scan Range(mm):0~12000mm
Velocity Range (m/s):500~18000
Gain Range(dB):120dB
Operating Frequency:0.2~25MHz
Pulse Repetition Frequency:10~2500Hz
Vertical linearity error:≤2.0%
Horizontal linearity error:≤0.2%
Sampling Frequency:200Mhz
Transducer Frequency Max:20MHz
Dynamic Range:≥38dB
Resolution:≥40dB
Testing sensitivity:≥65dB
Pulse amplitude:100V~500V
Pulse Width:0.03~0.51μs
Transducer Damping:50Ω~400Ω
Interface for Probe cable:BNC (Optional LEMO)
Working mode:7 modes: Straight / Angle/ Dual crystal probe, Penetrating detection and etc.
Power Supply:100-240V 50-60Hz;DC 9V Rechargeable Li-ion battery, 10+ hours life
Dimension & Weight:Dimension 240× 153x38mm; Net weight 0.98kg (with Li-ion battery)
Environment:Temperature -10~50 C,Humidity 20~95%RH
Uee981Expert
Model:Uee981Expert
Scan Range(mm):0~15000mm
Velocity Range (m/s):100~20000
Gain Range(dB):120dB
Operating Frequency:0.2~35MHz
Pulse Repetition Frequency:10~10000Hz
Vertical linearity error:≤1.5%
Horizontal linearity error:≤0.2%
Sampling Frequency:320Mhz
Transducer Frequency Max:30MHz
Dynamic Range:≥38dB
Resolution:≥40dB
Testing sensitivity:≥65dB
Pulse amplitude:100V~500V
Pulse Width:0.03~0.51μs
Transducer Damping:50Ω~400Ω
Interface for Probe cable:BNC (Optional LEMO)
Working mode:7 modes: Straight / Angle/ Dual crystal probe, Penetrating detection and etc.
Power Supply:100-240V 50-60Hz;DC 9V Rechargeable Li-ion battery, 10+ hours life
Dimension & Weight:Dimension 240× 153x38mm; Net weight 0.98kg (with Li-ion battery)
Environment:Temperature -10~50 C,Humidity 20~95%RH
