TPJA-20

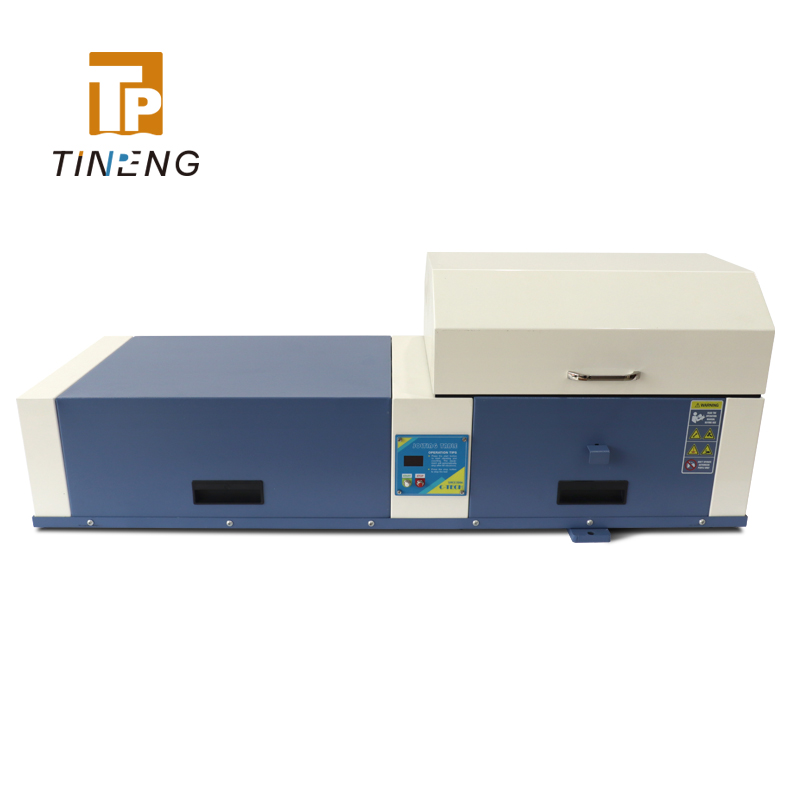

Jolting Table is used for compacting of cement specimens in 40x40x160mm three gang mould. It consists of a table holding the mould, seated on a rotating cam driven at 60 rpm. The jolting group is connected to the table by bayonet joints for quick checking of the weights. The drop height 15.0 mm is adjustable to keep it correct also after intensive uses.
Jolting Table is used for compacting of cement specimens in 40x40x160mm three gang mould. It consists of a table holding the mould, seated on a rotating cam driven at 60 rpm. The jolting group is connected to the table by bayonet joints for quick checking of the weights. The drop height 15.0 mm is adjustable to keep it correct also after intensive uses.
TECHNICAL PARAMETERS
Total weight of vibration part: 13.75kg ±0.25kg
Drop height: 15mm ±0.3mm
Vibration frequency: 60times/60s±2s
Total weight of two arms and cross bracing: 2.25kg ±0.25kg
Distance from table center to pivot center of the two arms: 800mm ±1mm

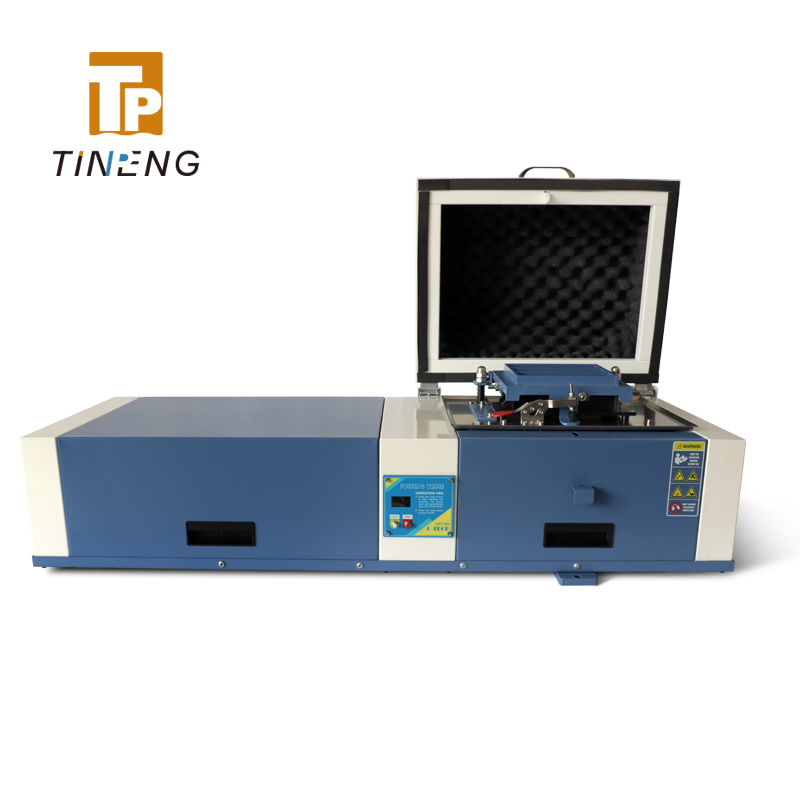

Soundproof cover locking method: Car trunk type lock

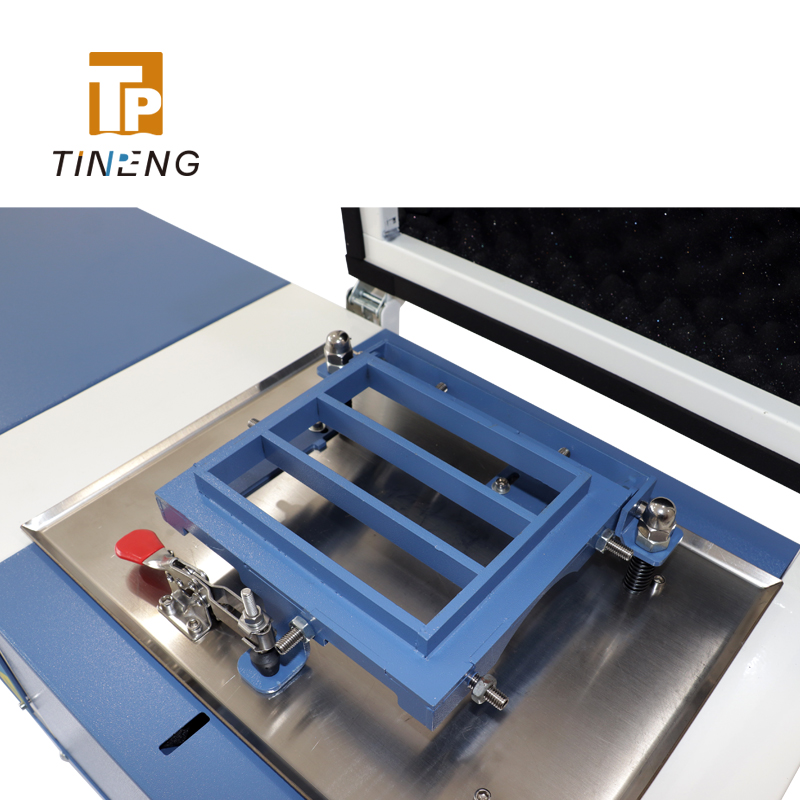

Test mould positioning method: Roller latch positioning
Motor model: 90TDY060-T
Motor revolution: 60r/min
Motor power: 70W
Power supply: 220V
Net weight: 62kg
Dimensions: 1210×395×405mm
