55-C0159/VT-M68/VT-M101

For compacting concrete specimen in the laboratory vibrating table mounted on a steel stand, supplied with clamp assembly.

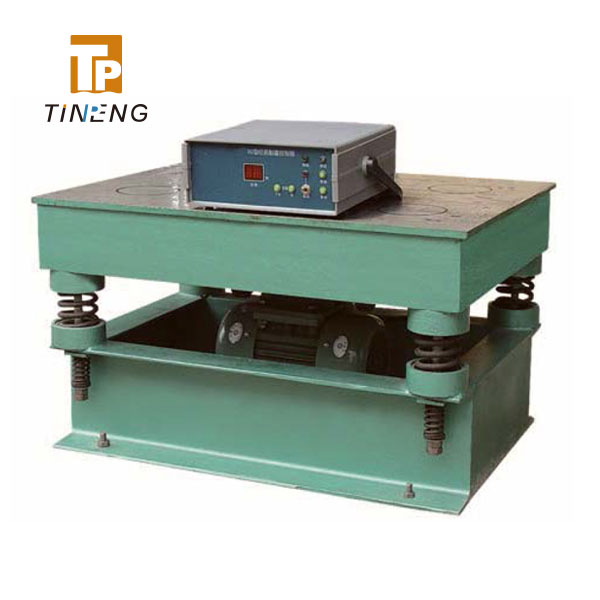

55-C0159 Vibrating table with clomping device

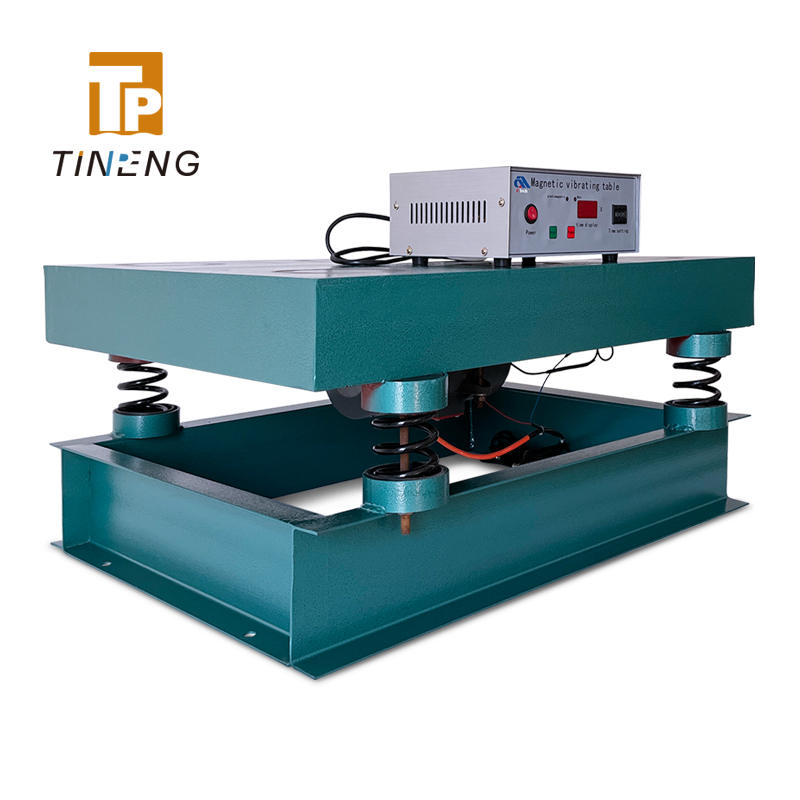

VT-M68/VT-M101 Magnetic vibrating table

TECHNICAL PARAMETERS

55-C0159 Vibrating table with clomping device
Table size: 600 × 800 mm
Amplitude: 0.3-0.6 mm
Vibrating frequency: 3000 vibrations/min
Power: 220 V, 0.3 kW
Weight: 50KG

VT-M68/VT-M101 Magnetic vibrating table
Table size: VT-M68: 600 × 800 mm,
                 VT-M101: 1 m × 1 m
Amplitude: 0.5 mm
Num. Of specimens for compaction:
                 6pcs of 1503 mould
                 3pcs of 1003 tri-mould
Vibrating frequency: 50 Hz
Power: 380 V, 1.1 kW
