CM series
Test procedures require that specimens are cast in a number of standard sizes convenient for compressive and flexural strength determination. The engineering tolerances specified for moulds are very stringent and the internal finish of the surface must be of a high order to comply with the recommendations laid down in many international standards. Moulds must not deform during manufacture of concrete specimens if the specimen dimensions are to be maintained.
STANDARD
- EN 12390-1
- BS1881
Get Wholesale Price
Test procedures require that specimens are cast in a number of standard sizes convenient for compressive and flexural strength determination. The engineering tolerances specified for moulds are very stringent and the internal finish of the surface must be of a high order to comply with the recommendations laid down in many international standards. Moulds must not deform during manufacture of concrete specimens if the specimen dimensions are to be maintained.

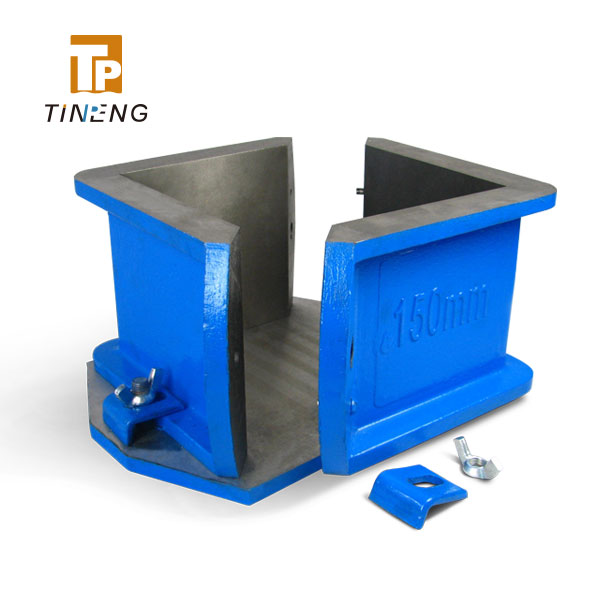

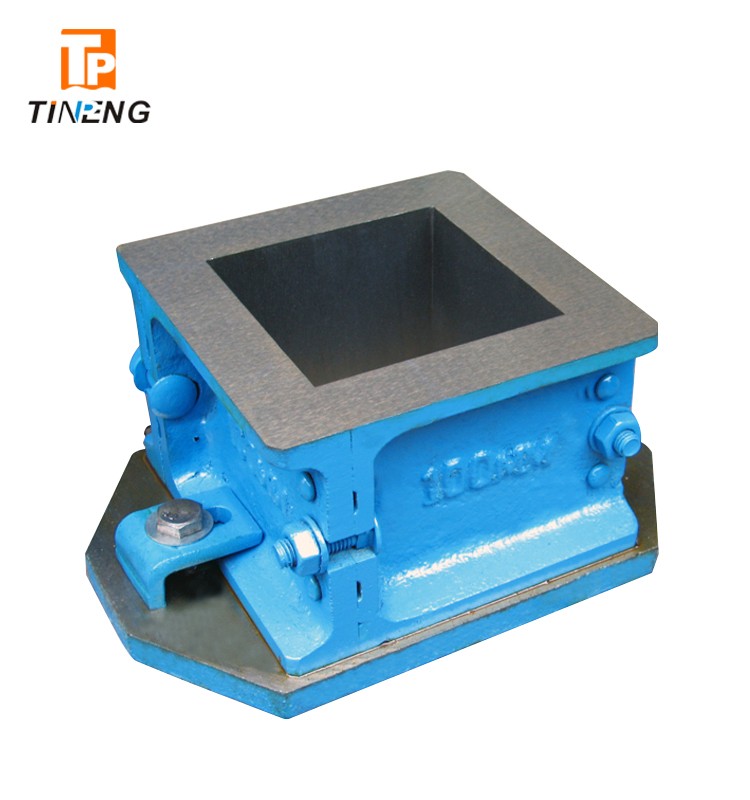

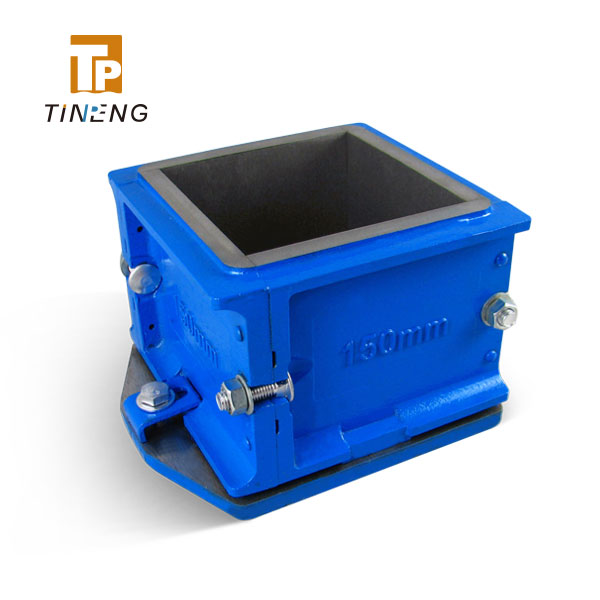

CM-FA CAST IRON CUBE MOULD
4-part with clamp attached base plate. Cube mould for concrete hardened testing. Material is cast iron. Machined surface finished by flat grinding machine. No distortion during specimen preparation.
CM-FB CAST IRON CUBE MOULD
4-part with clamp attached base plate.

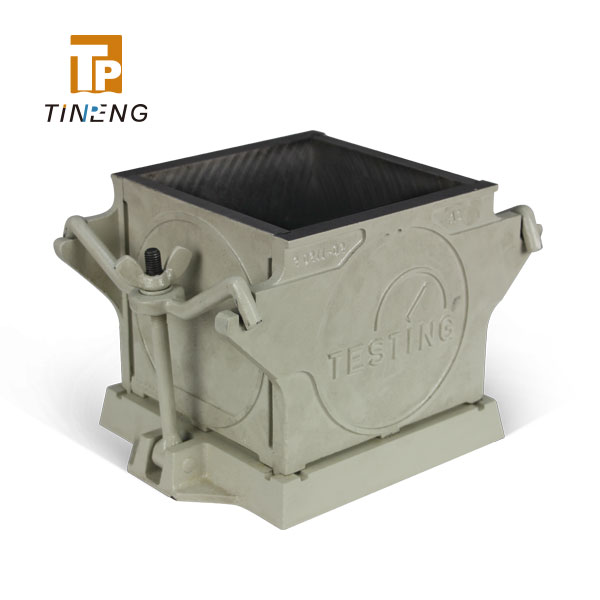

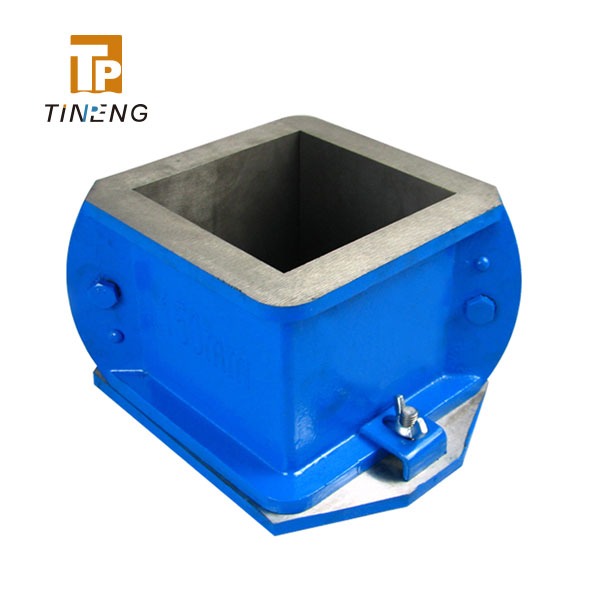

CM-FC CAST IRON CUBE MOULD
Build up by four parts 45 degree wall, save time to assemble or reassemble, we may regard two connect wall as one wall, only want to disjoin two parts together.

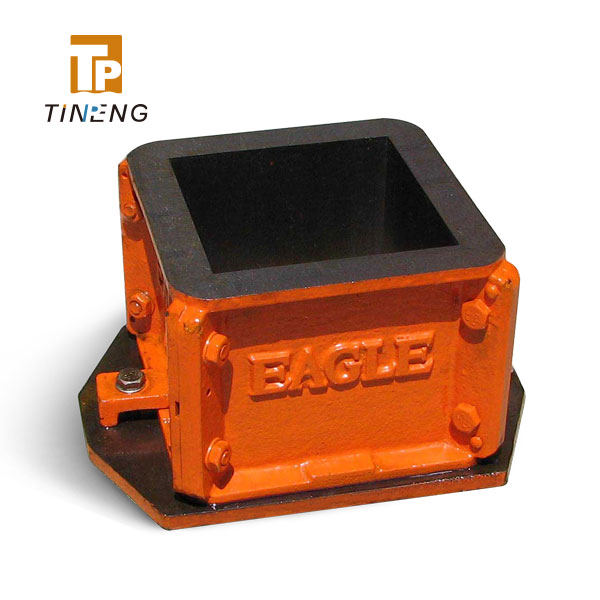

CM-E CAST IRON CUBE MOULD

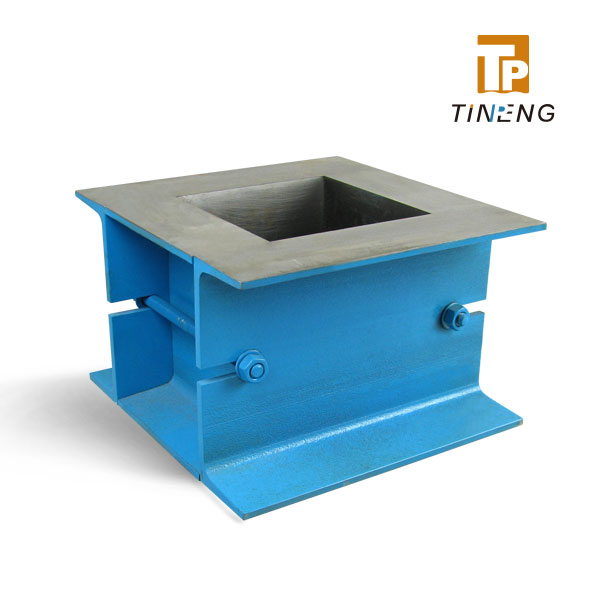

CM-T CAST IRON CUBE MOULD
It is a new design product, one blot connect two parts in every side. Save time to assemble or disassemble the mould.
Base clamps on this mould are slotted.
CM-FD150 CAST IRON CUBE MOULD
Manufactured in accordance with dimensions and tolerances stated in EN 12390-1. Four part with base plate. The moulds are designed to be durable, corrosion resistant and easy to clean.

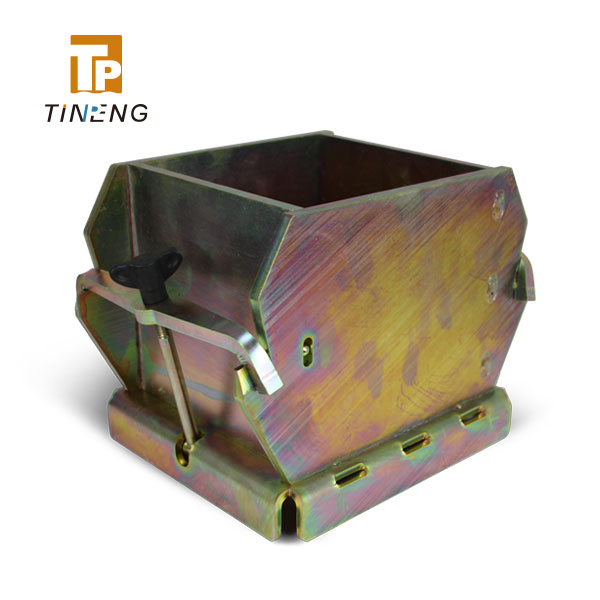

CM-FS150 STEEL CUBE MOULD
CM-SA150 STEEL CUBE MOULD

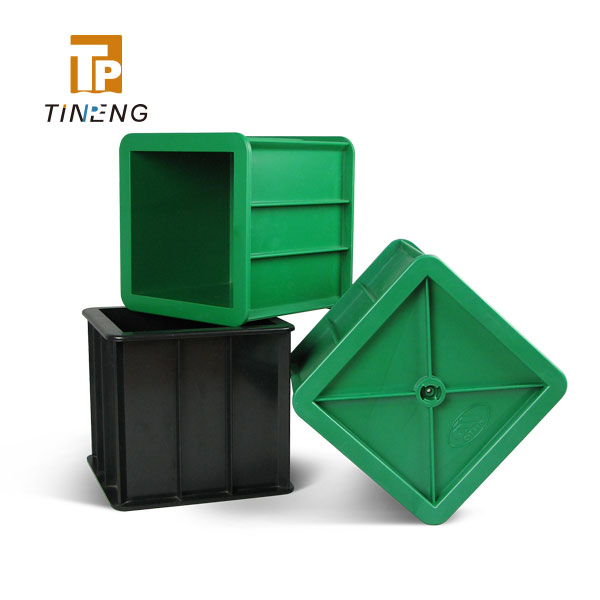

CM-P PLASTIC CUBE MOULD
It is the best economic mould in this range, it is made of ABS plastic and use special self motion injection plastic machine to squeezed out, one time finished and easy to carry.

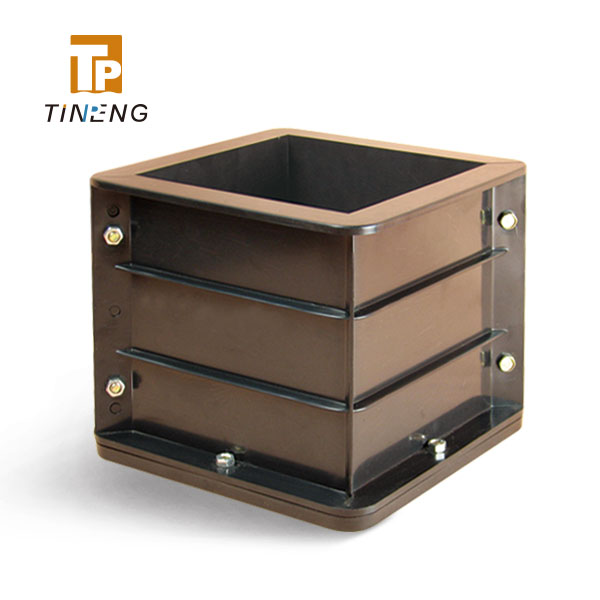

CM-PA150 PLASTIC CUBE MOULD
It is reusable and sturdy in this range, it is light and easy to carry, made in collapsible-two parts for quick to install. It will not rust and easy to maintain.

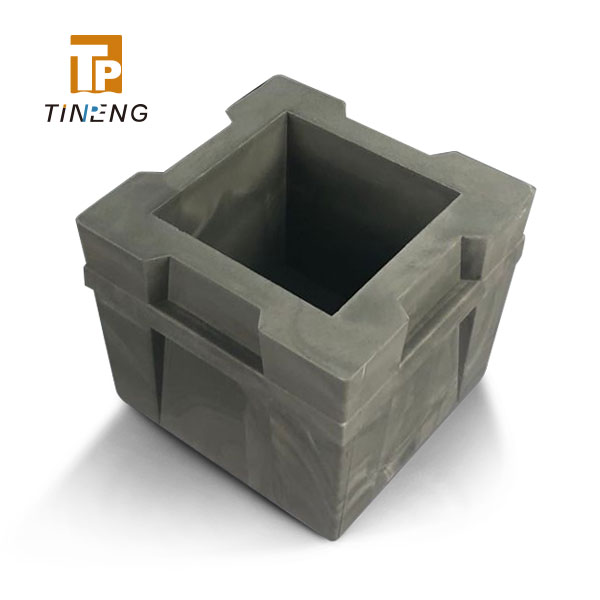

CM-CU150 POLYURETHANE CUBE MOULD
A one piece mould manufactured from a robust plastic which is resistant to shock and abrasion. Ideal for field use, the specimen is ejected from the mould by compressed air requiring only a simple clean and oiling before being ready for use again. Meets the requirements of EN 12390-1.
TECHNICAL PARAMETERS
CM-FA CAST IRON CUBE MOULD
CM-FA100 100×100×100mm 9.5kg
CM-FA150 150×150×150mm 18kg
CM-FB CAST IRON CUBE MOULD
CM-FB100 100×100×100mm 9kg
CM-FB150 150×150×150mm 16kg
CM-FC CAST IRON CUBE MOULD
CM-FC100 100×100×100mm 9kg
CM-FC150 150×150×150mm 16kg
CM-E CAST IRON CUBE MOULD
CM-E100 100×100×100mm 5.5kg
CM-E150 150×150×150mm 10kg
CM-E200 200×200×200mm 16kg
CM-T CAST IRON CUBE MOULD
CM-T100 100×100×100mm 9kg
CM-T150 150×150×150mm 16kg
CM-FD150 CAST IRON CUBE MOULD
CM-FD150 150×150×150mm 13kg
CM-FS150 STEEL CUBE MOULD
CM-FS150 150×150×150mm 8.8kg
CM-SA150 STEEL CUBE MOULD
CM-SA150 150×150×150mm 15.8kg
CM-P PLASTIC CUBE MOULD
CM-P100 100×100×100mm 0.7kg
CM-P150 150×150×150mm 0.9kg
CM-PT150 150×150×150mm 1.0kg
CM-PA150 PLASTIC CUBE MOULD
CM-PA150 150×150×150mm 2.7kg
CM-CU150 POLYURETHANE CUBE MOULD
CM-CU150 150×150×150mm 1.6kg

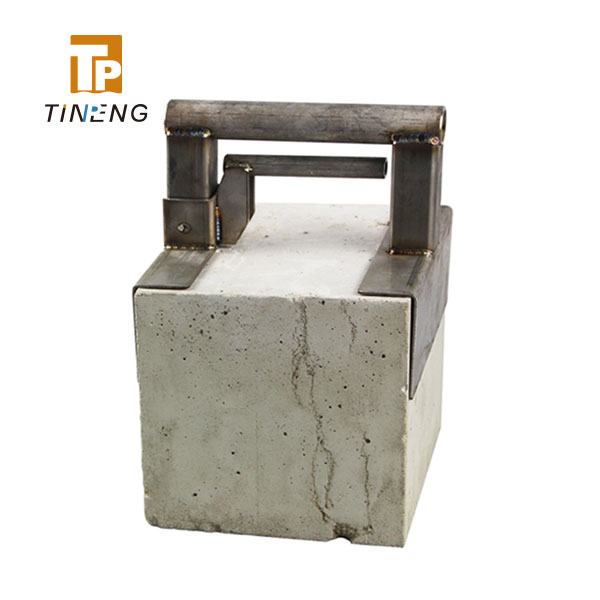

Specimen clamping tool ST-J150
Tryout size:150x150 mm
Weight:0.85kg
