CM/BM series
These beam moulds are designed to produce accurate specimens while avoiding distortion over the length of the mould. The top brim is special design and avoids defacing the machined surface. Inner surface are all machined by grind machine.
STANDARD
- EN 12390-1, -2
Get Wholesale Price
These beam moulds are designed to produce accurate specimens while avoiding distortion over the length of the mould. The top brim is special design and avoids defacing the machined surface. Inner surface are all machined by grind machine.

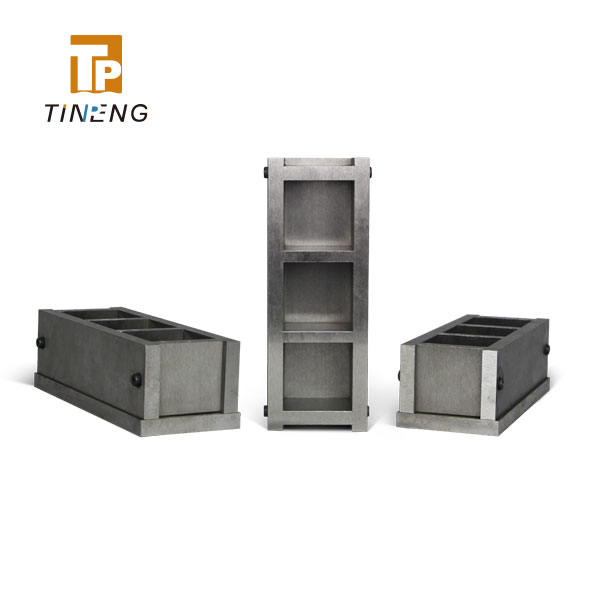

CM-GS STEEL THREE GANG MOULD

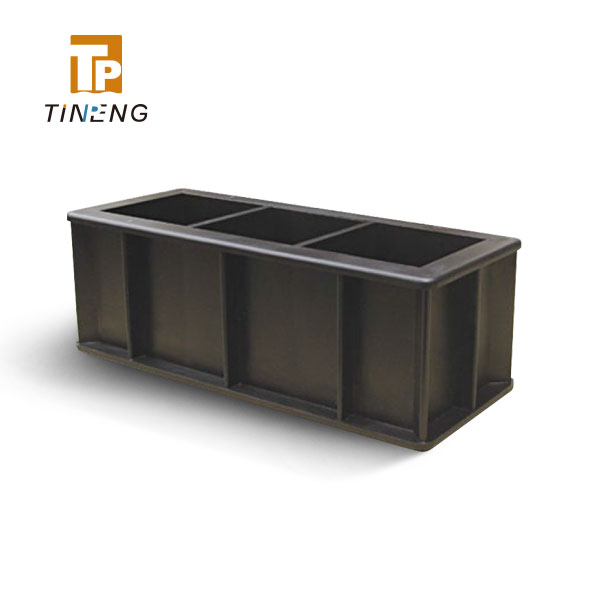

CM-GP SERIES PLASTIC THREE GANG MOULD

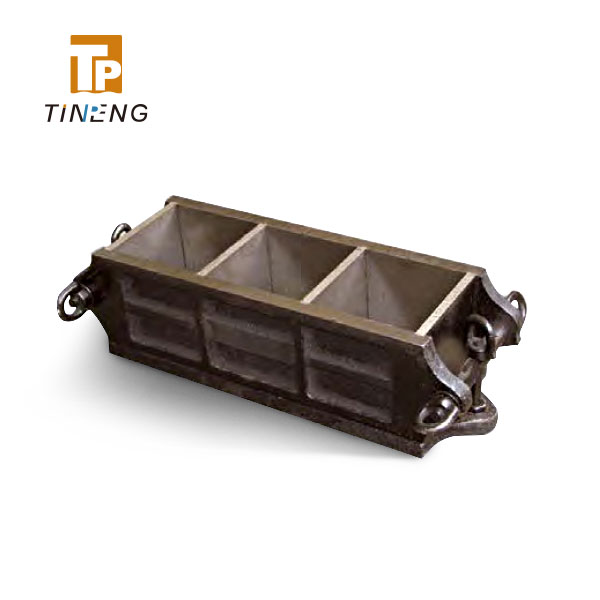

CM-GC CAST IRON THREE GANG MOULD

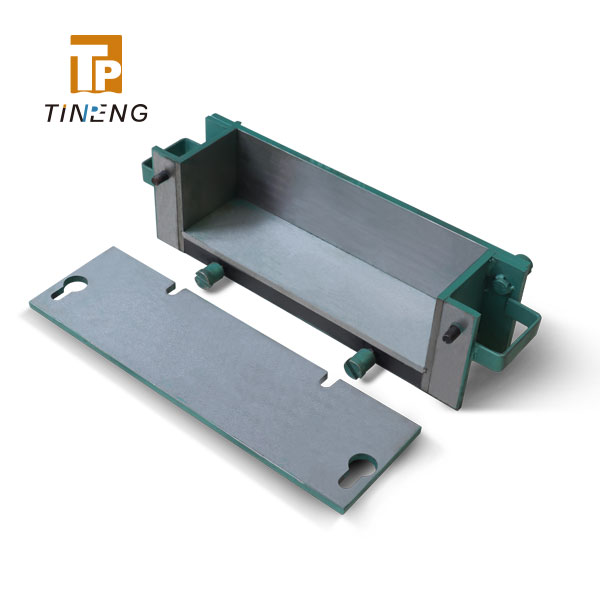

BM-S STEEL BEAM MOULD

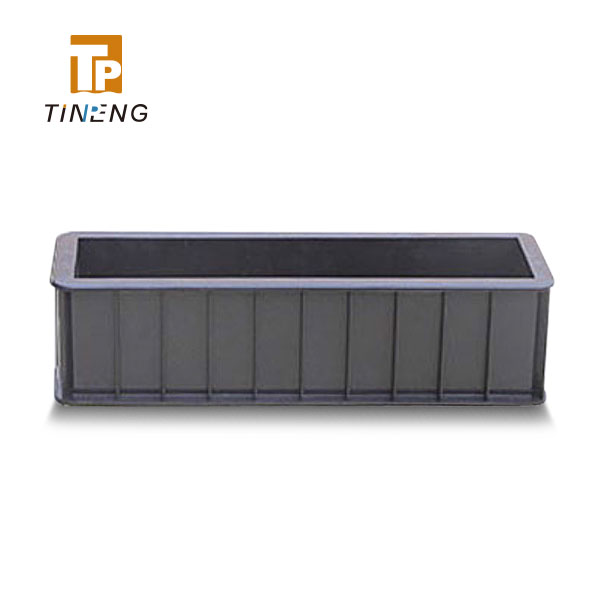

BM-P PLASTIC BEAM MOULD
TECHNICAL PARAMETERS
CM-GS STEEL THREE GANG MOULD
CM-GS40 40×40×40mm 2.5kg
CM-GS50 50×50×50mm 3.5kg
CM-GS70 70.7×70.7×70.7mm 7kg
CM-GP SERIES PLASTIC THREE GANG MOULD
CM-GP70 70.7×70.7×70.7mm 0.9kg
CM-GP100 100×100×100mm 1.3kg
CM-GC CAST IRON THREE GANG MOULD
CM-GC50 50×50×50mm 4kg
CM-GC70 70.7×70.7×70.7mm 7.5kg
CM-GC100 100×100×100mm 12.5kg
CM-GC150 150×150×150mm 32kg
BM-S STEEL BEAM MOULD
BM-S13 100×100×300mm 10kg
BM-S14 100×100×400mm 13kg
BM-S15 100×100×500mm 15kg
BM-S55 150×150×500mm 25kg
BM-S56 150×150×600mm 34kg
BM-S75 150×150×750mm 44kg
BM-P PLASTIC BEAM MOULD
BM-P13 100×100×300mm ABS plastic
BM-P14 100×100×400mm ABS plastic
BM-P53 150×150×300mm ABS plastic
BM-P55 150×150×550mm ABS plastic
