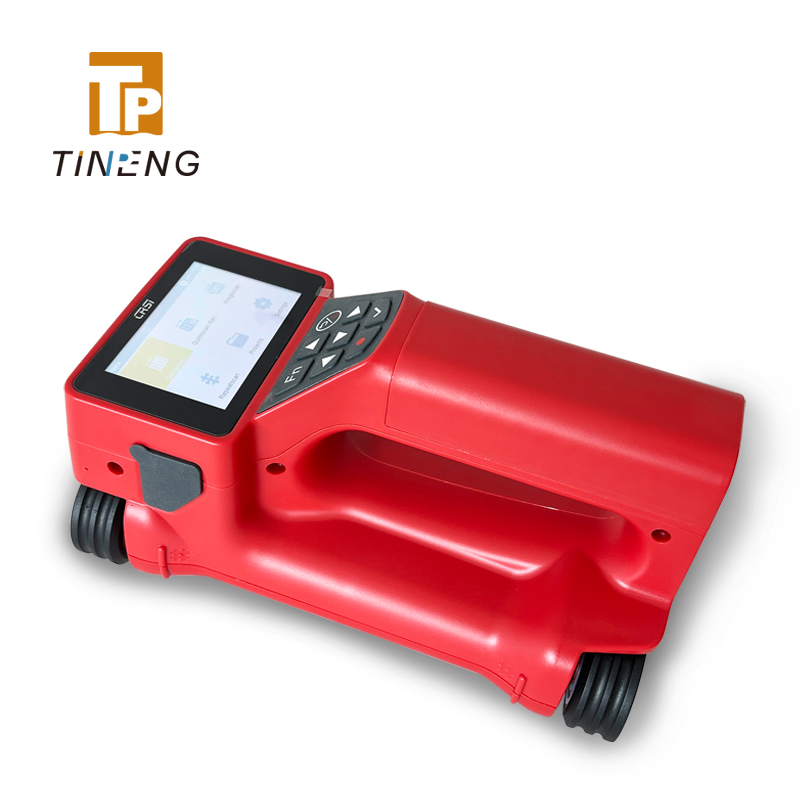

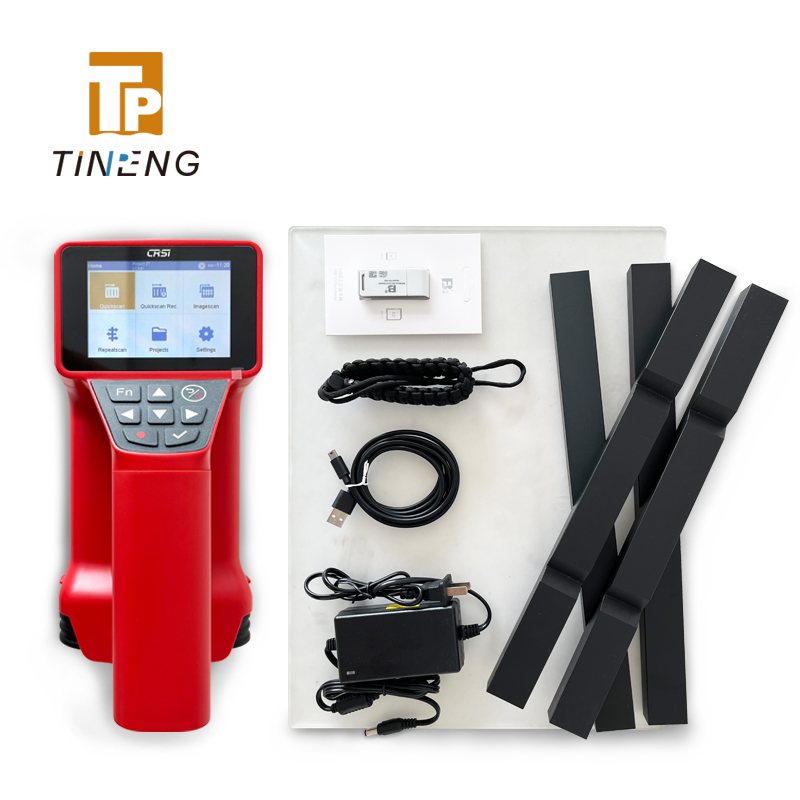

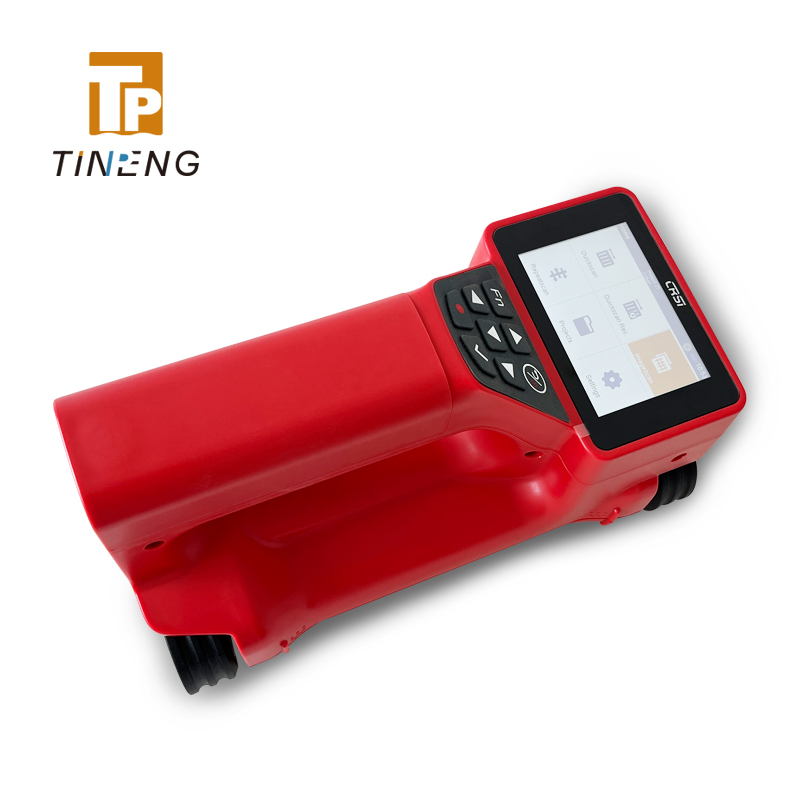

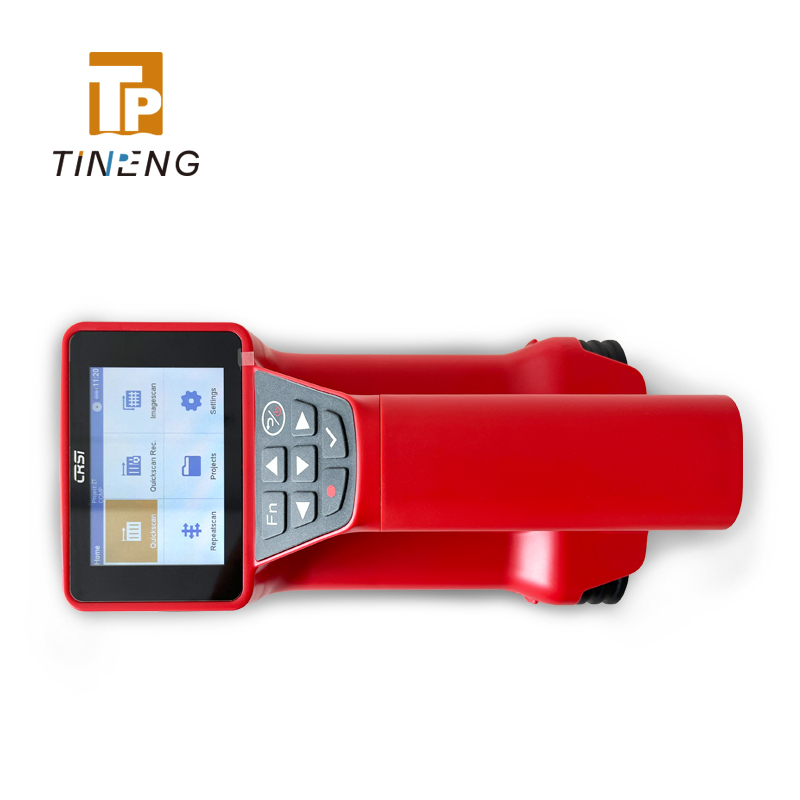

TP709
The model: TP709 can use images to truly present the distribution of steel bars and impurities inside the concrete structure, and test the number of steel bars inside the concrete structure, the thickness of the protective layer and the spacing of steel bars. The test is completely free from the influence of the hoop bars, and can test the inclined steel bars and dense steel bars.
The model: TP709 can use images to truly present the distribution of steel bars and impurities inside the con-crete structure, and test the number of steel bars inside the concrete structure, the thickness of the pro-tective layer and the spacing of steel bars. The test is completely free from the influence of the hoop bars, and can test the inclined steel bars and dense steel bars.
Features
· Integrated display provides rebar layout visuals in top view and sectional view for on-the-spot struc-tural analysis
· Smart algorithm helps accurate depth measure-ments for rebar
· Wide sensor area enables quick and easy scan over large areas
· Record scan data for documentation and structural analysis
TECHNICAL PARAMETERS
Image display: color shows the thickness of the protective layer of steel reinforcement, also showing the thickness of the protective layer of steel reinforcement, steel spacing
Test range of protective layer thickness: 0-210mm (the larger the diameter of reinforcement, the deeper the test depth)
Application range of reinforcement: dia.6~ 50mm Standard Rebar
Positioning accuracy: 1% or ±1mm
Maximum scanning distance: 50m, with real-time scanning and recording scanning functions
Statistical function: at any time display the specified channel steel bar position, protective layer thickness, deviation, qualified rate
Fixed point retest: 1~6 times, users can set at will, retest value list
Scanning area grid Settings: 600*600mm or 1200*1200mm optional
Regional scanning: Software can splice image scanning data
Filter range: 0~200mm, conducive to eliminate invalid data
Path selection function: 1~7 Optional
Component type: According to the state, all component types can be selected
Data storage capacity: not less than 32G (SD card can be expanded)
Data interface: USB (can be used as a card reader)
Data transmission rate: 4MB/s
Display type: 480X320 lattice TFT LCD, touch screen, capacitor screen
Power supply: battery working voltage 7.1~8.4V, battery life: 24 hours
Protection level: IP54
Weight: 1.2kg
Size (mm) : 240*132*135
Relative air humidity 90%
The operating temperature is -10~50ºC, and the storage temperature is 25~60 ºC
