SM series

The slump cone test set is carried out by filling the slump cone with freshly mixed concrete which is tamped with a steel rod in three layers. The concrete is levelled off with the top of the slump cone, the cone removed, and the slump of the sample is immediately measured.

We propose two different models: the standard one particularly suitable for laboratory testing and the portable model very practical for site testing shown as below.
Each component of the kits can be ordered separately.
The user can personalize the kit composition for the Slump Cone test.

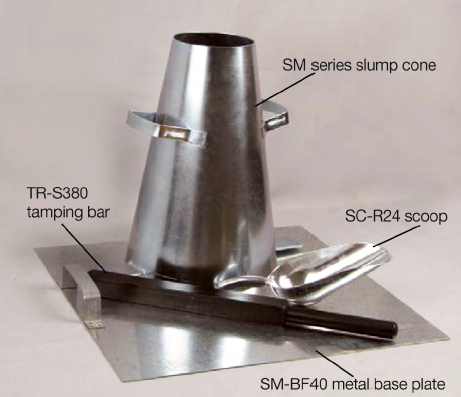

Standard:

SM series Slump cone
SM-R3 Steel rule 300 mm long
SM-R5 steel rule 500 mm long (user selectable)
SM-BF40 Metal base plate 400x400x1.5 mm galvanized, with one handle.
SC-R24 Scoop
TR-S600 Steel tamping rod, dia.16x600 mm
TR-S380 Metal tamping bar,25x380 mm long (optional)

Portable:

SM series slump cone
SM-BP/C Metal base plate with clamps and measuring bridge
SC-R24 Scoop
TR-S600 Steel tamping rod, dia. 16*600mm

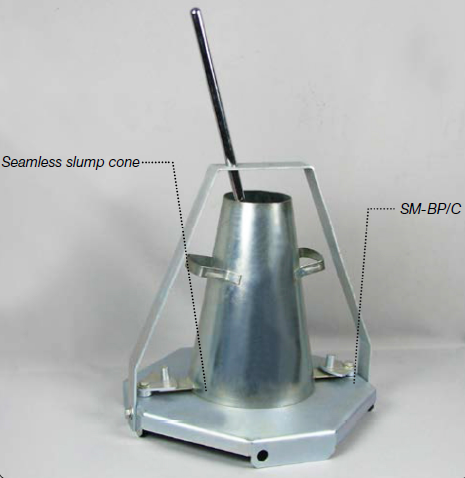

Portable slump cone test set complete with metal base plate SM-BP/C and TR-S600 tamping rod. Clamps on the base hold the cone for filling and tamping. After the cone is removed, the handle raises over the specimen and the slump is measured using a 22 cm scale engraved in 1 cm increments on the end of the rod. The set of components are fitted together for easy carrying.

SM series slump cone

SM-ES 100x200x300mm 2.0kg Seamless spun steel
SM-EG 100x200x300mm 2.0kg Galvanized
SM-EP 100x200x300mm 2.0kg Blue
SM-EB 100x200x300mm 2.0kg Black
SM-LG 100x200x300mm 3.0kg Galvanized
SM-PL 100x200x300mm 0.7kg ABS plastic with funnel
SM-HS 100x200x300mm 1.5kg S/S

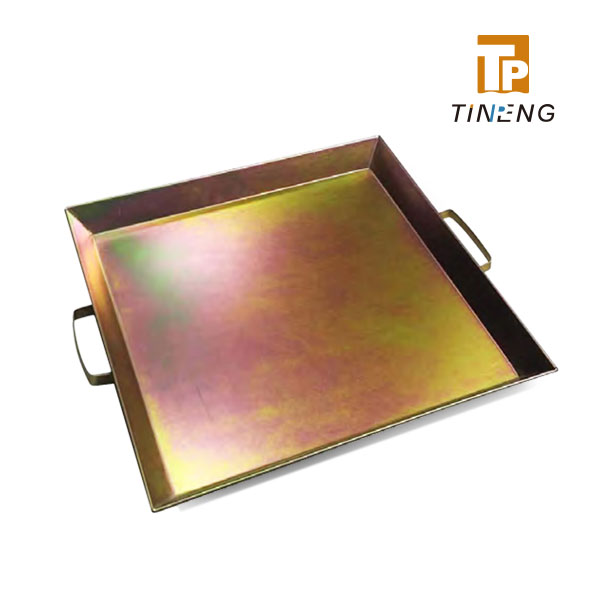

Slump Base Plate

SM-BP40 400x400x40 deep  Galvanized, with two handles
SM-BP60 600x400x4 thickness  Galvanized, with two handles
SM-BP75 750x750x2 thickness  Galvanized, with two handles
SM-BF40 400x400x1.5 thickness  Galvanized, with one handle
SM-BF60 600x400x1.5 thickness  Galvanized, with one handle
SM-BP/C 355x355x2 deep 400mm Height handle  Galvanized, with clamps and measuring bridge

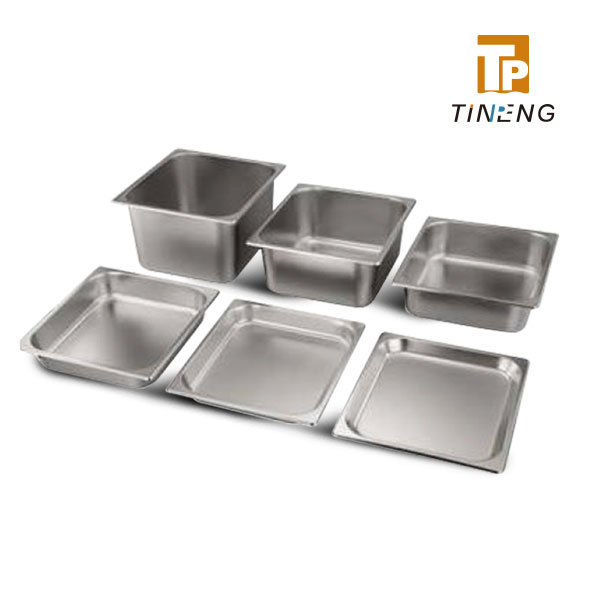

Stainless steel base plate

WL623-208T 353x325x200mm deep  0.8kg
WL623-158T 353x325x150mm deep  0.8kg
WL623-108T 353x325x100mm deep  0.8kg
WL623-68T 353x325x65mm deep  0.8kg
WL623-48T 353x325x40mm deep  0.8kg

Brochure.pdf

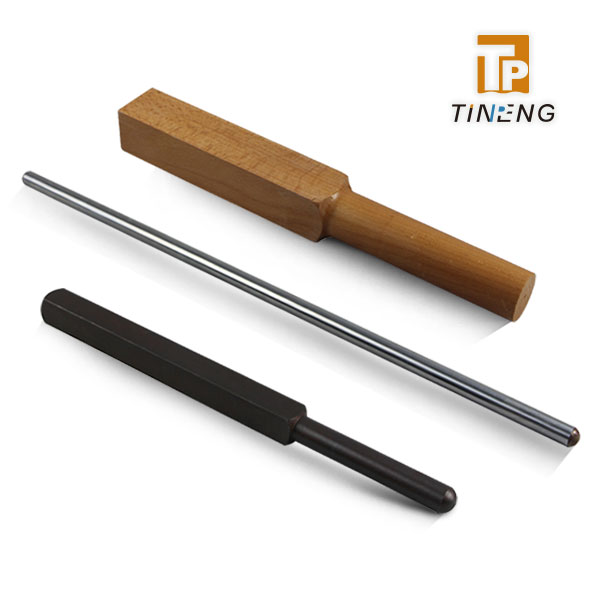

Tamping rod

54-C0151/2 Wooden tamping rod
TR-S600 Steel tamping rod dia.16x600mm
TR-S380 Metal tamping bar 25x380mm long

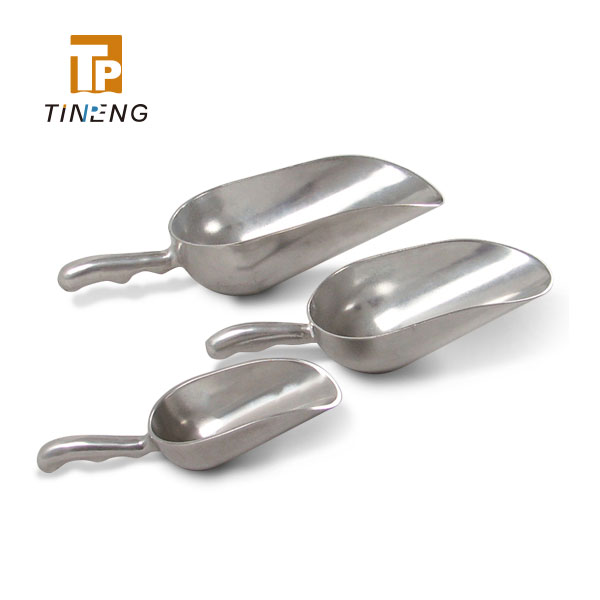

SC series scoop

Material: Stainless steel, Aluminium
SC-R06 6oz 78g 190mm long
SC-R12 12oz 120g 220mm long
SC-R24 24oz 210g 270mm long
SC-R38 38oz 300g 310mm long
SC-R58 58oz 440g 380mm long
SC-R85 85oz 525g 415mm long
SC-F12 12oz 115g 220mm long
SC-F24 24oz 210g 270mm long
SC-F38 38oz 300g 310mm long
SC-F58 58oz 440g 380mm long
SC-F85 85oz 525g 415mm long

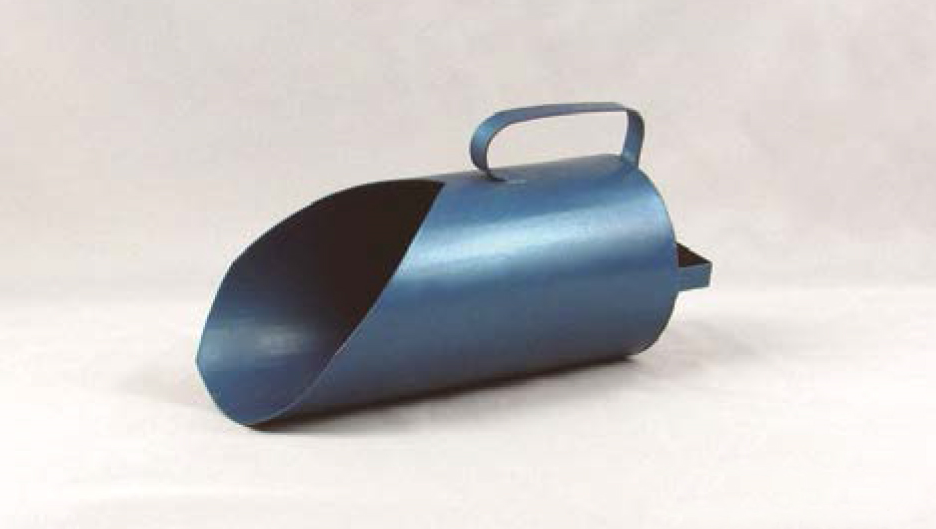

SC-M Metal scoop

125 mm dia. x 250 mm long, 5 kg capacity. Ideal for taking increments of concrete.

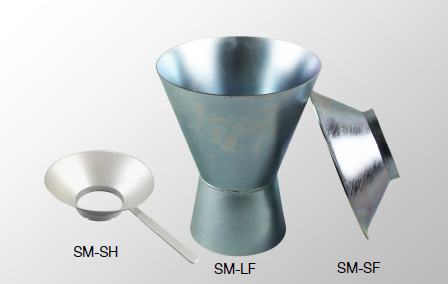

Slump funnel

SM-SH
SM-LF
SM-SF
