TP-DPM30

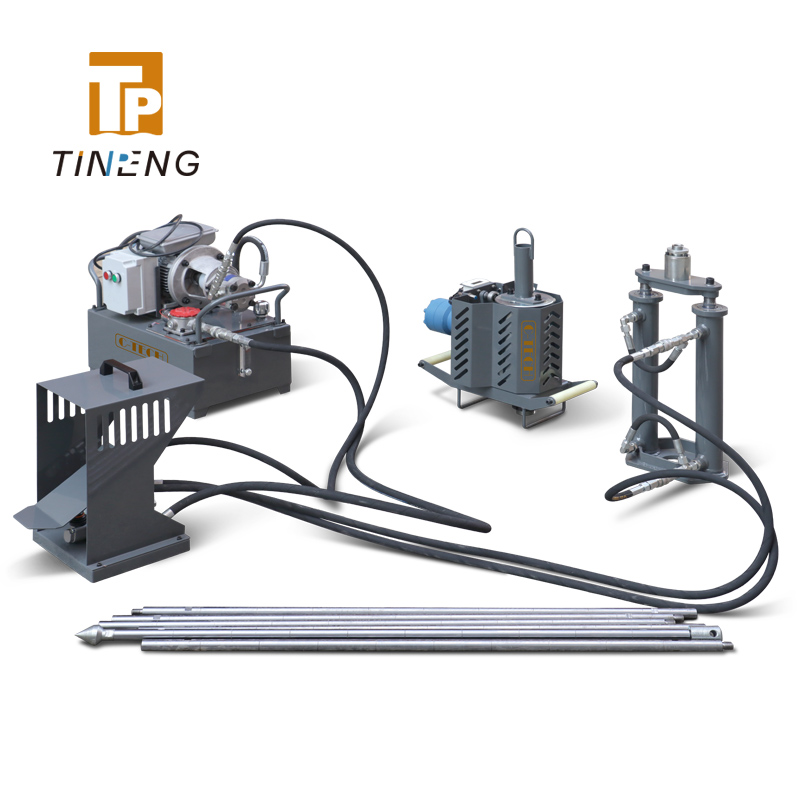

The TP-DPM30 can be used not only for dynamic penetration tests, but also for soil sampling with limited disturbance. Its small size enables it to be used on sites that are inaccessible to normal machines. A hydraulic extractor is used to extract rods, casing tubes and samplers. The penetrometer is controlled via a pedal-operated distributor. The hydraulic connections on the various components use quick connectors. The penetrometer is equipped with a 30 kg hammer with a 200 mm stroke, operated by a hydraulic motor and driven by a motor-pump unit.
The TP-DPM30 can be used not only for dynamic penetration tests, but also for soil sampling with limited disturbance. Its small size enables it to be used on sites that are inaccessible to normal machines. A hydraulic extractor is used to extract rods, casing tubes and samplers. The penetrometer is controlled via a pedal-operated distributor. The hydraulic connections on the various components use quick connectors. The penetrometer is equipped with a 30 kg hammer with a 200 mm stroke, operated by a hydraulic motor and driven by a motor-pump unit.
TECHNICAL PARAMETERS
Power: 220V 50Hz, 1.5kw
Hydraulic flow: 5.6L, pressure 16Mpa
Hydraulic oil tank capacity: 25L
Hammer: 20kg/30kg
Drop height: 200mm
Rods: Dia.20mm, length 1m, weight 2.4kg/pc
Cone: Dia.35.6, angle 60°, area 10cm²
Extractor: 6T, stroke 300mm
Total weight: 140kg
