Leeb320/321/322

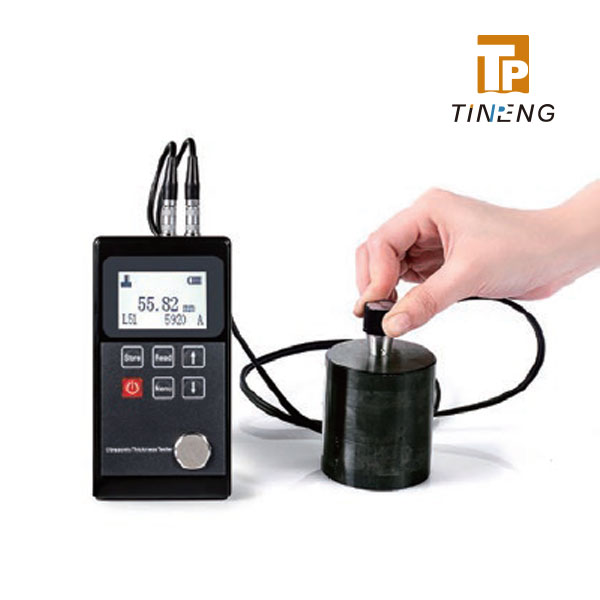

Ultrasonic Thickness Gauge is designed for measuring the thickness of metallic (cast iron, steel, and aluminum and etc) and non-metallic (ceramics, plastics, glass and etc) substrates and any other ultrasonic wave-conductor provided it has relatively parallel top and bottom surfaces.
Ultrasonic Thickness Gauge is designed for measuring the thickness of metallic (cast iron, steel, and aluminum and etc) and non-metallic (ceramics, plastics, glass and etc) substrates and any other ultrasonic wave-conductor provided it has relatively parallel top and bottom surfaces.
Function & feature
· Integrated with a 4mm calibration block.
· Two display units: mm and inch.
· With coupling indication.
· Measuring sound velocity: according to the known thickness of the object, sound velocity of it can be measured directly.
Measuring materials
Adapted to all kinds of materials which are good conductor of ultrasonic wave, such as metals (steel, cast iron, aluminum, copper and etc), plastic, ceramics, composites, epoxies, glass and etc.
TECHNICAL PARAMETERS
Leeb320
Measuring range(mm): 0.7~300 ( depends on the probe & material)
Resolution(mm): 0.1
Accuracy(mm): ±(1%H+0.1), H refers to the thickness of testing piece
Velocity range(m/s): 5920
Storage: No
Shell: Plastic
Operating Temperature: -10°C~60°C
Dampness: 20%~90%
Dimensions(mm): 130×70×25
Power supply: AAA alkaline batteries
Weight (g): 200g
Leeb321
Measuring range(mm): 0.7~300 ( depends on the probe & material)
Resolution(mm): 0.1
Accuracy(mm): ±(1%H+0.1), H refers to the thickness of testing piece
Velocity range(m/s): 1000~9999
Storage: No
Shell: Plastic
Operating Temperature: -10°C~60°C
Dampness: 20%~90%
Dimensions(mm): 130×70×25
Power supply: AAA alkaline batteries
Weight (g): 200g
Leeb322
Measuring range(mm): 0.7~300 ( depends on the probe & material)
Resolution(mm): 0.01
Accuracy(mm): ±(0.5%H+0.1), H refers to the thickness of testing piece
Velocity range(m/s): 1000~9999
Storage: 500 groups
Shell: Plastic
Operating Temperature: -10°C~60°C
Dampness: 20%~90%
Dimensions(mm): 130×70×25
Power supply: AAA alkaline batteries
Weight (g): 200g

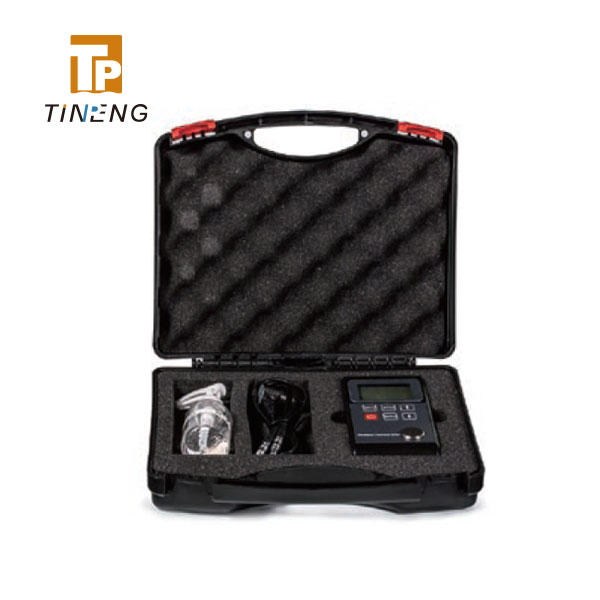

Main unit 1
Coupling agent 1
Standard probe L51 (5P Ø10) 1
AAA alkaline battery 2
Users' Manual 1
Packing list 1
Optional accessories
L51 Parameter: 5P Ø10 Measuring Range(mm): 1-250 (steel) Temperature: -10°C~60°C Features: Standard probe for Normal test
KK Parameter: 5P Ø10 Measuring Range(mm): 1-350 (steel) Temperature: -10°C~60°C Features: Large range for Normal test
L77 Parameter: 7P Ø6 Measuring Range(mm): 0.75-50 (steel) Temperature: -10°C~60°C Features: For thin, arc surface
LZ2 Parameter: 2P Ø22 Measuring Range(mm): 2.5-350 (steel) Temperature: -10°C~60°C Features: For cast &rough surface
LG5 Parameter: 5P Ø14 Measuring Range(mm): 2.0-100 (steel) Temperature: -10°C~500°C Features: For high temperature material
