TPD-Q20(S)

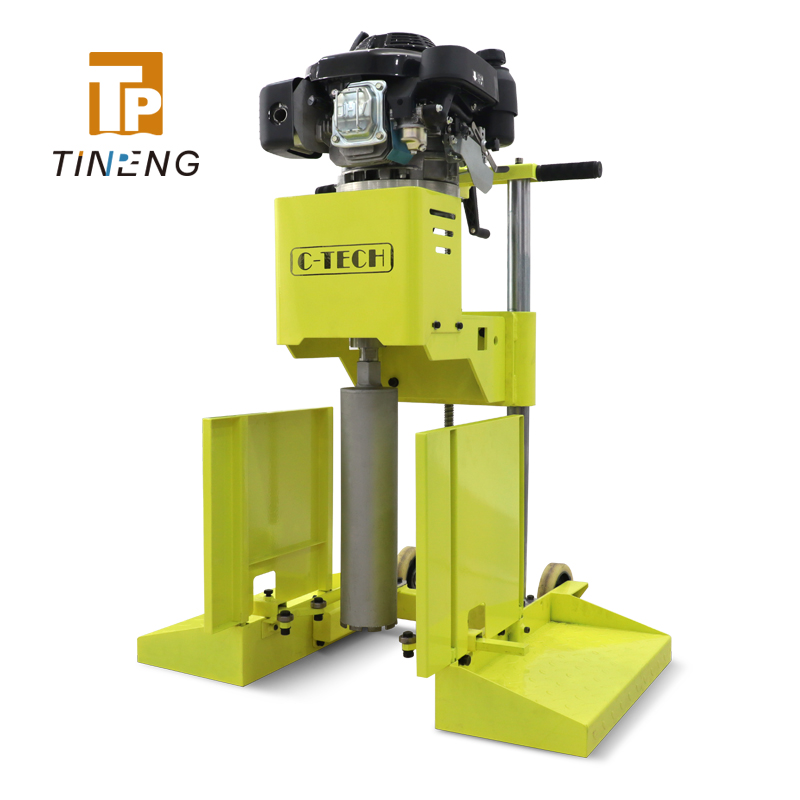

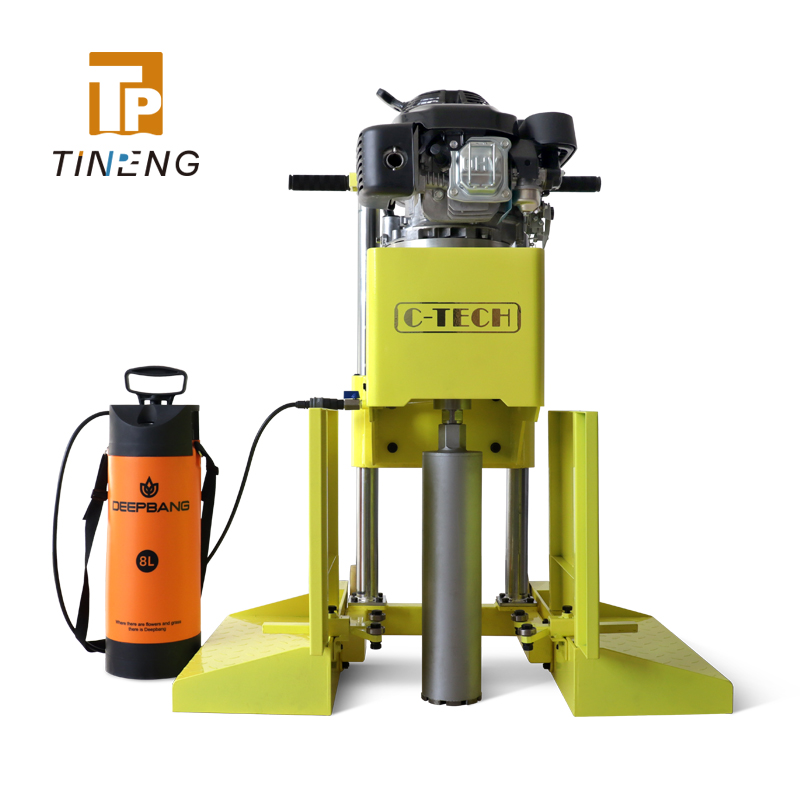

TPD-Q20(S) is a robust, compact, portable and reliable equipment for taking core samples from roads or installing barrier posts and different kind of bollards. The twin column drill stand with road bases makes it is stable to work; equipped with ball screws for easier and smoother lifting; and the wheels at the bottom make it easy to move.
TPD-Q20(S) is a robust, compact, portable and reliable equipment for taking core samples from roads or installing barrier posts and different kind of bollards. The twin column drill stand with road bases makes it is stable to work; equipped with ball screws for easier and smoother lifting; and the wheels at the bottom make it easy to move.
APPLICATIONS
Core sampling in asphalt and concrete pavements
Coring out of gate valves
Coring to place barrier posts or different types of bollards
Coring for airfield lightning
Coring to place crash barriers or fences
TECHNICAL PARAMETERS
Motor: Honda GXV160
Power: 4.0 kW (5.5 HP) / 3600 rpm 4-stroke
RPM: 550-950rpm/min
Drilling stroke: 600mm
Drill bit diameter: 70-300mm
Drill bit connection: 1-1/4 -7UNC

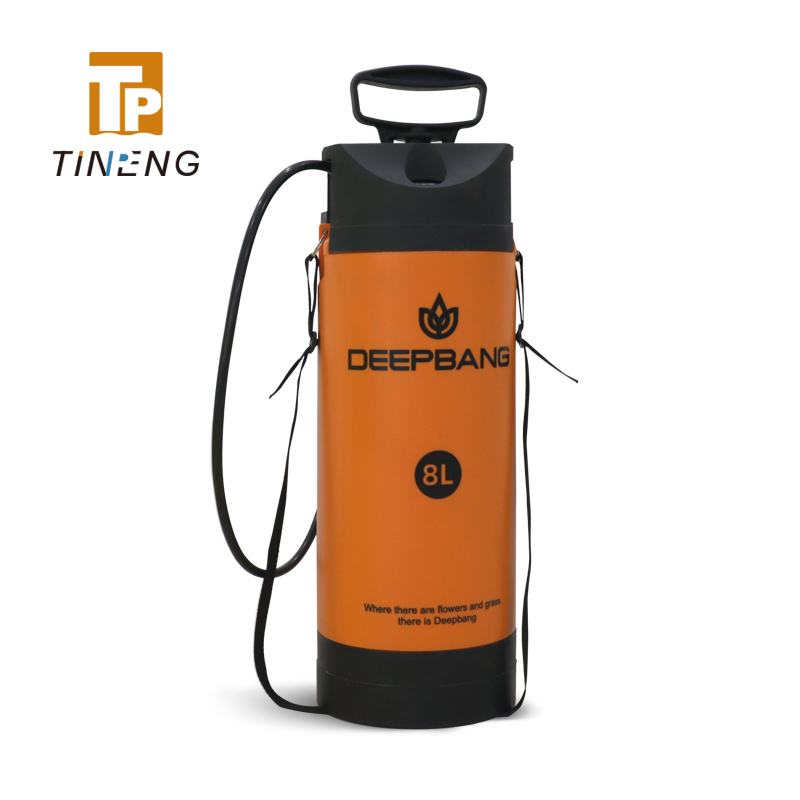

Water tank: 8L
Dimensions: 750*900*990mm
Weight: 85kg
