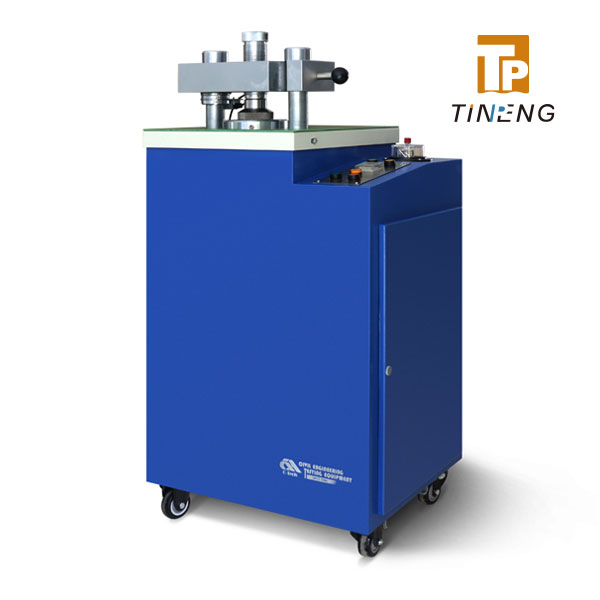

ZHY series

For efficient Preparation of PELLETS.
Most suitable for “XRF” "XRD" and "AA" analysis sample preparation.

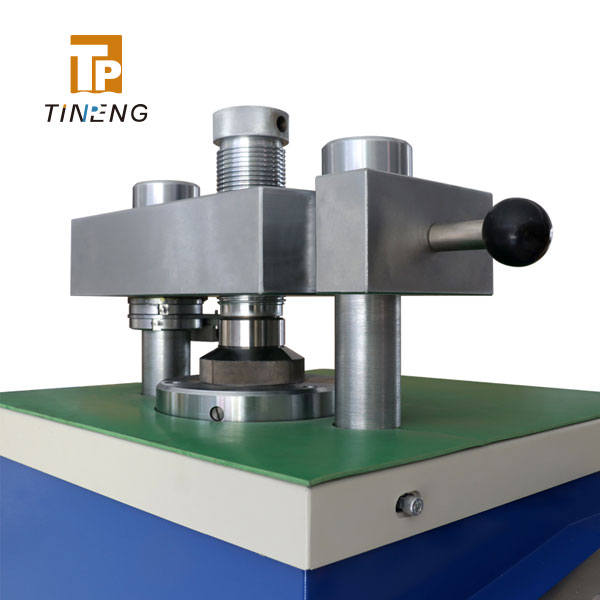

After introducing the powdered sample material into the ring by means of a funnel, the sample holder is moved to the pressing position in the press tool.
The operator starts the press cycle by choosing processing programs where all pressing parameters are widely adjustable.
When the pressing cycle has fi nished, the tablet is transferred to the sample output/fi lling position.

FEATURES
• It adopts all kinds of methods to press samples, such as boric acid, steel ring, aluminium cup and plastic ring.
• Its electric control part is the SIMENSE PLC, and so operation is more simplifi ed and convenient, performance is more stable and reliable.
• With specific programs of slow pressurization and slow mould-release, the products are favorable to ensure acceptance rate of sample-press, improve sample quality of sample-press.
• Use exclusive stainless steel mould to prolong service life of press tools.
• One year warrantee against any manufacturing defects.

MODELS
• ZHY-401B with max load 400 KN(40 Tons)
• ZHY-601B with max load 600 KN(60 Tons)

TECHNICAL PARAMETERS

Sample material: Various minerals, slags, ores, cements, raw materials etc.
Press tool: Boric acid cup, aluminum cup, steel ring, plastic ring, and low-pressure polythene
Interval between columns: 220mm
Maximum stroke: 100mm
Holding-pressure time: 0~999 seconds
Control circuit: PLC
Rated load: 1.3 KW
Power supply: AC380V±10%, 50HZ, 3-phace+Earth
Weight and Dimension: ZHY-401B Weight: 330kg Dimension: 600×500×1150mm, ZHY-601B Weight: 400kg Dimension: 660×530×1180mm

Various press tools are available for different die sets (ring or cup).

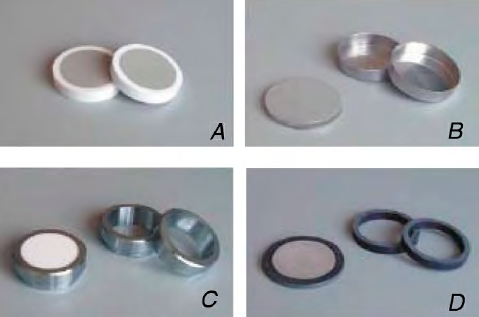

Die sets:
• Type A Pellet with Boric acid cup mould dia. 40mm
• Type B Pellet with Aluminum cup mould dia. 40mm
• Type C Pellet with Steel ring dia. 40mm
• Type D Pellet with Plastic ring dia. 40mm
