CTM-01

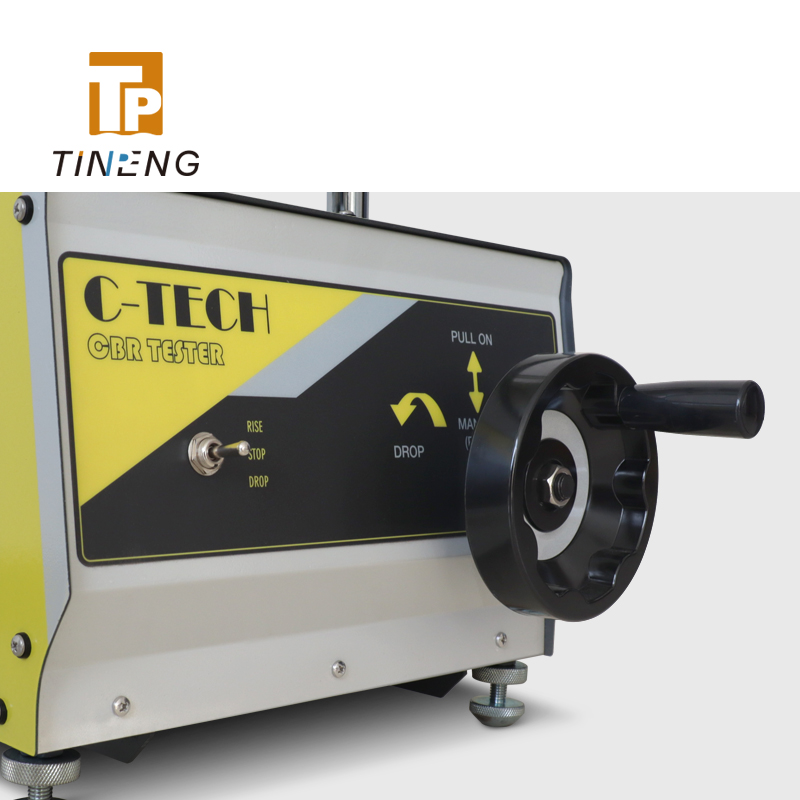

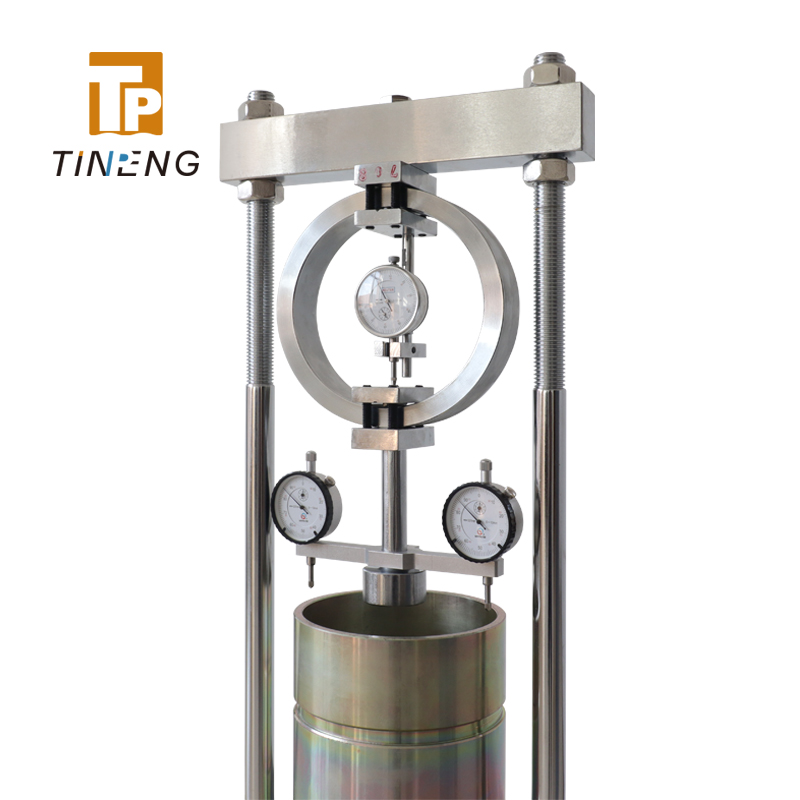

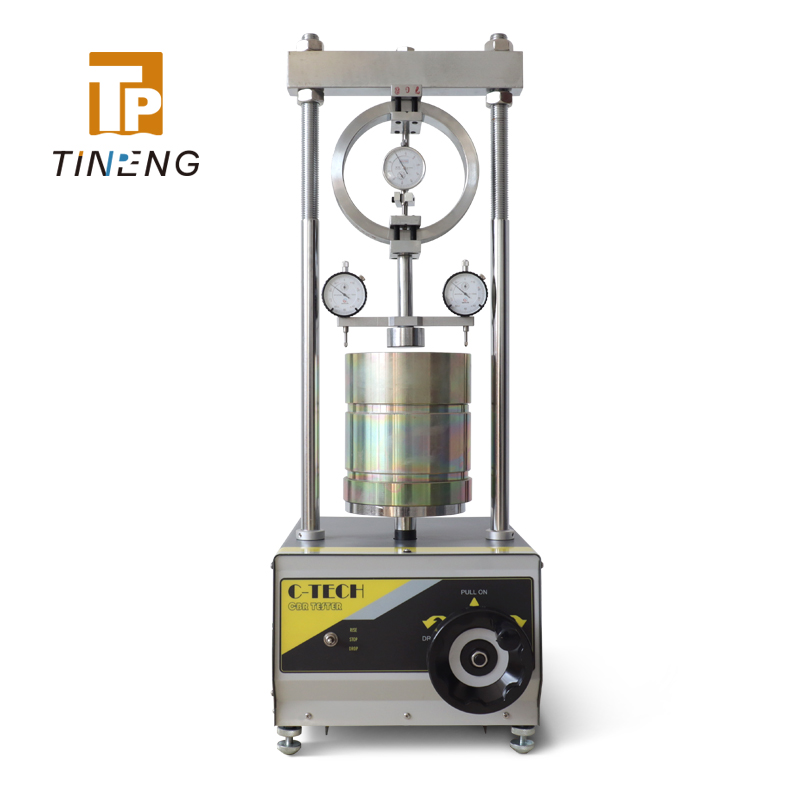

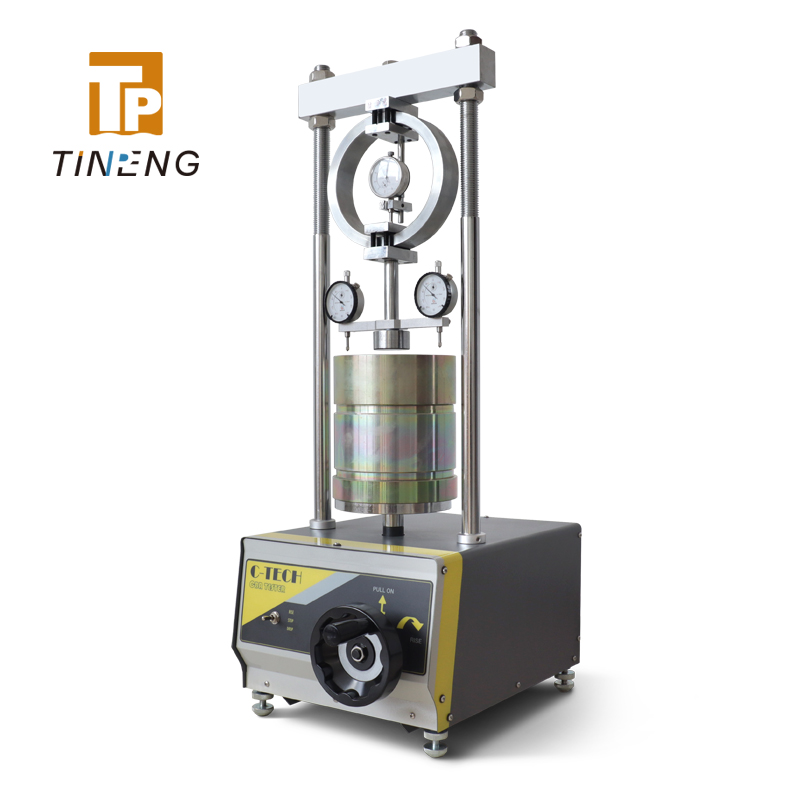

The manual CBR test machine CTM-01 is designed for laboratory CBR test to evaluate the strength of soil subgrades and base course materials (the particle size of the soil is less than 40mm). It consists of a two column frame with adjustable upper beam, proving ring, penetration bar, loading plate.
Dial indicators for CTM-01 need to be ordered separately.
STANDARD
- BS 1377, 1924
- EN 13286-47
- ASTM D1883
- AASHTO T193
Get Wholesale Price
The manual CBR test machine CTM-01 is designed for laboratory CBR test to evaluate the strength of soil subgrades and base course materials (the particle size of the soil is less than 40mm). It consists of a two column frame with adjustable upper beam, proving ring, penetration bar, loading plate.
Dial indicators for CTM-01 need to be ordered separately.
TECHNICAL PARAMETERS
Capacity: 30 KN/50KN (selectable)
Load speed: 1.0 mm/min
Penetration rod: End diameter 50 mm
Platen: Dia. 170 mm
Platen stroke: 50 mm
Test mould: Dia. 152 mm x 177.8 mm
Dimensions: 34 x 50 x 88 cm
Power: 380 V, 50 Hz, 150W
Weight: 82 Kg
34-T0093 Dial gauge tripod
34-T0092/A Aluminium swell plate
34-T0092/B Brass swell plate
34-T0095/B Split surcharge weight 2 kg, 2.27 kg selectable
Above accessories order separately.
