CTM-02

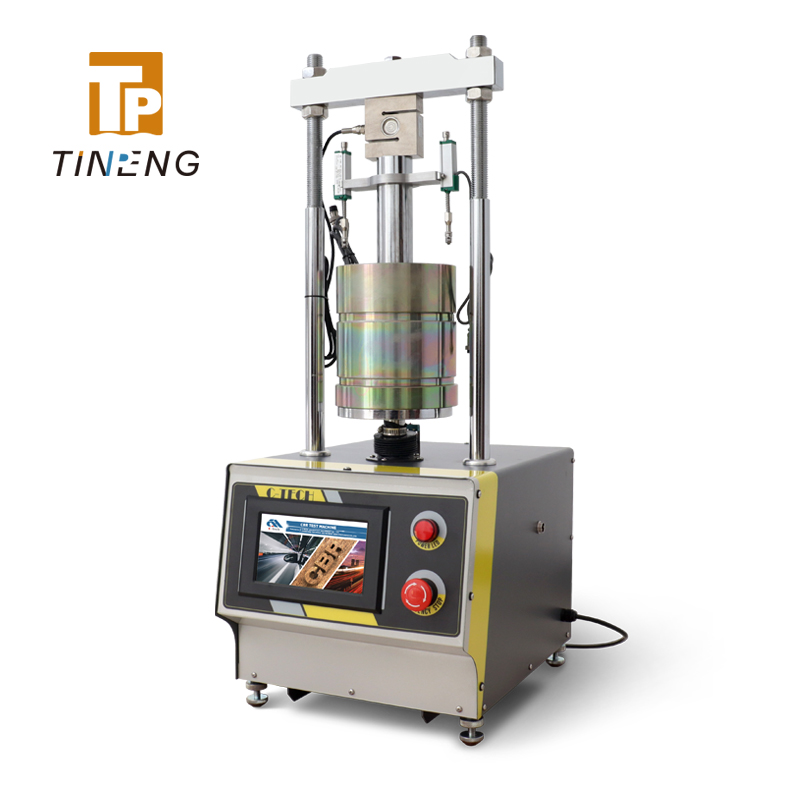

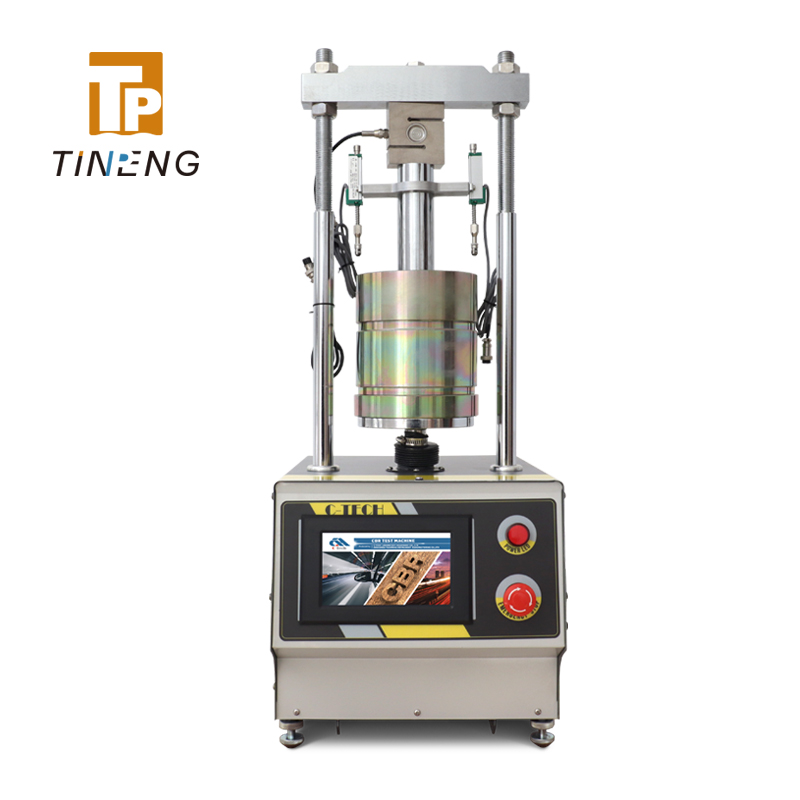

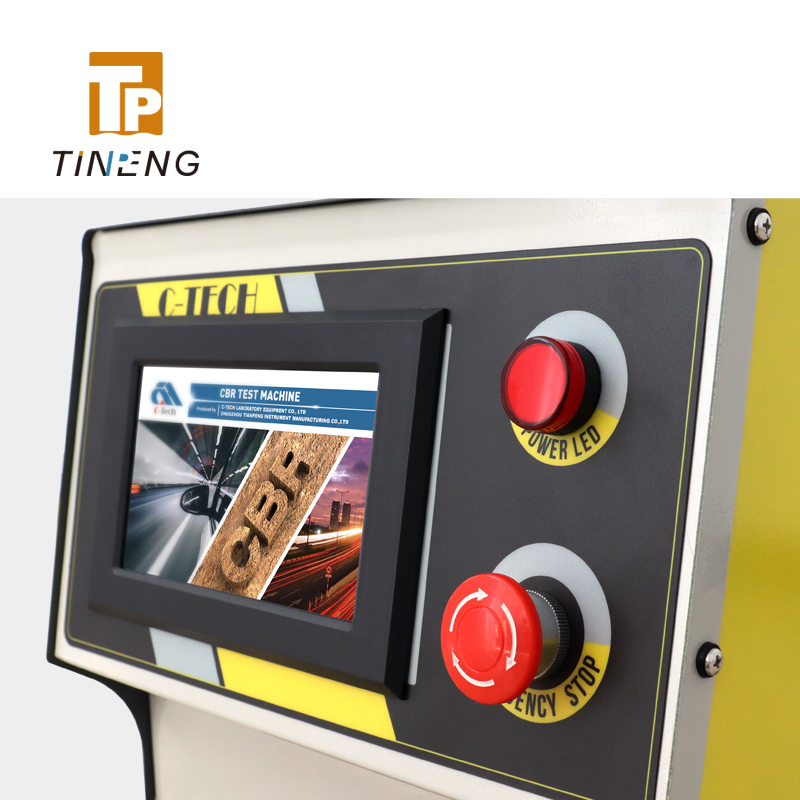

The automatic CBR test machine CTM-02 is designed for laboratory CBR test to evaluate the strength of soil subgrades and base course materials (the particle size of the soil is less than 40mm). Servo motor control makes the test process more stable. And the 7-inch touch screen displays test parameters and data, making operation easier.
STANDARD
- BS 1377, 1924
- EN 13286-47
- ASTM D1883
- AASHTO T193
Get Wholesale Price
The automatic CBR test machine CTM-02 is designed for laboratory CBR test to evaluate the strength of soil subgrades and base course materials (the particle size of the soil is less than 40mm). Servo motor control makes the test process more stable. And the 7-inch touch screen displays test parameters and data, making operation easier.
TECHNICAL PARAMETERS
Maximum load: 50 KN
Precision: 0.001KN
Load speed: 1-5 mm/min

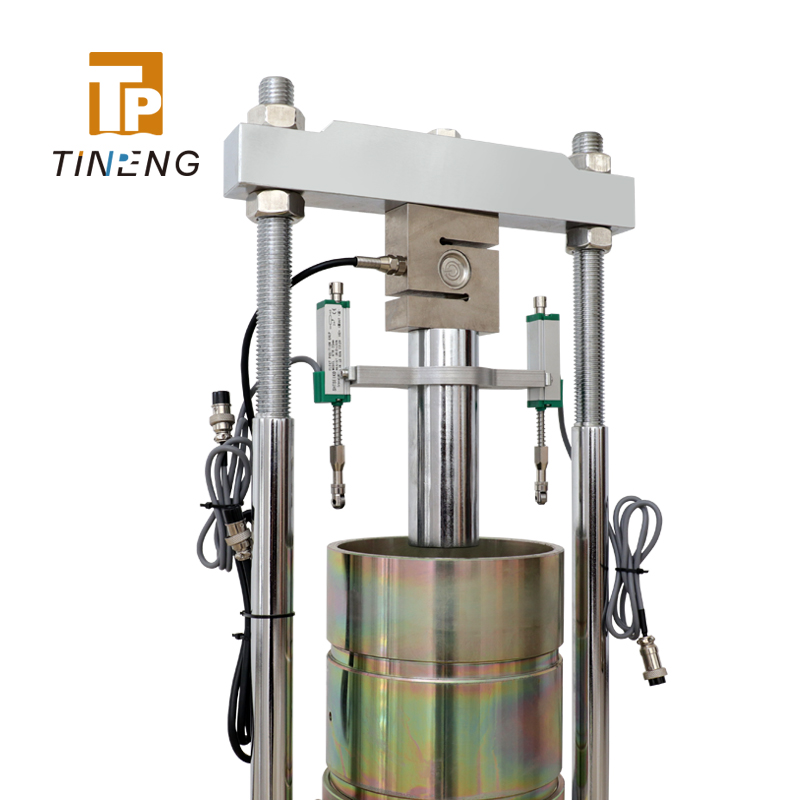

Penetration rod: End diameter 50 mm
Test mould: Dia. 152 mm x 177.8 mm
Displacement sensor: 0-25mm, division: 0.01mm, linearity: 0.3%
Dimensions: 34 x 45 x 88 cm
Power: 220V,50Hz,500W
Weight: Net weight 88kg, gross weight 105kg
34-T0093 Dial gauge tripod
34-T0092/A Aluminium swell plate
34-T0092/B Brass swell plate
34-T0095/B Split surcharge weight 2 kg, 2.27 kg selectable
Above accessories order separately.
