TP-RD001

It is used to measure the luminous intensity coefficient of rectangular raised pavement markers. It is mainly used in photometric laboratories, testing centers, and highway construction sites; it is also suitable for the quality inspection of products in raised pavement marker manufacturers.
   Features
   -5-inch color LCD touchscreen, bilingual (Chinese and English), simultaneous display of temperature and humidity;
   -Data storage: Stores 500 sets of test data at a time;
   -With parameter validation, automatic zeroing, data storage, export, deletion, and query functions;

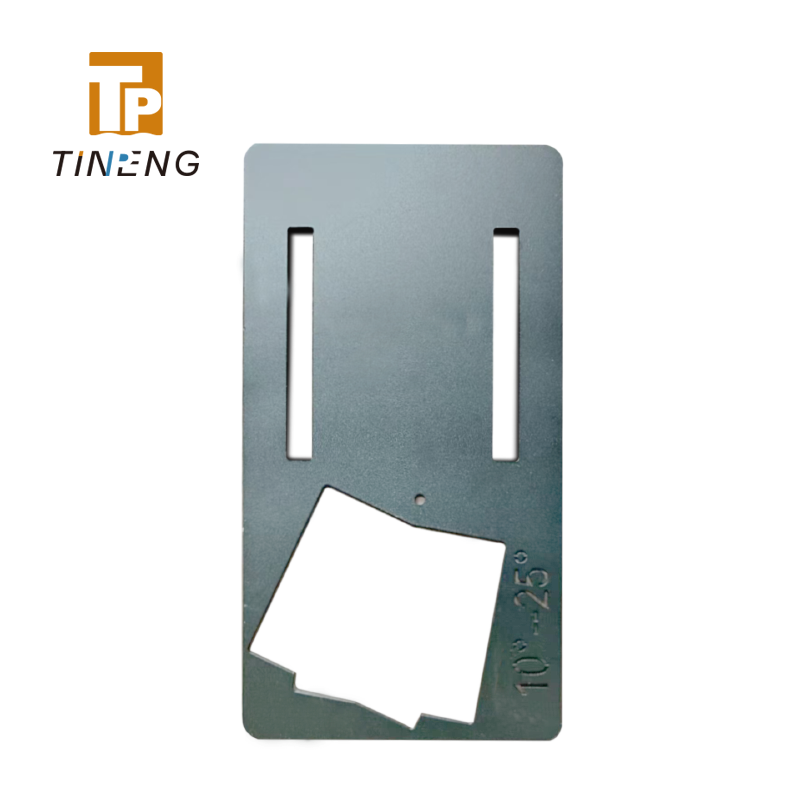

   -Equipped with a perforated angle auxiliary plate for precise positioning of the incident angle, eliminating the need for manual adjustment of the incident and observation angles;
   -The observation angle automatically matches the incident angle;
   -Supports both indoor and outdoor use;
   -Multiple angles can be calibrated in one time.


Technical specifications
   Incident angle:0°, ±5°, ±10°, ±15°, ±20°
   Observation angle:0.2°, 0.33°, 1.0°, 2.0°, 0.2°
   Measurement item:Luminous intensity coefficient mcd·lx^-1
   Measurement range:0-4000
   Light source color temperature:2856±50k
   Indication error:5%
   Battery life:>30h    Data storage capacity:Stores 500 sets of test data at a time
   Battery:12V/5.2Ah
   Charger:DC 15V
   Ambient temperature:-15℃~60℃
   Ambient humidity:<98% No condensation
   Dimensions:330×220×100mm
   Net weight:5.5kg

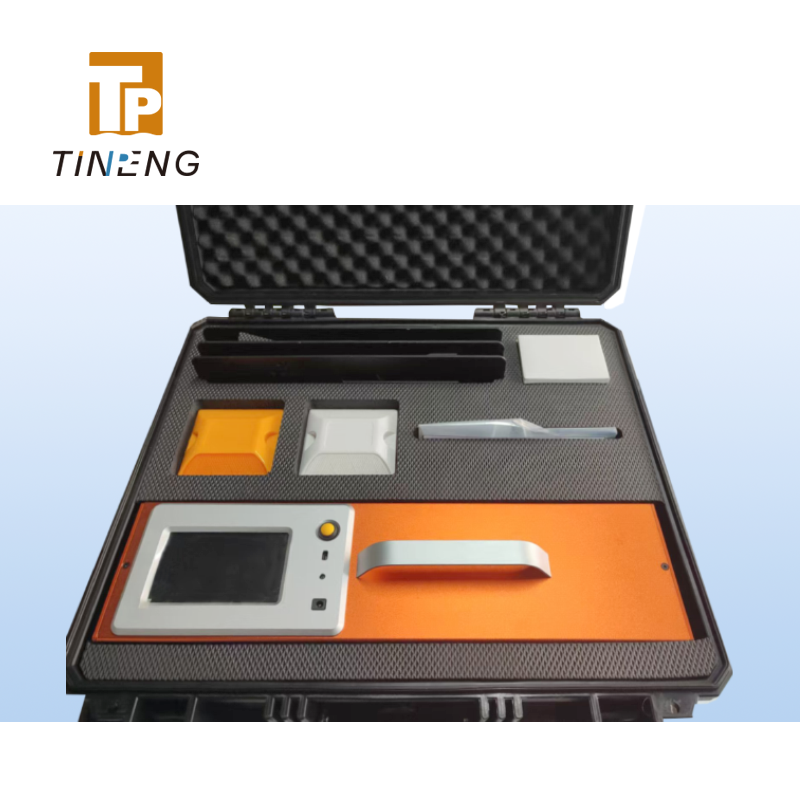

   Packing:Shockproof instrument case

Raised pavement marker retroreflectometer .pdf
